Description
Key Features and Benefits of the Controller

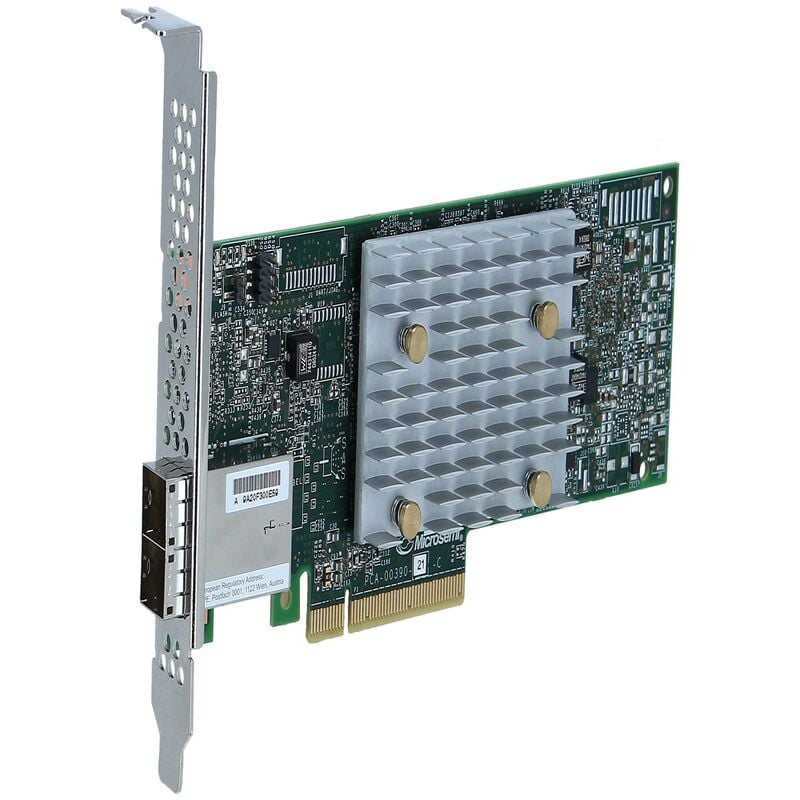

The 836267-001 HPE Smart Array 8 External 12Gbps SAS PCIe Plug-in Controller is a storage controller designed to support high-performance, external storage devices. Some key features and benefits of this controller include:
- High-speed connectivity: The controller supports 12Gbps SAS connectivity, which provides high data transfer rates for faster performance.
- External storage support: The controller is designed to support external storage devices, which can provide more flexibility for expanding storage capacity and improving overall performance.
- Scalability: The controller supports up to 8 external SAS or SATA drives, providing the ability to scale up storage capacity as needed.
- RAID support: The controller supports various RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, which can provide improved data protection and redundancy.
- Data security: The controller features advanced security features, such as secure boot and drive erase, which can help ensure the security of sensitive data.
- Compatibility: The controller is compatible with various operating systems, including Microsoft Windows, Linux, VMware, and others, making it suitable for use in a wide range of environments.
Performance Metrics for the HPE Smart Array 8 External 12Gbps SAS PCIe
The 836267-001 HPE Smart Array 8 External 12Gbps SAS PCIe Plug-In Controller is designed to provide high-performance storage connectivity for HPE ProLiant servers. The controller is designed to support up to eight external SAS or SATA drives, with a maximum transfer rate of 12Gbps per lane.
The controller features an x8 PCIe 3.0 interface, which provides high-speed data transfer and low latency. It also features a built-in 4GB DDR4 SDRAM cache memory, which helps to improve overall system performance by reducing I/O bottlenecks.
In terms of RAID functionality, the controller supports various RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60. It also features advanced data protection features, such as online RAID level migration and online capacity expansion, which allow for easy management and expansion of storage arrays.
The controller is compatible with various operating systems, including Microsoft Windows, Linux, and VMware. It is also designed to be easy to install and use, with a web-based GUI and a command-line interface for advanced management.
Management and Monitoring of the Controller
The HPE Smart Array 8 External 12Gbps SAS PCIe Plug-in Controller, with part number 836267-001, can be managed and monitored using HPE Smart Storage Administrator (HPE SSA) software. HPE SSA provides a single interface to manage and monitor HPE Smart Array controllers and other HPE storage devices, including HDDs and SSDs.
HPE SSA can be used to configure RAID levels, create and delete logical drives, monitor drive and controller health, and view system and storage device information. It can be accessed through a web-based GUI or a command-line interface.
In addition, the controller supports HPE SmartCache, which is a feature that uses SSDs as cache to improve performance. HPE SmartCache can also be configured and managed through HPE SSA.
The controller is also compatible with HPE Integrated Lights-Out (iLO), which is a remote management interface for HPE servers. iLO can be used to remotely monitor and manage the server and its components, including the Smart Array controller.
General Information about this HPE 836267-001
- Manufacturer: HPE
- Part Number or SKU# 836267-001
- Product Type : Controller
- Product Category : SAS-SATA
Technical Information of PCI-E Controller Adapter
- 12GB/s SAS Per Lane
- 6GB/s SATA Per Lane
- PCI Express 3.0 X8 Lane Width
- Standard PCIE Plug-in Smart Array Controller
- External: 8 SAS Lanes Across 2 X4 Mini-sas Hd Ports
- Cache: No Cache
- Raid Levels: 0, 1, 5, 10
Supported of Servers
- HPE Proliant Dl360 Gen10
- HPE Proliant Dl380 Gen10
- HPE Proliant Dl560 Gen10
- HPE Proliant Dl580 Gen10
- HPE Proliant Ml110 Gen10
- HPE Proliant Ml350 Gen10
- HPE Proliant Xl170r Gen10
- HPE Proliant Xl190r Gen10
- HPE Proliant Xl230k Gen10
Supported for Disk Enclosure
- HPE D3610 Disk Enclosure
- HPE D3710 Disk Enclosure
- HPE D6020 Disk Enclosure
- HPE Msa 1040 San Storage
- HPE Msa 1050 San Storage
- HPE Msa 2040 San Storage
- HPE Msa 2050 San Storage
