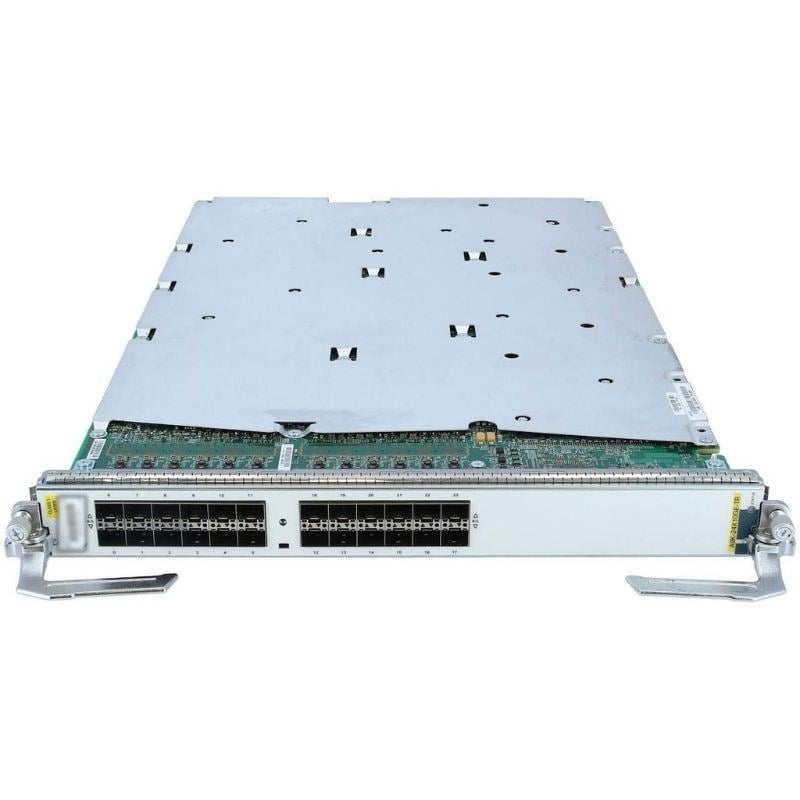

Unveiling the A9K-24X10GE-TR Cisco 24-Ports LC Service Module
In the rapidly evolving landscape of networking technology, the demand for high-performance and scalable solutions is more significant than ever. One such critical component in the networking domain is the A9K-24X10GE-TR, a 24 Ports 10 Gigabytes Per Second (GBPS) Small Form-Factor Pluggable Plus (SFP+) Hot-Swappable Packet Transport Optimized Line Card designed specifically for the 9000 Series Aggregation Services Router.
Understanding A9K-24X10GE-TROverview
The A9K-24X10GE-TR is a powerful line card that enhances the capabilities of the 9000 Series Aggregation Services Router. With 24 ports supporting 10 Gigabytes Per Second each, this line card is tailored for high-speed data transmission, making it an ideal choice for network infrastructures with demanding requirements.
Port Configuration
The 24 ports on the A9K-24X10GE-TR are equipped with Small Form-Factor Pluggable Plus (SFP+) technology. SFP+ modules are hot-swappable, allowing for efficient and convenient replacements without interrupting the overall system operation. This modularity not only simplifies maintenance but also contributes to the overall reliability of the network.
Hot-Swappable Design
The hot-swappable design of the A9K-24X10GE-TR is a standout feature. Hot-swapping refers to the ability to replace or add components without shutting down the system. In the context of this line card, it means that modules or ports can be changed on the fly, ensuring minimal downtime and uninterrupted network services. This capability is crucial for businesses and organizations that rely on continuous connectivity.
Advantages of A9K-24X10GE-TRHigh-Speed Data Transmission
The primary purpose of the A9K-24X10GE-TR is to facilitate high-speed data transmission. With each port supporting 10 Gigabytes Per Second, this line card can handle substantial volumes of data, making it suitable for data-intensive applications and services.
Scalability
Scalability is a key consideration in networking, especially for growing businesses. The A9K-24X10GE-TR provides scalability with its 24 ports, allowing organizations to expand their network infrastructure to accommodate increasing data demands.
Optimized for Packet Transport
The A9K-24X10GE-TR is optimized for packet transport. Packet transport refers to the method of transferring data in discrete packets or chunks. Optimization in this context ensures efficient and reliable packet delivery, contributing to the overall performance and responsiveness of the network.
Application in the 9000 Series Aggregation Services RouterIntegration with 9000 Series
The A9K-24X10GE-TR is specifically designed for seamless integration with the 9000 Series Aggregation Services Router. This integration ensures compatibility and optimal performance, creating a cohesive and efficient networking solution.
Aggregation Services Router Capabilities
The 9000 Series Aggregation Services Router is a versatile platform that serves as a key component in large-scale networks. With the A9K-24X10GE-TR line card, the router can handle increased traffic, making it well-suited for service providers, data centers, and enterprises with diverse networking needs.
Use CasesData Centers
In data center environments where high-speed data transmission is crucial, the A9K-24X10GE-TR plays a pivotal role. Its 24 ports and 10 Gigabytes Per Second data rate make it suitable for handling the vast amounts of data generated and processed in modern data centers.
Service Providers
For service providers delivering connectivity to a diverse range of clients, the A9K-24X10GE-TR offers the scalability and performance required. Its hot-swappable design ensures that maintenance activities can be carried out without affecting ongoing services.
Enterprise Networks
Enterprises with expanding networking needs can benefit from the A9K-24X10GE-TR. Whether it’s supporting a growing number of users or handling data-intensive applications, this line card provides the necessary capacity and flexibility.
Boosting Network Performance
The A9K-24X10GE-TR Cisco ASR 9000 24-Ports LC Service Module is a high-performance module designed for the ASR 9000 Series routers. It supports 24 10-Gigabit Ethernet ports with full line-rate forwarding, making it ideal for service providers and enterprise applications that require high-speed connectivity.
To boost network performance, the A9K-24X10GE-TR module includes several advanced features. These include:
- Cisco Virtualization Technology (CVT) – This feature allows multiple virtual routers to share the same physical infrastructure, increasing network efficiency and reducing costs.
- Quality of Service (QoS) – The module supports advanced QoS features, such as hierarchical policing, traffic shaping, and classification, which enable operators to prioritize traffic based on application or user requirements.
- Multicast – The A9K-24X10GE-TR module supports IPv4 and IPv6 multicast routing, enabling efficient delivery of video, audio, and other data streams to multiple recipients.
- Security – The module includes advanced security features, such as access control lists (ACLs), authentication, and encryption, which help protect networks against unauthorized access and attacks.
- IPv6 – The module is fully IPv6-capable, enabling operators to transition to the new protocol while maintaining support for existing IPv4 networks.
- Hardware acceleration – The A9K-24X10GE-TR module includes hardware-based forwarding and packet processing, which increases performance and reduces latency.
High Availability and Resiliency Features
The A9K-24X10GE-TR Cisco ASR 9000 24-Ports LC Service Module is a high-performance Ethernet line card that is designed to provide high availability and resiliency features in data center and service provider networks.
High availability refers to the ability of a network or system to remain operational and provide uninterrupted services even in the face of hardware or software failures. The A9K-24X10GE-TR line card is built to provide high availability by incorporating various features such as hardware redundancy, hot-swappable components, and modular architecture.
The A9K-24X10GE-TR line card uses a modular architecture that allows individual components to be replaced or upgraded without impacting the entire system. This means that if a component fails, it can be replaced quickly and easily without disrupting the entire network. Additionally, the line card supports hot-swapping, which means that components can be replaced while the system is still running.
The line card also includes hardware redundancy features such as redundant power supplies and fans. These redundant components ensure that the system can continue to operate even if a single component fails. If one power supply fails, the other power supply can take over, and if one fan fails, the other fan can continue to cool the system.
Resiliency features refer to the ability of a network or system to recover quickly from disruptions or failures. The A9K-24X10GE-TR line card includes various resiliency features such as link aggregation, traffic engineering, and fast rerouting.
Link aggregation allows multiple physical links to be combined into a single logical link, providing increased bandwidth and redundancy. Traffic engineering allows network administrators to control the flow of traffic through the network to ensure optimal performance and availability. Fast rerouting enables the network to quickly reroute traffic around failed links or nodes to minimize disruption to services.
General Information about the Cisco A9K-24X10GE-TR Optimized Line Card
- Manufacturer: Cisco
- Model Number or SKU# A9K-24X10GE-TR
- Product Name: ASR 9000 24-Port 10GE Packet Transport Optimized Line Card
- Product Type: Service Module
Technical Information of SFP+ Service Module
- Application/Usage: Optical Network
- Application/Usage: Data Networking
I/O Expansions
- Number of Total Expansion Slots: 24
- Expansion Slot Type: SFP+
Miscellaneous
- Compatibility: Cisco ASR 9000 Series Aggregation Services Router
In general, the A9K-24X10GE-TR is a robust and versatile line card designed to meet the demands of high-performance networking. With its 24 ports supporting 10 Gigabytes Per Second, hot-swappable design, and optimization for packet transport, it addresses the needs of data centers, service providers, and enterprises seeking a reliable and scalable solution. By seamlessly integrating with the 9000 Series Aggregation Services Router, it contributes to the overall efficiency and effectiveness of modern networking infrastructures. As technology continues to advance, the A9K-24X10GE-TR stands as a testament to innovation in networking equipment, providing a foundation for future-proof and high-performing networks.
