Efficient and Reliable Networking
The Cisco CBS220-24FP-4X 24 Ports Manageable Switch is a high-performance network switch that offers efficient and reliable networking for small to medium-sized businesses. The switch provides 24 Gigabit Ethernet ports, 4 of which are SFP ports for fiber connectivity, and supports advanced network management features such as Quality of Service (QoS), Access Control Lists (ACLs), and Link Aggregation Control Protocol (LACP).
One of the key features of the Cisco CBS220-24FP-4X switch is its ability to provide high-speed, low-latency connectivity for mission-critical applications. The switch supports advanced features such as jumbo frames and flow control, which help to reduce network congestion and improve the performance of bandwidth-intensive applications.
The switch also offers advanced network management capabilities that allow for easy configuration, monitoring, and troubleshooting of the network. The Cisco Network Assistant software provides a simple, web-based interface that allows network administrators to easily configure, monitor, and troubleshoot the switch. Additionally, the switch supports SNMP and RMON, which provide real-time monitoring and statistics of the network.
The Cisco CBS220-24FP-4X switch also offers energy-efficient features that help to reduce power consumption and costs. The switch supports Energy Efficient Ethernet (EEE), which automatically reduces power consumption when the switch is not in use, and also supports fanless operation, which reduces noise and heat generation.
Upgrade Your Network of 24 Ports Manageable Switch
Upgrading your network with the Cisco CBS220-24FP-4X 24 Ports Manageable Switch can greatly improve the performance and scalability of your network. Here are some key steps to upgrading your network with this switch:
- Planning: Before upgrading, it's important to assess your current network infrastructure and identify any bottlenecks or areas that need improvement. This will help you determine the right switch for your needs.
- Installation: The Cisco CBS220-24FP-4X switch can be easily installed by connecting it to your existing network using the 24 Ethernet ports and 4 SFP ports. This switch is designed for easy deployment and setup.
- Configuration: Once the switch is installed, you can configure it using the web-based management interface. This interface allows you to set up VLANs, configure QoS, and monitor network performance.
- Management: The Cisco CBS220-24FP-4X switch comes with advanced network management features, such as SNMP, RMON, and Cisco Discovery Protocol, that allow you to monitor and manage your network more effectively.
- Scalability: With 24 Ethernet ports and 4 SFP ports, the Cisco CBS220-24FP-4X switch can handle a large number of devices and can easily be expanded as your network grows.
- Energy efficiency: This switch is designed to be energy efficient, with features such as Energy Efficient Ethernet and power-saving modes that can help reduce power consumption and save on energy costs.
Deployment and Configuration
Deployment of the Cisco CBS220-24FP-4X switch involves physically connecting the device to power, as well as connecting it to other devices on the network using Ethernet cables. Once the switch is physically connected, it can be configured using a web interface or command-line interface (CLI).
To access the web interface, connect a computer to one of the switch's ports and enter the switch's IP address in a web browser. The default login credentials are "admin" for the username and "password" for the password.
Once logged in, the switch can be configured through the web interface by navigating to the various configuration pages and making changes as needed. Configuration options include setting up VLANs, configuring port settings, and setting up advanced features such as Quality of Service (QoS) and Link Aggregation Control Protocol (LACP).
Alternatively, the switch can be configured using the CLI by connecting to the switch via a console cable and using a terminal emulation program. The CLI provides a more advanced and granular level of control over the switch's configuration.
It's recommended to consult the device manual and also check for any latest software version and bug fixes before deploying the switch in production.

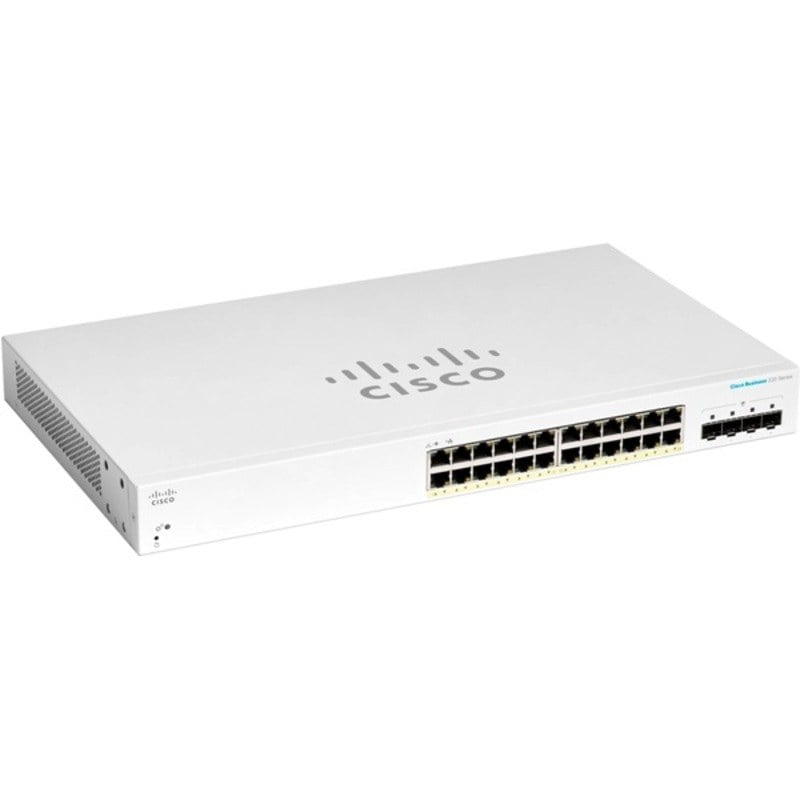

General Information about this Cisco CBS220-24P-4X
- Manufacturer: Cisco
- Model Number or SKU# CBS220-24P-4X
- Product Type: Ethernet Switch
Interfaces/Ports for 24 Ports Switch
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+
- Port/Expansion Slot Details: 4 x 10 Gigabit Ethernet Expansion Slot
Performance of Ethernet Switch
- Media Type Supported: Optical Fiber
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Network Technology: 10GBase-X
I/O Expansions for Layer 2 Switch
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
- Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 195 W
- Power Source: Power Supply
- Power Consumption: 37.60 W
- Package Contents
- Business CBS220-24P-4X Ethernet Switch
- Power Cord
- Mounting Kit
- Quick Start Guide
Management & Protocols
- Manageable: Yes
- Routing Protocol : IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol : SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
- BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering,
- Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function,
- LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images,
- Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS),
- DiffServ Code Point (DSCP) support, 2 fans, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard,
- Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard,
- Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af,
- IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- RAM : 256 MB
- Flash Memory : 64 MB
- Status Indicators : System, Link/activity, Speed
- Power Device : Internal power supply
- Voltage Required : AC 100-240 V (50/60 Hz)
- Power Consumption Operational : 248.7 Watt
Dimensions & Weight
- Width : 17.3 inch
- Depth ; 10.1 inch
- Height : 1.7 inch
- Weight : 8.88 lbs
Different Types of Switches
Networking switches vary widely depending on the number of devices they can support, network bandwidth/speed, and form factor. Switches for small offices will have anything between 4 and 8 ports and can fit on a desk. For larger office network implementation, switches may have 24 ports, 48 ports, 96 ports, and 128 ports and are rack-mountable between 1U and 4U. Switches come in different types depending on the network speed and tasks they support. These include 40/100 Gbps, 10 Gigabit (up to 10000 Mbps), Gigabit Ethernet (up to 1000 Mbps), Power over Ethernet, and Fast Ethernet (10/100 Mbps).
The unmanaged switches offer fixed configuration on a plug-and-play basis. It is the most basic switch and there are a few choices in the market. These switches are affordable, but the basic features make them inappropriate for enterprise applications.
The number of features and level of functionality improves with managed switches, making them ideal for enterprise and business applications. These switches are built with the command-line interface for ease of configuration. Equally, they support SNMP agents that come in handy when troubleshooting network issues.
The security on managed switches is better and will protect different types of traffic. Other features include support for virtual LANs, IP routing, and quality of service settings. Managed switches are more expensive compared to all other types of switches.
Smart switches refer to switches that possess more features than those of unmanaged switches but do not have the full features of managed switches. Smart switches are more cost-effective than managed switches.
Some of the limitations of the smart switches are a lack of telnet access support, Web GUIs, and a lack of many features for VLANs. They are affordable compared to a fully managed switch and are suitable for a smaller computer network.
Modular switches allow the addition of expansion modules as the network expands. The expansion modules allow for more networked devices but are application-specific. They may include wireless access points, firewalls, or network analysis tools. The flexibility of a modular networking switch comes at a higher cost.
