More Information of this Item

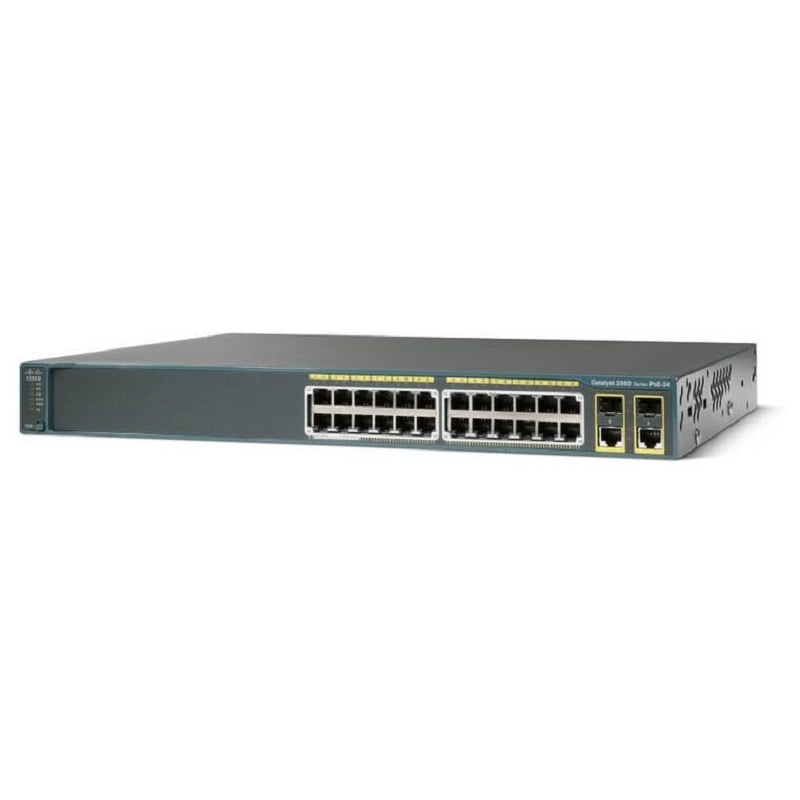

The WS-C2960-24TC-L is a fixed-configuration, standalone Ethernet switch that provides 24 10/100Base-T Ethernet ports and two 10/100/1000Base-T Ethernet uplink ports. It is part of the Cisco Catalyst 2960 series of switches, which are designed to provide fast and reliable network connectivity for small to medium-sized businesses and enterprise branch offices. The switch is equipped with advanced security and quality of service (QoS) features to help ensure the integrity and performance of your network. It is also Energy Efficient Ethernet (EEE) compliant, which means it can help reduce energy consumption and lower your overall power costs.
The WS-C2960-24TC-L is a Fast Ethernet and Gigabit Ethernet switch, which means it supports network speeds of up to 100 Mbps and 1000 Mbps, respectively.
In terms of performance, the model is designed to handle a moderate amount of network traffic. It has a switching capacity of 16 Gbps, which means it can forward traffic at a rate of up to 16 Gbps. This is sufficient for most small and medium-sized businesses, but may not be sufficient for larger organizations with high levels of network traffic.
The switch also supports Quality of Service (QoS) and access control lists (ACLs), which can help to improve performance by prioritizing certain types of network traffic and filtering out unwanted traffic. Additionally, the model supports Power over Ethernet (PoE), which allows you to power devices over the Ethernet cable, eliminating the need for separate power cables.
Interface Provided for Digital Workplace
The WS-C2960-24TC-L Cisco Catalyst 2960 24-port Ethernet switch provides a number of interfaces that can be used to connect devices to the network and manage the switch.
The main interface on the switch is the 24 Ethernet ports, which can be used to connect devices such as computers, servers, and printers. These ports support Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) speeds, and can be used to create a local area network (LAN) within an office or other small-to-medium-sized business.
In addition to the Ethernet ports, the model also has 2 SFP (Small Form-Factor Pluggable) uplink ports, which can be used to connect the switch to other networking devices or to extend the network to other locations.
The switch also has a console port, which can be used to connect a computer or other device for management and configuration purposes. The console port uses a RS-232 serial connection and requires a serial cable and terminal emulator software to access.
General Information about this Cisco WS-C2960-24TC-L
- Manufacturer: Cisco
- Model Number or SKU# WS-C2960-24TC-L
- Product Line: Catalyst
- Product Series: 2900
- Product Model: 2960-24TC
- Product Name: Catalyst 2960-24TC Managed Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports for 24 Ports Ethernet Switch
- Total Number of Network Ports: 24
- Number of Network (RJ-45) Ports: 24
- Port/Expansion Slot Details: 24 x Fast Ethernet Network
- Port/Expansion Slot Details: 2 x Gigabit Ethernet Uplink
- Port/Expansion Slot Details: 2 x Fast Ethernet Expansion Slot
Performance of Catalyst Managed Switch
- Media Type Supported: Twisted Pair
- Ethernet Technology: Fast Ethernet
- Network Technology: 10Base-T
- Network Technology: 100/1000Base-T
Network & Communication
- Layer Supported: 2
Management & Protocols
- Remote Management: HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
- Status Indicators: Link OK, Link/activity, Port duplex mode, Port transmission speed, Power, System
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, DHCP snooping, DiffServ support, Dynamic IP address assignment, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), Load balancing, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support
- Standard Memory: 64 MB
Dimensions and Weight
- Height: 1.7 inch
- Width: 17.5 inch
- Depth: 9.3 inch
- Weight: 7.94 LBS
- Input Voltage: 110 V AC
- Input Voltage: 220 V AC
About Refurbished Products
Different Types of Switches
Networking switches vary widely depending on the number of devices they can support, network bandwidth/speed, and form factor. Switches for small offices will have anything between 4 and 8 ports and can fit on a desk. For larger office network implementation, switches may have 24 ports, 48 ports, 96 ports, and 128 ports and are rack-mountable between 1U and 4U. Switches come in different types depending on the network speed and tasks they support. These include 40/100 Gbps, 10 Gigabit (up to 10000 Mbps), Gigabit Ethernet (up to 1000 Mbps), Power over Ethernet, and Fast Ethernet (10/100 Mbps).
The unmanaged switches offer fixed configuration on a plug-and-play basis. It is the most basic switch and there are a few choices in the market. These switches are affordable, but the basic features make them inappropriate for enterprise applications.
The number of features and level of functionality improves with managed switches, making them ideal for enterprise and business applications. These switches are built with the command-line interface for ease of configuration. Equally, they support SNMP agents that come in handy when troubleshooting network issues.
The security on managed switches is better and will protect different types of traffic. Other features include support for virtual LANs, IP routing, and quality of service settings. Managed switches are more expensive compared to all other types of switches.
Smart switches refer to switches that possess more features than those of unmanaged switches but do not have the full features of managed switches. Smart switches are more cost-effective than managed switches.
Some of the limitations of the smart switches are a lack of telnet access support, Web GUIs, and a lack of many features for VLANs. They are affordable compared to a fully managed switch and are suitable for a smaller computer network.
Modular switches allow the addition of expansion modules as the network expands. The expansion modules allow for more networked devices but are application-specific. They may include wireless access points, firewalls, or network analysis tools. The flexibility of a modular networking switch comes at a higher cost.
Here, you can check more available conditions of your desired product WS-C2960-24TC-L at a competitive price. We are trying our best to meet your needs on the enterprise-level computer, server, data centre, and networking hardware. You are welcome to ask our live chat or get live representative support over the phone.
