Description
Product Specification

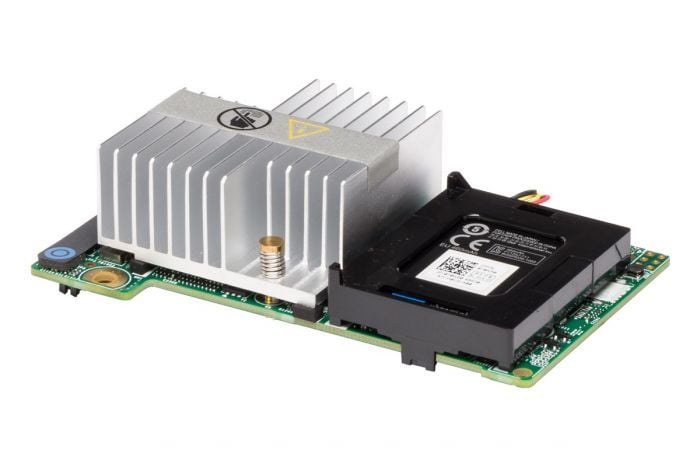

The Dell 0TY8F9 Perc H710P is a SAS (Serial Attached SCSI) RAID (Redundant Array of Independent Disks) controller designed for use with Dell PowerEdge servers. It is a mini mono card with a PCI Express 2.0 interface that can support up to eight SAS or SATA (Serial Advanced Technology Attachment) hard disk drives (HDDs) or solid-state drives (SSDs) in a RAID configuration. The H710P is an advanced controller that provides hardware RAID functionality and performance-enhancing features such as a 1GB non-volatile cache.
Features and Benefits
The Dell 0TY8F9 Perc H710P RAID controller supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. This allows for flexible configuration options that can suit different application requirements, from high-performance applications that require maximum I/O throughput to applications that prioritize data redundancy and protection against disk failure.
Additionally, the H710P supports multiple RAID arrays, which enables users to partition their drives into logical groups and configure them independently. This allows for better organization and management of data, as well as improved performance and fault tolerance.
Performance Enhancement with 1GB NV Cache
The Dell 0TY8F9 Perc H710P RAID controller is equipped with a 1GB non-volatile cache, which is a type of high-speed memory that can store data even when the system is powered off. The cache helps improve performance by storing frequently accessed data and reducing the need to access slower disk storage. This reduces latency and increases I/O throughput, resulting in faster data access and transfer rates.
Furthermore, the non-volatile nature of the cache means that data can be preserved even in the event of a power failure, reducing the risk of data loss and ensuring data integrity.
Compatibility with SAS and SATA Drives
The Dell 0TY8F9 Perc H710P RAID controller is compatible with both SAS and SATA drives. SAS drives are designed for enterprise-class applications that require high reliability, performance, and scalability, while SATA drives are more affordable and suitable for general-purpose applications. By supporting both types of drives, the H710P offers flexibility and cost-effectiveness for different usage scenarios.
Ease of Management and Monitoring with Dell OpenManage
The Dell 0TY8F9 Perc H710P RAID controller is supported by Dell OpenManage, a management and monitoring software suite that provides a centralized view of server hardware and system health. OpenManage enables users to perform tasks such as RAID configuration, firmware updates, and system diagnostics from a single interface, simplifying management and reducing the risk of errors.
Compatibility with Dell PowerEdge Servers
The Dell 0TY8F9 Perc H710P RAID controller is designed specifically for use with Dell PowerEdge servers. It is compatible with a wide range of server models, including the PowerEdge R620, R720, R720xd, R820, and T620. This ensures that users can enjoy the benefits of the H710P RAID controller without compatibility issues.
Overall, the Dell 0TY8F9 Perc H710P RAID controller is an advanced SAS RAID controller that provides hardware RAID functionality and performance-enhancing features. With support for multiple RAID levels and arrays, 1GB NV cache, compatibility with both SAS and SATA drives, ease of management and monitoring with Dell OpenManage, and compatibility with Dell PowerEdge servers, the H710P offers flexibility, reliability, and performance for enterprise-class applications.
General Information about the Dell 0TY8F9
- Brand: Dell
- Part Number or SKU# 0TY8F9
- Type: Controller
- Sub-Type: RAID Controller
Technical Features
- External Interfaces: SAS
- Internal Interfaces: SAS, SATA I, SATA II, SATA III
- Density: 1GB
- Interface Speed: PCI-E 2.0
- Transfer Rate: 6GB/S
- Compatibility: Dell Poweredge R320 / R420 / R520 / R620 / R720 / R720xd
- Additional Information: Dell Poweredge Raid Controller H710P Mini Mono
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
