Description
Features and Benefits of HPE Smart Array P408I-A SR

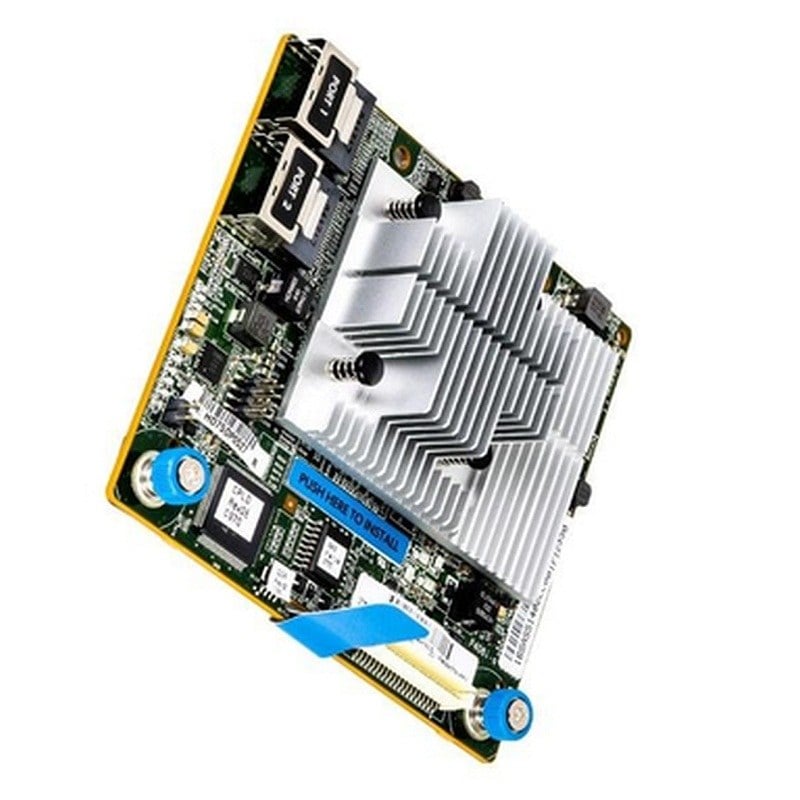

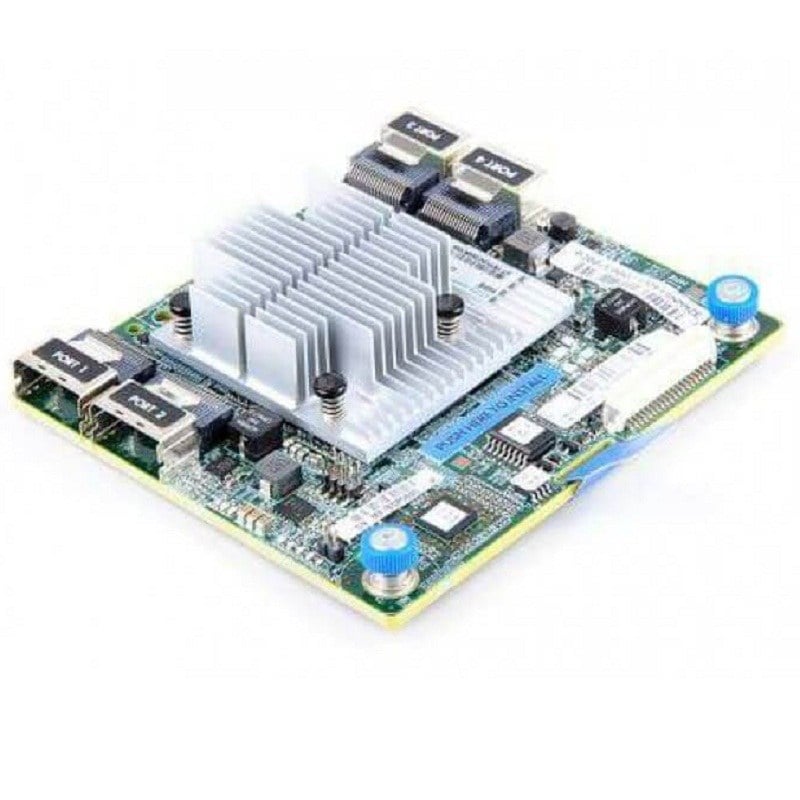

The 871040-001 HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller offers the following features and benefits:
- High performance: The 12G SAS interface provides faster data transfer rates and reduces latency, delivering higher performance than previous generation controllers.
- Scalability: The modular design allows for expansion and scalability, providing support for up to 24 SAS or SATA drives.
- Flexibility: The controller offers a range of deployment options, including RAID 0, 1, 5, 6, 10, 50, and 60, and supports multiple RAID levels on the same set of drives.
- Easy management: The controller is managed through the HPE Smart Storage Administrator (SSA), which provides a web-based interface for easy configuration and management of the storage environment.
- Enhanced data protection: Advanced features such as predictive spare activation and drive pre-failure warnings help to protect against data loss and downtime.
- High availability: The controller offers redundant paths to the drives, as well as support for HPE Smart Battery technology and HPE Secure Encryption, which enhance data availability and security.
- Energy efficiency: The controller includes energy-efficient features such as Dynamic Power Capping, which enables the controller to automatically adjust power consumption based on workload demands.
Supported RAID Levels of the HPE Smart Array P408I-A SR Controller
The HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller (part number 871040-001) supports the following RAID levels:
- RAID 0 (Striping)
- RAID 1 (Mirroring)
- RAID 5 (Distributed Parity)
- RAID 6 (Double Parity)
- RAID 10 (Striped Mirrors)
- RAID 50 (Striped Parity)
- RAID 60 (Striped Double Parity)
Management and Configuration Tools for the HPE Smart Array
There are several management and configuration tools that can be used for the 871040-001 HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller, including:
- HPE Smart Storage Administrator (SSA): This is a web-based tool that provides an easy-to-use interface for configuring and managing HPE Smart Array controllers and storage.
- HPE System Management Homepage (SMH): This tool provides a comprehensive overview of the health, performance, and configuration of HPE ProLiant servers, including the 871040-001 HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller.
- HPE Array Configuration Utility (ACU): This is a graphical user interface that provides a centralized management solution for HPE Smart Array controllers and storage. It enables administrators to easily configure, manage, and diagnose storage systems.
- HPE Intelligent Provisioning: This is a pre-installed tool that provides a streamlined and automated method for setting up and deploying HPE ProLiant servers. It can also be used to manage the 871040-001 HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller.
- HPE iLO: This is an integrated Lights-Out management tool that provides remote management capabilities for HPE ProLiant servers, including the 871040-001 HPE Smart Array P408I-A SR 12GBPS SAS Modular LH Controller.
General Information about this HPE 871040-001
- Manufacturer: HPE
- Part Number or SKU# 871040-001
- Product Type: Controller
- Sub Type: Smart Array Controller
Technical Information for SAS-SATA Controller
- Interface: 6GB/S SATA / 12GB/S SAS
- PCI Express 3.0 X8 Lane Width
- Form Factor Type-A Modular Controller
- Ports Internal: 8 SAS Lanes Across 2 X4 Mini-SAS Ports
- Cache 2 GB Flash-Backed Write Cache
Compatibility Information of Smart Array Controller
- HPE Apollo Series: 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL160 Gen10, DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice
