Description
More Information about this Router

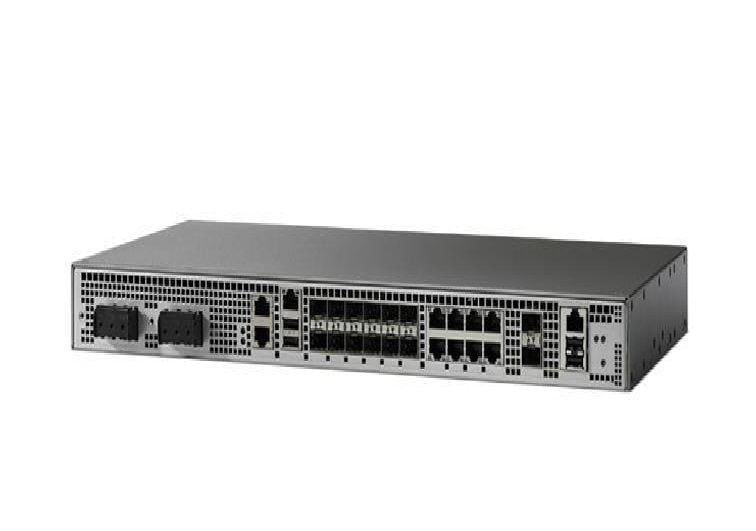

The Cisco ASR 920-24SZ-IM is a compact, high-performance router that is designed for service providers and enterprise customers who want to deploy cost-effective, high-speed WAN connectivity. It is rack-mountable and has 24 SFP+ ports, which can be used for a variety of connectivity options, including fiber and copper. The router is capable of speeds of up to 10 Gigabits per second (Gbps) and is well-suited for high-bandwidth applications such as video streaming and data transfer.
In terms of features, the ASR 920-24SZ-IM supports a wide range of protocols and features, including IPv4, IPv6, MPLS, and more. It is also scalable, with support for a variety of modules and interfaces that can be added as needed to support additional networking needs. The router is designed to be flexible and can be deployed in a variety of networking environments, including service provider and enterprise networks.
Overall, the ASR 920-24SZ-IM is a high-performance router that is well-suited for a variety of networking applications and environments. It is designed to be flexible, scalable, and reliable, and is capable of handling large amounts of traffic without experiencing significant performance degradation.
Router Configuration and Management
The Cisco ASR 920-24SZ-IM is a rack-mountable router that supports both Gigabit Ethernet (Gige) and 10 Gigabit Ethernet (10 Gige) connectivity. It is designed for service providers and enterprise networks that require high-performance routing and advanced services.
To configure and manage the ASR 920-24SZ-IM router, you will need to access the router’s command-line interface (CLI) using a console cable, Telnet, or SSH.
- Console Access: Connect the console cable to the router and to your computer, open a terminal emulator such as PuTTY, and configure the serial connection settings to match the router’s console port settings. Press the Enter key to access the router’s CLI.
- Telnet/SSH Access: Connect to the router’s IP address using Telnet or SSH client software such as Putty.
- Login: Once you have access to the router’s CLI, you will need to log in with the username and password for the router.
- Configuration: After logging in, you can use the CLI commands to configure the router’s various settings such as interfaces, routing protocols, and security features. For example, you can use the “interface” command to configure the interfaces, “ip route” command to configure static routes, and “ip access-list” command to configure access control lists.
- Management: The ASR 920-24SZ-IM router has several management features such as SNMP, syslog, and NetFlow. You can use these features to monitor and troubleshoot the router’s performance and network issues.
- Save Configuration: After configuring the router, it is important to save the configuration to non-volatile memory (NVRAM) using the “copy running-config startup-config” command. This will ensure that the configuration is not lost in case of a power outage or reboot.
- Upgrade Firmware: The ASR 920-24SZ-IM router’s firmware can be upgraded using the CLI command “software install”. This is useful to fix bugs and improve performance.
Performance and Reliability
The Cisco ASR 920-24SZ-IM is a high-performance router that is designed for service providers and enterprise customers who want to deploy cost-effective, high-speed WAN connectivity. It is capable of speeds of up to 10 Gigabits per second (Gbps) and is well-suited for high-bandwidth applications such as video streaming and data transfer. In terms of routing performance, the ASR 920-24SZ-IM is designed to support a wide range of protocols and features, including IPv4, IPv6, MPLS, and more, which allows it to be highly flexible in terms of how it can be deployed.
In terms of reliability, the ASR 920-24SZ-IM is designed to be highly reliable, with features such as redundant power supplies and advanced hardware fault tolerance to ensure that it stays up and running even in the event of hardware failures. It is also designed to be scalable, with support for a variety of modules and interfaces that can be added as needed to support additional networking needs.
Overall, the ASR 920-24SZ-IM is a high-performance, reliable router that is well-suited for a variety of networking applications and environments. It is designed to be flexible, scalable, and reliable, and is capable of handling large amounts of traffic without experiencing significant performance degradation.
General Information:
- Manufacturer Cisco Systems, Inc
- Manufacturer Part Number ASR-920-24SZ-IM
- Brand Name Cisco
- Product Series ASR 920
- Product Model ASR-920-24SZ-IM
- Product Name ASR-920-24SZ-IM Router
- Product Type Router
Interfaces/Ports
- Powerline No
- Management Port Yes
Media & Performance
- Carrier Supported T-carrier/E-carrier
I/O Expansions:
- Number of Total Expansion Slots 28
Network & Communication:
- Network Technology 1000Base-X
- Network Technology 10GBase-X
- Ethernet Technology 10 Gigabit Ethernet
Power Description:
- PoE (RJ-45) Port No
- Redundant Power Supply Supported Yes
