Description
Product Overview of the Cisco 48 Ports PoE+ Switch
In the ever-evolving landscape of networking solutions, the Cisco CBS350-48FP-4G emerges as a powerful and versatile option for businesses seeking a reliable and efficient 48-ports switch. This in-depth guide aims to provide a detailed understanding of the Cisco CBS350-48FP-4G, focusing on its key features, benefits, and how it can be a valuable addition to your network infrastructure.

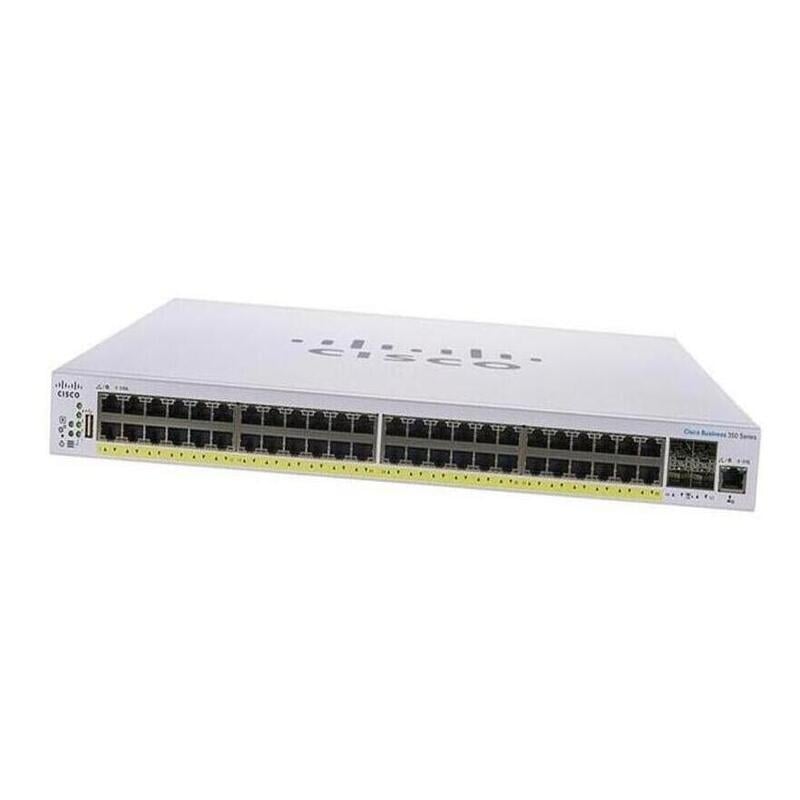

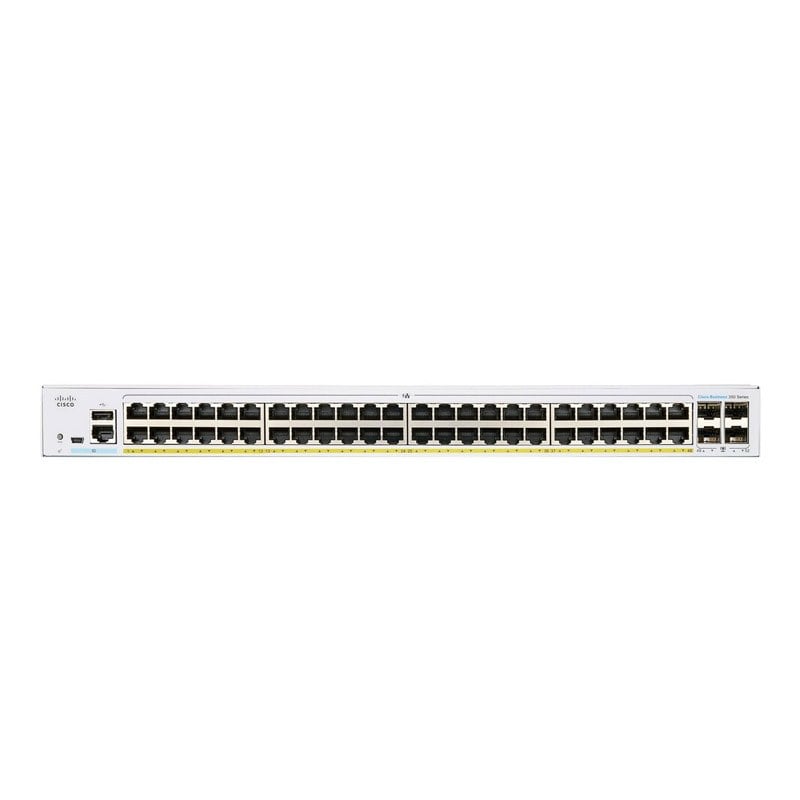

Cisco CBS350-48FP-4G
The Cisco CBS350-48FP-4G is a 48-port Power over Ethernet Plus (PoE+) switch with Small Form-Factor Pluggable (SFP) support and Layer 3 capabilities. Let’s break down these features to comprehend the switch’s capabilities.
48 Ports PoE+
With 48 PoE+ ports, the CBS350-48FP-4G is designed to provide both data connectivity and power to connected devices such as IP cameras, VoIP phones, and wireless access points. This eliminates the need for additional power sources and simplifies cable management.
SFP Support
The Small Form-Factor Pluggable (SFP) ports on the switch allow for flexible connectivity options. SFP modules can be used to support various fiber or copper networking interfaces, providing adaptability for different networking requirements.
Layer 3 Managed
The Layer 3 management capability enables the switch to make routing decisions, enhancing the overall intelligence and efficiency of the network. This feature is crucial for larger and more complex network architectures.
Key FeaturesPoE+ Capability
The PoE+ capability of the CBS350-48FP-4G is a standout feature. PoE+ delivers higher power (up to 30 watts per port) compared to standard PoE, accommodating power-hungry devices and facilitating the deployment of devices in locations with limited power sources.
Advanced Security Features
The switch incorporates advanced security features to safeguard your network. This includes features such as Access Control Lists (ACLs), port security, and 802.1X authentication, providing a robust defense against unauthorized access and potential security threats.
Quality of Service (QoS) Support
QoS ensures that critical applications receive priority over the network, optimizing performance for applications like voice and video. The CBS350-48FP-4G allows for the configuration of QoS parameters, enabling a seamless and efficient network experience.
Energy-Efficient Design
The switch is designed with energy efficiency in mind. Features like Energy-Efficient Ethernet (EEE) and the ability to schedule power to specific ports contribute to a greener and more cost-effective operation.
Benefits of Cisco CBS350-48FP-4GSimplified Network
The Layer 3 capabilities of the CBS350-48FP-4G simplify network tasks. The switch can intelligently route traffic, optimize performance, and enhance the overall efficiency of the network.
Cost-Effective Power Distribution
By providing both data and power over a single Ethernet cable, the switch eliminates the need for additional power outlets near each connected device. This not only reduces the cost of additional power infrastructure but also simplifies cable management.
Enhanced Security
The advanced security features embedded in the switch provide a robust defense against potential threats. Businesses can confidently deploy the CBS350-48FP-4G knowing that their network is well-protected.
Flexible Connectivity Options
With SFP support, the switch offers flexibility in terms of connectivity. Whether it’s short-range or long-range connections, fiber or copper, the CBS350-48FP-4G can adapt to various networking requirements.
Improved Network Performance
QoS support ensures that critical applications receive the necessary bandwidth and priority, leading to improved overall network performance. This is especially crucial in environments where real-time applications such as voice and video communication are prevalent.
Environmentally Friendly Operation
The energy-efficient design of the CBS350-48FP-4G contributes to a more environmentally friendly operation. Reduced power consumption and the ability to schedule power to specific ports align with green initiatives and reduce operational costs.
Use Cases
Enterprise networks
For large enterprises with extensive networking needs, the CBS350-48FP-4G serves as a reliable backbone. Its Layer 3 capabilities and advanced features make it suitable for complex network architectures.
IP Surveillance Systems
The PoE+ capability is particularly beneficial for IP surveillance systems, where cameras need both data connectivity and power. The switch simplifies the deployment of surveillance systems by providing a centralized power source.
VoIP Deployments
In Voice over Internet Protocol (VoIP) deployments, where both data and voice services are transmitted over the network, the CBS350-48FP-4G ensures a seamless and high-quality communication experience.
Education Institutions
Educational institutions with diverse connectivity requirements can benefit from the flexibility and scalability offered by the CBS350-48FP-4G. Its robust security features also make it suitable for safeguarding sensitive data.
General Information about the Cisco CBS350-48FP-4G
- Manufacturer: Cisco
- Part Number or SKU# CBS350-48FP-4G
- Product Type: Ethernet Switch
Technical Information of 48 Ports Switch
- Ports: 48 x 10/100/1000 + 4 SFP
- Capacity: 104 Gbps
- Throughput (64-byte Packet): 77.38 Mpps
- PoE (Power over Ethernet): Yes, 740W (48 Ports)
- Jumbo Frame Support: 9k Bytes, MTU 2k Bytes
- MAC Table: 16k Addresses
- Port Aggregation: Support for linking up to 8 switches
- VLANs (Virtual LANs): Up to 4094
- Voice VLAN: Automatically assigned with appropriate QoS levels
- IGMP (Internet Group Management Protocol) 1, 2, 3: Supports up to 2k multicast groups
- IPv4 Routing: Up to 990 static routes and up to 128 IP interfaces
- ACL (Access Control List): Supports up to 1024 rules
RAM / Memory
- Processor: 800 MHz ARM
- RAM: 512 MB
- Flash Memory: 256 MB
- QoS (Quality of Service) Protocol Support: Yes (802.1p)
Overall, the Cisco CBS350-48FP-4G emerges as a comprehensive networking solution, combining power, flexibility, and advanced features to meet the demands of modern network infrastructures. Whether you are looking to enhance the efficiency of your enterprise network, deploy a reliable IP surveillance system, optimize VoIP communications, or secure your educational institution’s connectivity, the CBS350-48FP-4G stands out as a versatile and powerful choice.
