Description

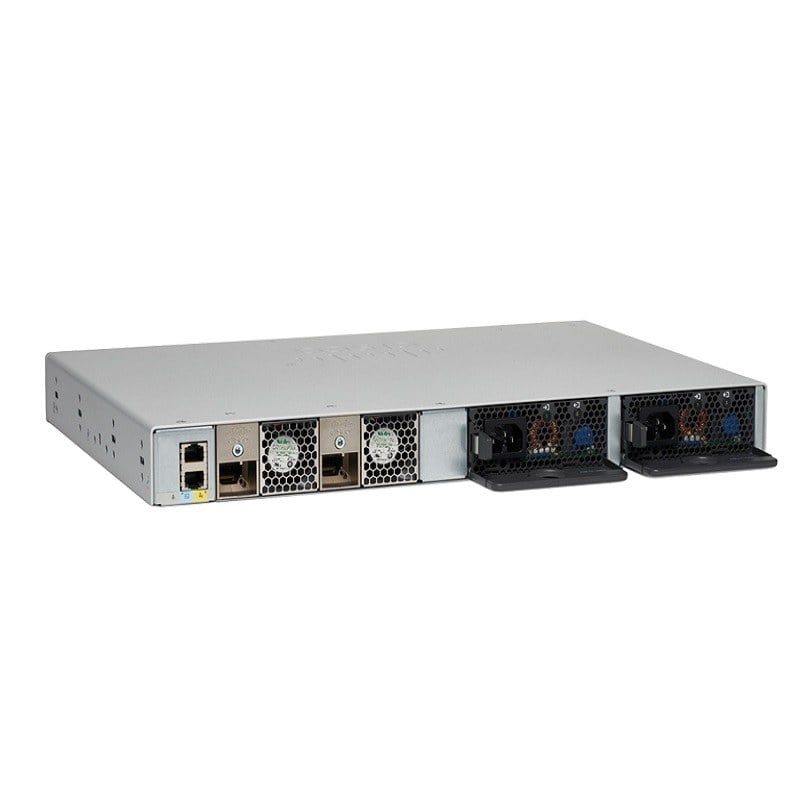

Configuration and Management of Rack-Mountable 48 Ports Switch
The Cisco C9200-48PXG-E Rack-Mountable 48 Ports Switch is a high-performance, advanced switch that can be configured and managed using several methods. These include:
- Cisco DNA Center: The switch is managed by Cisco DNA Center, which provides a centralized management platform for the network. It allows for the configuration, monitoring, and troubleshooting of the switch through a web-based interface.
- CLI: The switch can be configured and managed through the Command-Line Interface (CLI) using a console or SSH connection.
- SNMP: The switch can be configured and managed through Simple Network Management Protocol (SNMP) using a management station.
- Auto-Provisioning: The switch supports auto-provisioning, which allows for the automated configuration and deployment of the switch.
- Zero Touch Provisioning (ZTP): The switch supports ZTP, which allows for the automated configuration and deployment of the switch without any manual intervention.
- APIs: The switch can be configured and managed through APIs, which allow for the integration of the switch with other network management tools.
- Firmware Upgrade: The switch supports firmware upgrades, which allows for the installation of new software versions and updates to improve the performance and security of the switch.
- Backup and Restore: The switch supports backup and restore, which allows for the backup of the switch’s configuration and the restoration of the configuration in case of a failure.
Troubleshooting and Maintenance
Troubleshooting and maintenance of the Cisco C9200-48PXG-E Rack-Mountable 48 Ports Switch requires a systematic approach to identify and resolve any issues that may arise. The following are some common troubleshooting and maintenance steps:
- Check the status of the switch: Verify that the switch is powered on and that all the LEDs are green. If any of the LEDs are red, this may indicate a problem with the switch.
- Check the status of the ports: Verify that all the ports are functioning properly and that there are no errors on any of the ports.
- Check the status of the cables: Verify that all the cables are properly connected and that there are no loose connections.
- Check the status of the power supply: Verify that the power supply is functioning properly and that there are no errors.
- Check the status of the cooling system: Verify that the cooling system is functioning properly and that there are no overheating issues.
- Check the status of the firmware: Verify that the firmware is up to date and that there are no issues with the firmware.
- Check the status of the configuration: Verify that the configuration is correct and that there are no issues with the configuration.
- Check the status of the network: Verify that the network is functioning properly and that there are no issues with the network.
- Check the status of the logs: Verify that the logs are being generated correctly and that there are no issues with the logs.
- Check the status of the backups: Verify that the backups are being generated correctly and that there are no issues with the backups.
Advanced Features of Catalyst 48 Ports Ethernet Switch
The Cisco C9200-48PXG-E 48 Ports Ethernet Switch is a high-performance, advanced switch that provides several advanced features to ensure the security and efficiency of the network. These include:
- Cisco DNA Advantage: The switch is built on the Cisco DNA Advantage architecture, which provides an intelligent, automated, and secure network.
- Cisco DNA Center: The switch is managed by Cisco DNA Center, which provides centralized management, automation, and analytics for the network.
- Cisco DNA Spaces: The switch supports Cisco DNA Spaces, which provides location-based services and analytics for the network.
- Cisco TrustSec: The switch supports Cisco TrustSec, which provides security and access control based on user roles and responsibilities.
- Quality of Service (QoS): The switch supports advanced QoS features, such as traffic policing, shaping, and congestion management, to ensure that critical applications and services receive the bandwidth they need.
- Multi-Gigabit Ethernet: The switch supports Multi-Gigabit Ethernet, which provides faster data transfer rates and improved performance for high-bandwidth applications.
- Software-Defined Access (SDA): The switch supports SDA, which provides automated, policy-based access control for the network.
- Automated Network Provisioning: The switch supports automated network provisioning, which streamlines the deployment and management of the network.
- Advanced Layer 3 Routing: The switch supports advanced Layer 3 routing features, such as OSPF, EIGRP, and BGP, to provide efficient and secure routing for the network.
- IPv6 Support: The switch supports IPv6, which provides a larger address space and improved security for the network.
- Energy Efficient Ethernet (EEE): The switch supports Energy Efficient Ethernet, which reduces energy consumption and lowers operating costs.
- Cisco StackWise-480: The switch supports Cisco StackWise-480, which provides a high-speed, flexible and resilient stacking solution for the network.
- Cisco Application Visibility and Control (AVC): The switch supports Cisco AVC, which provides application-level visibility and control for the network.
- Cisco Smart Operations: The switch supports Cisco Smart Operations, which simplifies deployment, management, and troubleshooting of the network.
General Information about this Cisco C9200-48PXG-E
- Manufacturer: Cisco
- Part Number or SKU# C9200-48PXG-E
- Product Line: Catalyst
- Product Series: 9200
- Product Model: C9200-48PXG
- Product Type: Ethernet Switch
Technical Information of Cisco 48 Ports Switch
- Total Number of Network Ports: 48
- Modular: Yes
- Stack Port: Yes
- Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet PoE+
- Port/Expansion Slot Details: 1 x Expansion Slot
- Port/Expansion Slot Details: 40 x Gigabit Ethernet PoE+
Dimension for this Cisco Ethernet Switch
- Height: 1.7 Inch
- Width: 17.5 Inch
- Depth: 13.8 Inch
- Weight (Approximate): 12.02 LBS
Media & Performance for Cisco Twisted Pair Switch
- Media Type Supported: Twisted Pair
- Ethernet Technology: 10 Gigabit Ethernet
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10GBase-T
- Network Technology: 1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 1
- Expansion Slot Type: Network Interface Module (NIM)
- Shared SFP Slot: No
Network & Communication
- Layer Supported: 3
- Power Description
- Input Voltage: 230 V AC
- Input Voltage: 120 V AC
- Power Source: Power Supply
- Redundant Power Supply Supported: Yes
- Number of Power Supplies Supported: 2
