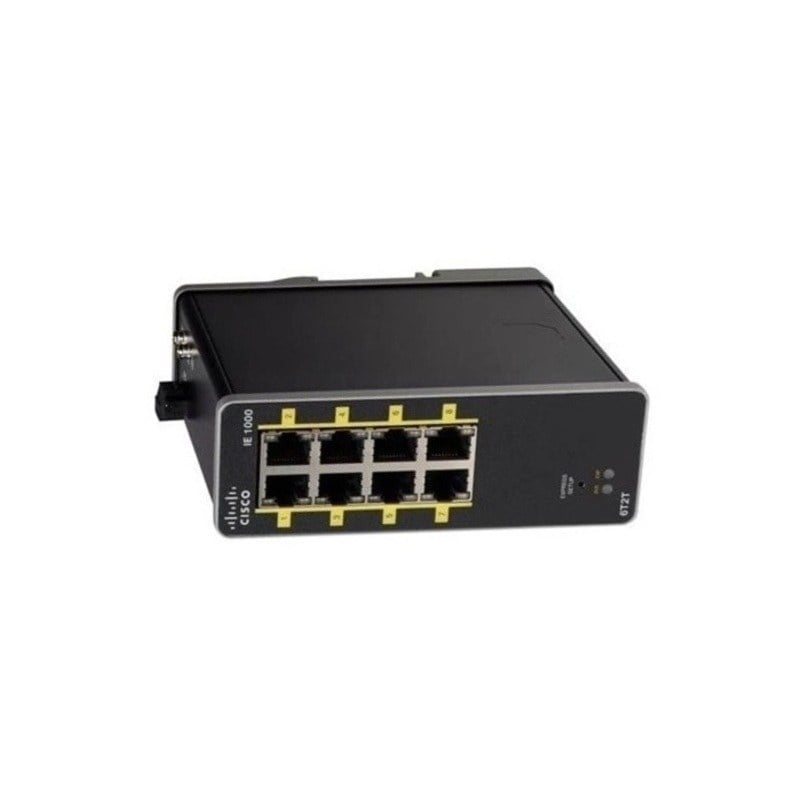

Product Overview for the Cisco Ethernet Industrial Switch
In the realm of industrial networking, the Cisco IE-1000-6T2T-LM stands out as a robust and reliable solution. This Industrial Ethernet Switch is engineered to meet the unique challenges of industrial environments, providing seamless connectivity and performance in demanding conditions. With its 8 Ports supporting 100Base-TX and robust features, the IE-1000-6T2T-LM is a key player in industrial networking solutions. In this comprehensive guide, we will explore the key features, specifications, applications, and benefits of the Cisco IE-1000-6T2T-LM, shedding light on its pivotal role in enhancing connectivity in industrial settings.
Key Features of Cisco IE-1000-6T2T-LM:
- 8 Ports Supporting 100Base-TX: The IE-1000-6T2T-LM boasts 8 ports, each supporting 100Base-TX. This configuration ensures a robust and high-speed connectivity foundation for industrial applications, accommodating the demands of data-intensive processes.
- Industrial Ethernet Switch Design: Engineered for industrial use, the IE-1000-6T2T-LM features a rugged and durable design. It is built to withstand harsh environmental conditions, including extreme temperatures, vibrations, and electromagnetic interference, common in industrial settings.
- Compact Form Factor: The switch’s compact form factor makes it suitable for deployment in space-constrained industrial environments. Its small footprint allows for flexible installation options while maintaining a high level of port density.
- Layer 2 Managed Switch: As a Layer 2 managed switch, the IE-1000-6T2T-LM provides advanced features for network management and control. It supports VLANs, QoS (Quality of Service), and other Layer 2 functionalities crucial for optimizing network performance.
Specifications of Cisco IE-1000-6T2T-LM:
- Port Configuration: The IE-1000-6T2T-LM features a total of 8 ports, supporting 100Base-TX. This configuration is tailored for industrial applications that require high-speed data transfer over twisted pair cables.
- Layer 2 Features: As a Layer 2 managed switch, the IE-1000-6T2T-LM supports features such as VLANs for network segmentation, QoS for prioritizing traffic, and Rapid Spanning Tree Protocol (RSTP) for network redundancy.
- Industrial Environmental Ratings: The switch is designed to meet industrial environmental ratings, including extended temperature ranges, making it suitable for deployment in challenging industrial environments.
- Compact Dimensions: With compact dimensions, the IE-1000-6T2T-LM offers flexibility in deployment. Its small size ensures that it can be easily integrated into industrial cabinets or enclosures where space is limited.
Applications of Cisco IE-1000-6T2T-LM:
- Factory Automation: The IE-1000-6T2T-LM is well-suited for factory automation applications where reliable and high-speed connectivity is crucial. It can connect industrial machinery, controllers, and sensors, facilitating seamless communication in automated manufacturing processes.
- Oil and Gas Industry: In the oil and gas industry, where environmental conditions can be harsh, the IE-1000-6T2T-LM’s rugged design and industrial ratings make it an ideal choice. It can be deployed to connect control systems, monitoring devices, and communication equipment.
- Transportation Systems: The switch is suitable for deployment in transportation systems, such as railways and intelligent transportation networks. It can facilitate communication between control centers, signaling systems, and other components critical for the efficient operation of transportation infrastructure.
- Power Substations: Power substations require robust and reliable networking solutions. The IE-1000-6T2T-LM can be deployed to connect substation equipment, providing a stable and secure communication infrastructure in power distribution networks.
Benefits of Cisco IE-1000-6T2T-LM:
- Rugged Industrial Design: The IE-1000-6T2T-LM’s rugged industrial design ensures its resilience in challenging environments. It can withstand extreme temperatures, vibrations, and electromagnetic interference, providing a reliable networking solution for industrial applications.
- High-Speed Connectivity: With 8 ports supporting 100Base-TX, the switch delivers high-speed connectivity crucial for industrial processes that demand rapid data transfer. This ensures efficient communication between devices and systems in industrial settings.
- Layer 2 Management Capabilities: The Layer 2 managed capabilities of the switch enable advanced network management. Features such as VLAN support and QoS allow administrators to optimize the network for performance, segmentation, and prioritization of critical traffic.
- Compact Form Factor for Flexibility: The compact form factor of the IE-1000-6T2T-LM provides flexibility in deployment. Its small size allows for easy integration into space-constrained industrial cabinets or enclosures, making it adaptable to diverse industrial environments.
- Reliable Industrial Connectivity: Designed specifically for industrial use, the switch offers reliable and stable connectivity in environments where standard networking equipment may struggle. Its robust features make it a dependable choice for maintaining communication in critical industrial processes.
Reliability of Industrial Switch
The IE-1000-6T2T-LM Cisco Industrial 8 Ports Ethernet Switch is designed to provide reliable network connectivity in industrial environments. Some of the features that contribute to the switch’s reliability are:
- Rugged design: The switch is built to withstand harsh industrial environments with a wide operating temperature range and IP30-rated metal housing that provides protection against dust and debris.
- Redundant Power Supply: The switch can be equipped with an optional redundant power supply, ensuring that the switch will continue to operate even if one power supply fails.
- EMI/EMC: The switch is designed to meet strict EMI/EMC standards, which helps to prevent interference from other electronic devices, providing a reliable network connection.
- Industrial protocol support: The switch supports various industrial protocols such as Modbus TCP, EtherNet/IP, and PROFINET. This allows for the integration of the switch with existing industrial networks and equipment.
- Link Aggregation Control Protocol (LACP): LACP allows for the creation of Link Aggregation Groups (LAGs) which bundle multiple physical links together to form a single logical link. This increases the bandwidth and provides redundancy in case one of the physical links fails.
- Quality of Service (QoS): QoS allows for the prioritization of different types of traffic, ensuring that important traffic such as machine-to-machine communication is given priority over less important traffic.
- Industrial Security: The switch supports industrial-grade security features such as IEEE 802.1X, TACACS+, and RADIUS, which helps to protect the network from unauthorized access and potential cyber-attacks.
Remote Management Protocol
The IE-1000-6T2T-LM is a Cisco Industrial Ethernet (IE) switch that provides 8 10/100/1000 Ethernet ports, including 6 copper ports and 2 SFP fiber ports. It is designed for use in industrial environments, with features such as extended temperature range, vibration resistance, and rugged metal housing that make it suitable for harsh environments.
One of the key features of this product switch is its remote management capabilities. The switch supports various remote management protocols, which allow for the configuration and monitoring of the switch from a remote location. Some of the supported remote management protocols are:
- Simple Network Management Protocol (SNMP): SNMP is a widely used protocol for managing network devices. It allows for the retrieval of information about the switch’s performance and configuration, as well as the ability to make configuration changes.
- Telnet: Telnet is a protocol that allows for remote access to the switch’s command-line interface (CLI). This allows for more detailed configuration and troubleshooting of the switch.
- Secure Shell (SSH): SSH is a secure protocol that allows for remote access to the switch’s CLI. It encrypts the communication between the remote device and the switch, providing added security.
- Cisco Discovery Protocol (CDP): CDP is a Cisco proprietary protocol that allows for the discovery of other Cisco devices on the network. It can provide information about the device’s type, uptime, and IP address.
- HTTP/HTTPS: The switch also supports web-based management through a web interface which can be accessed via HTTP/HTTPS protocol, this allows for easy configuration and monitoring of the switch from a web browser.
These protocols allow for the remote management and monitoring of this product switch, making it easier to troubleshoot and maintain the switch in industrial environments where direct access to the switch may be difficult.
General Information about this Cisco IE-1000-6T2T-LM
- Manufacturer: Cisco
- Model Number or SKU# IE-1000-6T2T-LM
- Device Type: Ethernet Switch
Key Features for 8 Ports Switch
- Total Number of Ports:8
- Enclosure Type: Din Rail Mountable
- Subtype: Fast Ethernet
- Ports: 2 X 10/100 (uplink) + 6 X 10/100 (downlink)
- Routing Protocol: Igmpv2, Igmp
- Remote Management Protocol: SNMP 2, SNMP, Ramon, Snmp 3, Http, Ssh
- Authentication Method: Secure Shell (SSH), Radius
Features :
- Dhcp Support, Bootp Support, Igmp Snooping, Syslog Support, Full Duplex Mode, Spanning Tree Protocol (STP) Support, Multiple Spanning Tree Protocol (mstp) Support, DHCP Snooping, DHCP Server, Static Ip Mode, Lldp Support, Port Security, Management Information Base (mib), Class Of Service (cos), Diffserv Code Point (dscp) Support, Bridge Protocol Data Unit (bpdu), Internet Control Message Protocol (ICMP), Management Information Base (mib) Ii
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lap), Ieee 802.1w, Ieee 802.1s, Ieee 802.1ab (lldp)
- Ram: 128 Mb
- Flash Memory: 160 Mb
Power of Ethernet Switch
- Voltage Required: Dc 12 – 24 V
- Power Consumption Operational: 5.3 Watt
Miscellaneous of Layer 2 Switch
- MTBF: 374,052 Hours
- Compliant Standards: Cispr 22 Class A, En55022, Nom, Cb, Emc, Ices-003 Class A, Rohs, Iec 60068-2-30, Kcc, Weee, Iec 60068-2-27, Iec 60068-2-6, Anatel, En 61131-2, En 61326-1, Iec 60068-2-64, Iec 60068-2-1, Iec 60068-2-2, Iec 60068-2-14, Cem, Emi, Ip30, Iec 60068-2-56, Vcci Class A, En 50581, Eac, China Rohs, Rcm, As/nzs Cispr22:2004 Class A, Nom-001-scfi-1993, Cispr 11 Class A, Ansi/isa.12.12.01 Class I Division 2 Groups Abcd, Iec60950-1, Iec 60068-2-3, Fcc Cfr47 Part 15 A, Ul/csa60950-1, Ul/csa/iec/en 61010-2-201, En 55016-1-1 Class A, En 55016-1-4 Class A, En 55016-2-3 Class A, As/nzs Cispr 24, Nal, Iec/en/en61000-4-2, Iec/en 61000-4-3, Iec/en 61000-4-4, Iec/en 61000-4-5, Iec/en 61000-4-6, Iec/en 61000-4-8, Iec/en 61000-4-9, Iec/en 61000-4-29, Iec 60068-2-47, Iec/en 61000-6-1, Iec/en 61000-6-2, Iec/en 61000-6-4
In summary, the Cisco IE-1000-6T2T-LM Industrial Ethernet Switch emerges as a stalwart in industrial networking, offering a combination of high-speed connectivity, rugged design, and advanced management capabilities. With 8 ports supporting 100Base-TX, Layer 2 managed features, and a compact form factor, it is well-suited for applications in factory automation, the oil and gas industry, transportation systems, and power substations. The IE-1000-6T2T-LM exemplifies Cisco’s commitment to providing networking solutions that meet the specific challenges of industrial environments, ensuring reliable and efficient communication in critical industrial processes.f
