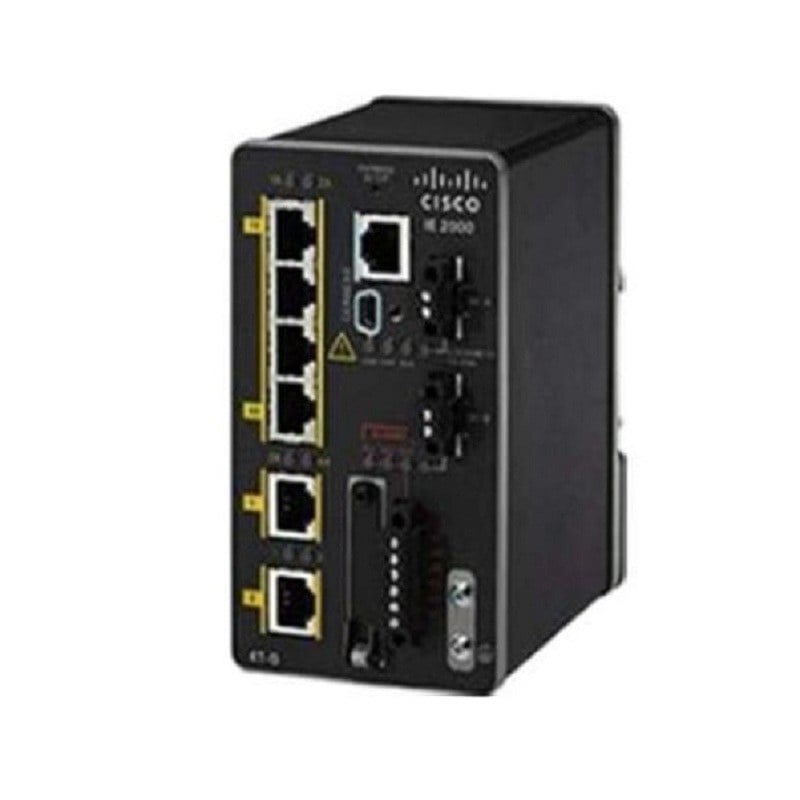

Product Overview of the Cisco IE-2000-4TS-G-B Ethernet Managed Switch
In the realm of industrial networking, reliability and robustness are paramount. Cisco, a renowned name in the networking industry, has introduced the Cisco IE-2000-4TS-G-B, a specialized industrial Ethernet switch designed to meet the unique demands of industrial environments. In this detailed guide, we will explore the features, benefits, applications, and installation procedures of the Cisco IE-2000-4TS-G-B, a 4-port Layer 2 managed Ethernet switch built for industrial settings.
The Cisco IE-2000-4TS-G-B is a purpose-built industrial Ethernet switch, part of the Cisco Industrial Ethernet 2000 Series. It boasts four twisted-pair Ethernet ports and offers advanced Layer 2 managed features. Let’s dive into the details of this switch and understand what makes it stand out.
Key Features
Let’s begin by discussing some of the key features of the Cisco IE-2000-4TS-G-B:
- Four Twisted-Pair Ethernet Ports: This switch is equipped with four twisted-pair Ethernet ports, which are commonly used to connect various industrial devices like PLCs (Programmable Logic Controllers), sensors, cameras, and other essential equipment.
- Rugged Industrial Design: The Cisco IE-2000-4TS-G-B is built to withstand the harsh conditions often found in industrial settings. It can operate efficiently in extreme temperatures, resist dust and humidity, and endure mechanical shock and vibration. This durability is a key feature for its deployment in factories, power plants, transportation systems, and other demanding environments.
- Layer 2 Managed Switching: The switch supports Layer 2 network management, which allows for the configuration and management of VLANs (Virtual LANs), Quality of Service (QoS), and various security features. This enables efficient network operation and enhances network control.
- Redundancy and Resilience: Ensuring network reliability is crucial in industrial applications where downtime can result in significant losses. The Cisco IE-2000-4TS-G-B includes redundancy features such as Rapid Spanning Tree Protocol (RSTP) and Media Redundancy Protocol (MRP) to enhance network resilience and minimize the risk of network failures.
- Advanced Security Features: Security is a top priority in industrial settings to safeguard sensitive data and critical infrastructure. This switch offers advanced security features, including Access Control Lists (ACLs), Port Security, and 802.1X Authentication, to protect the network from unauthorized access and threats.
- Easy Configuration and Management: While the switch boasts advanced features, Cisco’s Network Assistant software simplifies the configuration and management process. Even individuals with limited networking expertise can effectively set up and manage the Cisco IE-2000-4TS-G-B switch, reducing the learning curve and operational complexity.
- DIN-Rail Mounting: The switch can be conveniently mounted on DIN rails, which is a standard mounting option in industrial settings. This allows for flexible installation and efficient use of space.
Use Cases and Applications
Now that we’ve covered the features and hardware specifications, let’s explore the diverse applications and use cases where the Cisco IE-2000-4TS-G-B switch can be deployed effectively.
Factory Automation
In the manufacturing industry, precision and efficiency are critical. The Cisco IE-2000-4TS-G-B switch can connect various automated systems, robots, sensors, and other equipment essential for modern factory operations. Its rugged design ensures continuous operation, even in challenging environmental conditions. The Layer 2 managed features are crucial for optimizing production processes and maintaining network control.
Power Plants
Power plants, whether nuclear, coal-based, or renewable energy facilities, rely on complex control systems. The Cisco IE-2000-4TS-G-B switch is well-suited for connecting and managing the various control and monitoring systems that keep power generation running smoothly. Its redundancy features ensure that power plant operations remain stable and reliable.
Smart Cities
As cities become more connected and smarter, the need for reliable networking infrastructure is crucial. The Cisco IE-2000-4TS-G-B can be deployed in smart city projects to support applications such as traffic management, environmental monitoring, and public safety systems. Its advanced security and redundancy features contribute to the efficient operation of smart city technologies.
Water Treatment and Utilities
Water treatment plants and utility companies need robust networking solutions to manage their systems efficiently. The Cisco IE-2000-4TS-G-B is designed to withstand harsh conditions, making it an ideal choice for use in these applications. Its resistance to environmental factors and advanced security features ensure the reliability and security of water treatment and utility operations.
Harsh Environments
Beyond these specific use cases, the Cisco IE-2000-4TS-G-B is a versatile choice for any industry where environmental conditions are challenging. Whether it’s extreme temperatures, exposure to dust and humidity, or the need for network redundancy to ensure network uptime, this switch offers a reliable networking solution.
Benefits of Using Cisco IE-2000-4TS-G-B
Choosing the Cisco IE-2000-4TS-G-B for your industrial networking needs offers a range of benefits. Let’s explore these advantages in detail:
Rugged Reliability
The standout feature of the Cisco IE-2000-4TS-G-B is its rugged design. It is built to endure the harshest industrial conditions, ensuring continuous network operation. Its resistance to extreme temperatures, mechanical stress, and environmental factors makes it an ideal choice for industries where reliability is crucial.
Layer 2 Managed Features
The switch supports Layer 2 managed features, allowing for efficient configuration of VLANs, Quality of Service (QoS), and various security measures. This level of network control is essential for optimizing network performance and ensuring data integrity. It provides the necessary tools for managing a network tailored to the specific requirements of industrial applications.
Enhanced Network Security
Security is a top priority in industrial settings, where sensitive data and critical systems must be protected. The Cisco IE-2000-4TS-G-B switch offers advanced security features, including Access Control Lists (ACLs), Port Security, and 802.1X Authentication. These features ensure that your network remains protected from unauthorized access and potential threats.
Redundancy and Resilience
Network reliability is critical in industrial applications, where even a short downtime can lead to significant losses. This switch includes redundancy features such as Rapid Spanning Tree Protocol (RSTP) and Media Redundancy Protocol (MRP) to ensure network resilience and minimize the risk of network failures. It offers the peace of mind that your network will continue to operate efficiently, even in the face of unexpected network issues.
Versatile Applications
The switch’s versatility allows it to be deployed across a wide range of industries and applications. From factory automation to transportation systems to smart cities, the Cisco IE-2000-4TS-G-B can adapt to diverse networking requirements. Its adaptability and wide range of applications make it a valuable asset in industrial environments.
General Information about the Cisco IE-2000-4TS-G-B
- Manufacturer: Cisco
- Model Number or SKU# IE-2000-4TS-G-B
- Product Series: IE-2000
- Product Type: Ethernet Switch
Total Number of 4 Ports Switch
- Token Ring Port: No
- LRE Port: No
- Uplink Port: Yes
- Bypass: No
- Modular: No
- Management Port: Yes
- USB: Yes
- Stack Port: No
- Number of Network (RJ-45) Ports: 4
Performance of 4 Ports Managed Switch
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-TX
Security
- Authentication type: IEEE 802.1x
- Security algorithms: FIPS 140-2, SSH-2
- Access Control List (ACL): Yes
- SSH/SSL support: Yes
- MAC address filtering: Yes
- BPDU filtering/protection: Yes
- Authentication: MAC-based authentication
- IGMP snooping: Yes
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
- Management methods: Telnet, HTTPS, SNMP, CNA, VLAN
Memory
- Standard Memory: 256 MB
- Maximum Memory: 1 GB
- Memory Technology: DRAM
- Flash Memory: 64 MB
- Memory Card Supported: SD
Reliability
- MTBF: 374,052 Hours
Power Description
- PoE (RJ-45) Port: No
- Input Voltage: 60 V DC
- Power Source: Power Supply
- Redundant Power Supply Supported: Yes
In summary, the Cisco IE-2000-4TS-G-B switch is a rugged and versatile solution for industrial networking needs. Its rugged design, Layer 2 managed features, advanced security, and redundancy options make it an excellent choice for a wide range of applications, from factory automation to smart cities. Its user-friendly configuration and compliance with industrial standards further enhance its appeal in the industrial sector.
When deploying the Cisco IE-2000-4TS-G-B switch, careful consideration of installation and setup is essential to ensure that it operates reliably in your specific industrial environment. Regular monitoring and maintenance will help keep your network in optimal condition, minimizing downtime and maximizing productivity.
By choosing the Cisco IE-2000-4TS-G-B switch, you are investing in a reliable and scalable networking solution that can adapt to the evolving needs of your industrial operations, making it a valuable asset for years to come. Its ruggedness, advanced features, and versatile applications position it as a dependable choice for industrial networking needs.
