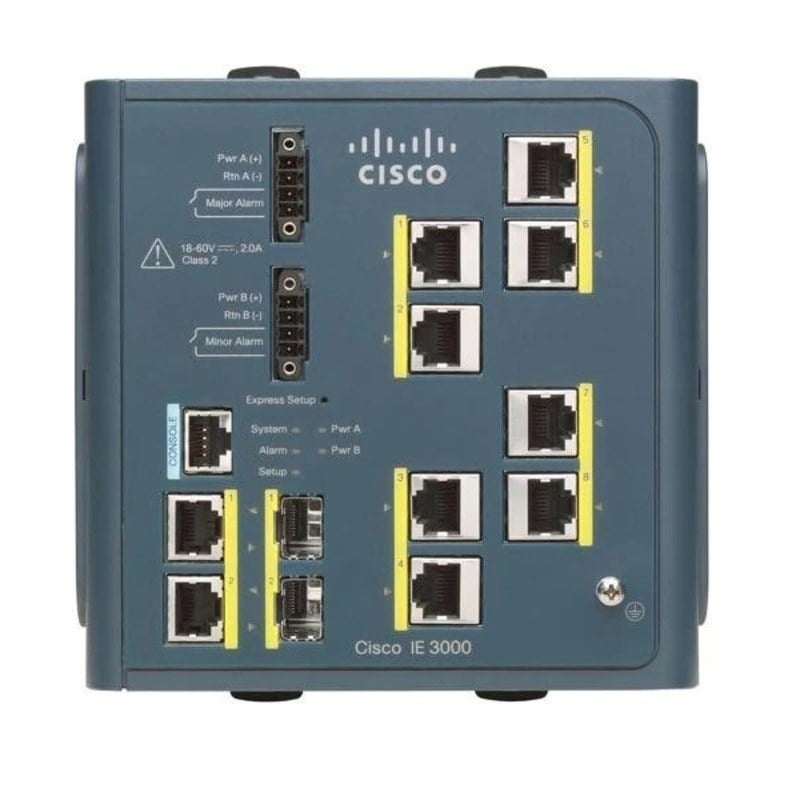

Product Outline of the IE-3000-8TC Cisco 8 Ports Managed Switch
Industrial Ethernet switches play a crucial role in the seamless functioning of industrial networks, facilitating efficient communication and data exchange within industrial environments. The IE-3000-8TC, a member of the Industrial Ethernet 3000 Series, is a robust and feature-rich switch designed to meet the demanding requirements of industrial applications. In this detailed exploration, we will delve into the various aspects of the IE-3000-8TC, focusing on its key features, specifications, and the significance of its design in industrial settings.
Key Features for Industrial Ethernet 3000 Series Ethernet Switch ModuleNumber of Ports
The IE-3000-8TC is equipped with 8 Ethernet ports, providing ample connectivity for industrial devices. Additionally, it boasts 2 Combo Gigabit Small Form-factor Pluggable (SFP) ports, offering versatile connectivity options.
Layer 2 (L2) Managed
The switch operates at Layer 2 of the OSI model, enabling efficient data transfer within the local network. Layer 2 managed switches are essential for optimizing network performance and ensuring reliable communication.
Rack-Mountable Design
The IE-3000-8TC is designed to be rack-mounted, providing a space-efficient solution for industrial environments where space optimization is critical. This design enhances the switch’s adaptability to various industrial setups.
DRAM 128 MB Standard Memory
With a standard memory of 128 MB Dynamic Random-Access Memory (DRAM), the IE-3000-8TC ensures smooth and efficient operation, handling the data processing requirements of industrial applications effectively.
Overview of Industrial Ethernet 3000 Series
The Industrial Ethernet 3000 Series, to which the IE-3000-8TC belongs, is a family of switches specifically engineered for deployment in industrial networks. These switches are tailored to withstand the harsh conditions often encountered in industrial settings, including extreme temperatures, humidity, and vibrations. Let’s explore the overarching characteristics of the Industrial Ethernet 3000 Series that make it a preferred choice in industrial networking.
Robust Construction
Industrial environments present challenges such as dust, moisture, and temperature variations. The Industrial Ethernet 3000 Series switches are built with ruggedness in mind, featuring robust casings and components that can withstand harsh conditions.
Reliability and Redundancy
Industrial processes demand high reliability to ensure continuous operation. The 3000 Series switches often incorporate redundancy features, such as dual power supply inputs and rapid spanning tree protocols, minimizing the risk of network downtime.
Wide Temperature Range
Unlike typical commercial switches, the 3000 Series is designed to operate within a broad temperature range. This makes them suitable for deployment in industrial environments where temperature fluctuations are common.
Security Features
Industrial networks are prime targets for cyber threats. The 3000 Series switches often come equipped with advanced security features, including port security, access control lists (ACLs), and secure management interfaces, enhancing the overall cybersecurity posture of industrial networks.
IE-3000-8TC in DetailEthernet Ports
The IE-3000-8TC’s 8 Ethernet ports offer connectivity for a variety of industrial devices such as PLCs (Programmable Logic Controllers), sensors, and HMIs (Human-Machine Interfaces). The abundance of ports caters to the diverse connectivity requirements of industrial applications.
Combo Gigabit SFP Ports
In addition to the Ethernet ports, the IE-3000-8TC features 2 Combo Gigabit SFP ports. These Small Form-factor Pluggable ports offer flexibility by supporting both copper and fiber optic connections. This versatility is crucial in accommodating the diverse cabling needs of industrial setups.
Layer 2 Management Capabilities
Operating at Layer 2, the IE-3000-8TC provides essential management capabilities for industrial networks. This includes features such as VLAN (Virtual Local Area Network) support, QoS (Quality of Service) configurations, and port mirroring, enabling efficient traffic management and network optimization.
Rack-Mountable Design for Space Efficiency
The rack-mountable design of the IE-3000-8TC makes it easy to integrate into existing industrial setups. The switch’s form factor allows it to be conveniently mounted in standard equipment racks, saving valuable floor space in industrial environments where space constraints are common.
DRAM 128 MB Standard Memory for Efficient Operation
With 128 MB of standard DRAM, the IE-3000-8TC ensures that it can handle the data processing requirements of industrial applications. This memory capacity contributes to the overall efficiency and responsiveness of the switch in managing data flows within the network.
Applications and Use CasesFactory Automation
In manufacturing environments, the IE-3000-8TC can play a pivotal role in connecting and managing the communication between various automated systems. Its rugged design and reliability make it suitable for the demanding conditions of industrial automation.
Process Control
Industries such as chemical processing and oil refining rely on precise process control systems. The IE-3000-8TC’s Layer 2 management capabilities and redundancy features contribute to the seamless operation of critical process control networks.
Smart Grids
The utility sector can benefit from the IE-3000-8TC in the development of smart grids. Its robust construction and security features make it suitable for deploying communication networks that enhance the efficiency and reliability of the electrical grid.
Transportation Systems
In transportation applications, such as railway systems and intelligent traffic management, the IE-3000-8TC can provide the necessary connectivity and resilience to ensure smooth and safe operations.
High-Performance
The Cisco Industrial Ethernet 3000 (IE-3000) 8TC is a Fast Ethernet switch that is capable of delivering data rates of up to 100Mbps on each of its 8 ports. It is equipped with a number of features to help optimize its performance in industrial environments. These features include Quality of Service (QoS) for prioritizing certain types of traffic, as well as Virtual Local Area Network (VLAN) tagging to help segment the network and improve security. The switch is also designed to operate reliably in harsh industrial conditions, with a wide operating temperature range and protection against vibration and shock. It is commonly used in applications where high-performance and reliable networking is required, such as manufacturing, energy, and transportation.
VLAN Configuration and Implementation
The IE-3000-8TC Cisco Industrial Ethernet 8 Ports Managed Switch supports VLAN configuration and implementation, which allows for the creation of separate virtual networks within the same physical network infrastructure. Here are the steps to configure VLANs on the IE-3000-8TC switch:
- Enable VLANs: Enter the global configuration mode and enable VLANs by issuing the “vlan database” command.
- Create VLANs: Create VLANs by issuing the “vlan vlan_id” command, where “vlan_id” is the ID number of the VLAN to be created. Repeat this step to create additional VLANs as needed.
- Assign Ports to VLANs: Assign switch ports to VLANs by issuing the “switchport access vlan vlan_id” command, where “vlan_id” is the ID number of the VLAN to which the port will be assigned. Repeat this step for each port that needs to be assigned to a VLAN.
- Configure VLAN Trunking: To allow VLANs to be carried across multiple switches, configure VLAN trunking by issuing the “switchport mode trunk” command on ports that will carry VLAN traffic between switches.
- Enable Inter-VLAN Routing: If you want to allow communication between VLANs, you need to enable inter-VLAN routing on the switch. To do this, enter the global configuration mode and issue the “ip routing” command.
- Configure VLAN Interfaces: Configure VLAN interfaces by assigning IP addresses to each VLAN interface. To do this, enter the interface configuration mode for the VLAN interface and issue the “ip address” command to assign an IP address and subnet mask to the VLAN interface.
- Verify VLAN Configuration: Verify the VLAN configuration by issuing the “show vlan” command to display a summary of the VLAN configuration on the switch.
General Information about the Cisco IE-3000-8TC 8 Ports Managed Switch
- Manufacturer: Cisco
- Model Number or SKU# IE-3000-8TC
- Product Series: 3000
- Product Type: Ethernet Switch
Interface/Port Summary of Gigabit Ethernet Switch
- Total Network Ports: 10
- RJ-45 Network Ports: 8
- Fast Ethernet Network Ports: 8
- Gigabit Ethernet Expansion Slots: 2
Performance of Managed Switch
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100Base-TX
- Forwarding Rate (64-byte packets): 6.5 Mpps
- Memory:
- DRAM: 128 MB
- Compact Flash: 64 MB
- MAC Addresses (Layer 2): Configurable up to 8000
- MAC Addresses (Layer 3): Configurable up to 2000
- IGMP Multicast Groups (Layer 2): Configurable up to 256
- IGMP Groups/Multicast Routes (Layer 3): Configurable up to 1000
- Unicast Routes (Layer 3): Configurable up to 3000
- Ports: 10/100 and 10/100/1000
- Switching Fabric: 16 Gbps
- I/O Expansions:
- Total Expansion Slots: 6
- Expansion Slot Type: SFP
- SFP Slots: 2
- Layer Supported: 2
- Manageable: Yes
Power Description
- Power Source: Power Supply
Features
- Access Control List (ACL) Support
- Broadcast Storm Control
- DHCP Snooping
- Dynamic ARP Inspection (DAI)
- IGMP Snooping
- Layer 2 Switching
- MAC Address Filtering
- Multicast Storm Control
- Quality of Service (QoS)
- Spanning Tree Protocol (STP) Support
- Unicast Storm Control
- VLAN Support
Remote Management Protocol
- HTTP, HTTPS, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet
Operating Environment
- Operating Temperature:
- -40C to +75C
- -40C to +70C (Vented Enclosure – 40 LFM Air Flow)
- -40C to +60C (Sealed Enclosure – 0 LFM Air Flow)
- -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow)
- -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours)
- Storage Temperature: -40C to +85C
- Operating Relative Humidity: 10 to 95% (non-condensing)
- Operating Altitude: Up to 13,000 ft (3963m)
- Storage Altitude: Up to 15,000 ft (4573m)
Miscellaneous
- Additional Information:
- 2 dual-purpose uplinks (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active)
Compliant Standards
- AS/NZS 3548, BSMI CNS 13438 Class A, CB, CISPR 22, CISPR 24,
- CSA C22.2 No. 60950-1, CSA C22.2 No. 60950-1-03, cUL, EN 50081-2,
- EN 50082-2, EN55022, EN55024, FCC Part 15 A, IEC 60950, IEC 60950-1,
- IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, MIC, NOM, UL,
- UL 508, UL 60950-1, VCCI Class A ITE
Finally, the IE-3000-8TC, as part of the Industrial Ethernet 3000 Series, represents a reliable and efficient solution for industrial networking needs. Its combination of robust construction, Layer 2 management capabilities, and versatile connectivity options make it well-suited for a variety of industrial applications. As industries continue to evolve towards greater automation and connectivity, switches like the IE-3000-8TC play a crucial role in enabling the seamless operation of industrial networks, contributing to increased efficiency and productivity in diverse industrial settings.
