Description
Key Features and Benefits

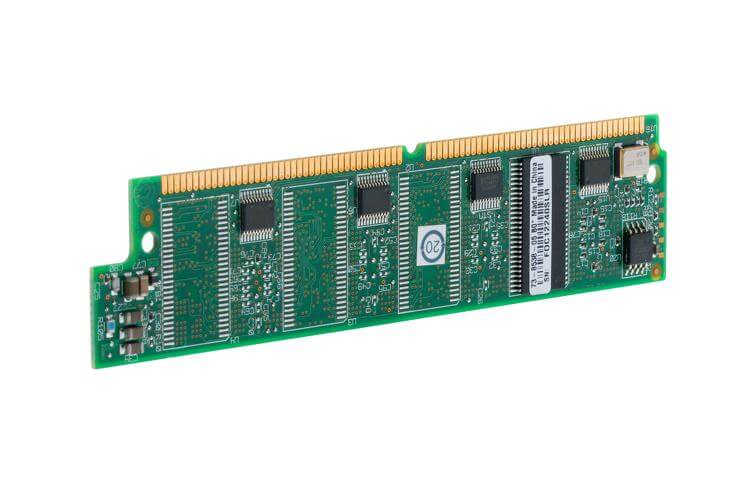

The PVDM2-16= is a 16-channel packet voice/fax digital signal processor (DSP) module designed for use with Cisco IP phone systems. This module provides enhanced voice and fax capabilities, enabling more efficient use of network resources and improved call quality. Some of the key features and benefits of the PVDM2-16= include:
- 16-Channel Capacity: The PVDM2-16= has a 16-channel capacity, providing efficient processing of multiple calls simultaneously.
- Voice Compression: The module supports a range of voice compression algorithms, including G.711, G.729, and G.723.1, providing high-quality voice communications even over low-bandwidth networks.
- Improved Voice Quality: The PVDM2-16= provides improved voice quality through echo cancellation, noise reduction, and automatic gain control.
- Increased Call Processing Capacity: The PVDM2-16= enables increased call processing capacity, allowing for more calls to be processed simultaneously and reducing the risk of dropped calls.
- Efficient Resource Utilization: The module provides efficient resource utilization, reducing the load on the CPU and memory of the Cisco IP phone system.
- Easy Installation: The PVDM2-16= is easy to install and configure, making it simple to upgrade or add new capabilities to an existing IP phone system.
- Integration with Cisco IP Phone Systems: The module integrates seamlessly with a range of Cisco IP phone systems, ensuring compatibility and reducing the risk of compatibility issues.
- Applications: The PVDM2-16= is suitable for use in a range of applications, including voice and fax over IP (VoIP), multimedia conferencing, and voice messaging.
In conclusion, the PVDM2-16= is a powerful and versatile DSP module that provides enhanced voice and fax capabilities for Cisco IP phone systems. The 16-channel capacity, voice compression, and improved voice quality make it ideal for use in a range of applications, while the efficient resource utilization and easy installation make it simple to upgrade or add new capabilities to an existing IP phone system.
Power Supply Requirements
The PVDM2-16= Cisco 16 Channel Packet Voice/Fax DSP Module requires a specific type of power supply in order to function properly. This module requires a DC power supply and is not compatible with an AC power source.
The power supply requirements of the PVDM2-16= include the following:
- The module requires a DC voltage of +12V DC.
- The power supply must provide a minimum of 2 amps of current to power the module.
- The power supply must be compliant with the international safety and electromagnetic compatibility (EMC) regulations.
It is important to note that the power supply requirements for the PVDM2-16= are different from those of other modules, such as the VIC or WIC modules. When installing the PVDM2-16=, it is important to ensure that the correct power supply is used, as using an incorrect power supply can cause damage to the module or the IP phone system.
In conclusion, the PVDM2-16= requires a DC power supply that provides a voltage of +12V DC and a minimum of 2 amps of current. It is important to use a power supply that is compliant with international safety and EMC regulations to ensure proper functioning of the module.
Configuration and Management
The Configuration and Management of PVDM2-16= Cisco 16 Channel Packet Voice/Fax DSP Module involve the setup and administration of the module within a Cisco IP phone system.
Configuration involves the setup and customization of the module to meet the specific needs of the organization. This includes configuring the module’s settings such as the number of channels to be used, compression algorithms to be used, and the type of voice and fax services to be provided. Configuration is typically done using a web-based interface or a command-line interface, which provides a simple and straightforward process for configuring the module.
Management refers to the ongoing administration of the module to ensure it is functioning properly and providing the necessary services. This involves monitoring the module’s performance, troubleshooting issues, and updating the module as needed. Management can be performed using the same web-based interface or command-line interface used for configuration, providing a single platform for managing the module.
In conclusion, the Configuration and Management of the PVDM2-16= Cisco 16 Channel Packet Voice/Fax DSP Module are critical to ensure the module is providing the necessary voice and fax services, while optimizing performance and ensuring the module is functioning properly.
General Information
- Manufacturer Cisco Systems, Inc
- MPN: PVDM2-16=
- Product Name 16-channels Packet Fax/Voice DSP Module
- Product Type PVDM
- SKU: PVDM2-16=
Processor & Chipset
- Processor 1 x Digital Signal Processor
Environmental Conditions
- Temperature 32°F (0°C) to 104°F (40°C) Operating
- Temperature -13°F (-25°C) to 158°F (70°C) Storage
- Humidity 5% to 95% Non-condensing Relative Humidity Non-operating
- Humidity 5% to 85% Non-condensing Relative Humidity Operating
Compatibility
- NM-HDV2
- NM-HDV2-1T1/E1
- NM-HDV2-2T1/E1
Platforms Supported
- 2600XM series
- 2691
- 3700
