Troubleshooting and Maintenance of 24 Ports Switch
The SFE2000P Cisco Small Business 24 Ports Layer 2 Managed Switch can be troubleshooted and maintained using the following steps:
- Check the status of the switch using the web interface or the command-line interface (CLI) to determine if there are any errors or issues.
- Verify the cable connections and the configuration of the switch to ensure that everything is set up correctly.
- Check for any software updates or patches that may be available for the switch and apply them as necessary.
- Monitor the switch’s performance and usage to identify any potential bottlenecks or issues.
- Perform regular backups of the switch’s configuration to ensure that it can be easily restored in case of a failure.
- Schedule regular maintenance to check for any physical issues and to replace any failing components as necessary.
- Use the Cisco Small Business Support Community to find more resources, troubleshooting steps and FAQs.
It is always recommended to have a backup of the configuration before making any changes to the switch, in case of any unexpected issues. And also the switch should be configured properly to work with your network environment.
Simplifying Network Management and Deployment

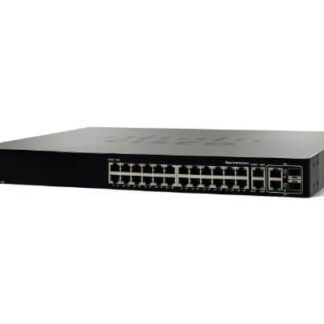

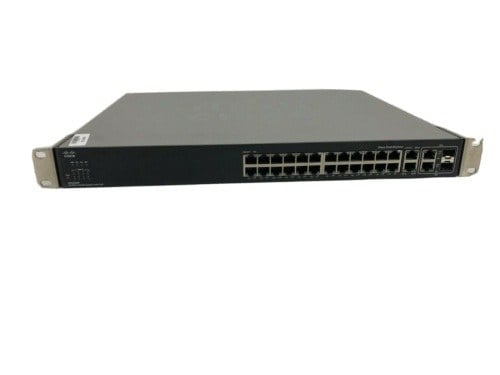

The SFE2000P Cisco Small Business 24 Ports Managed Switch is a powerful and versatile network management solution designed for small and medium-sized businesses. This switch offers a wide range of features and capabilities that make it easy to deploy and manage, even for those with limited IT experience.
One of the key features of the SFE2000P switch is its intuitive web-based interface. This interface makes it easy to configure and manage the switch, even for users who are not familiar with networking concepts. The interface includes a variety of tools and options that allow you to set up and manage VLANs, configure port security, and monitor network traffic.
Another important feature of the SFE2000P switch is its ability to support Power over Ethernet (PoE) on all 24 ports. This allows you to power devices such as IP phones and wireless access points directly from the switch, eliminating the need for additional power supplies or outlets. This feature also helps to reduce costs and improve the overall efficiency of your network.
The SFE2000P switch also includes a number of advanced security features to help protect your network against unauthorized access and attacks. These features include port security, SSH and SSL encryption, and support for access control lists (ACLs). Additionally, the switch supports Quality of Service (QoS) to help ensure that critical network traffic is given priority over less important traffic.
Finally, the SFE2000P switch is designed to be easy to deploy and manage, even in large networks. It includes a variety of management tools and options that allow you to monitor and control the switch remotely, and it can be easily integrated with other Cisco Small Business products to create a complete network solution.
VLAN and QoS support
The SFE2000P Cisco Small Business 24 Ports Layer 2 Managed Switch supports both VLANs and Quality of Service (QoS).
VLAN (Virtual Local Area Network) support allows for the creation of multiple virtual networks on a single physical network. This allows for segmentation of network traffic and increased security by isolating different groups of users and devices. The SFE2000P supports up to 256 VLANs, with the ability to assign different VLAN IDs to different ports on the switch.
QoS (Quality of Service) support allows for prioritization of network traffic based on specific criteria such as IP address, port, or protocol. This ensures that critical traffic such as voice and video have priority over less critical traffic such as file transfers or web browsing. The SFE2000P supports 4 priority queues for QoS, with the ability to assign different priorities to different ports or VLANs.
Overall, the SFE2000P Cisco Small Business 24 Ports Layer 2 Managed Switch provides advanced network management capabilities for small businesses, including the ability to segment network traffic and prioritize critical traffic for a more efficient and secure network.
General Information
- Manufacturer: Cisco Systems, Inc
- MPN: SFE2000P
- Product Name SFE2000P Ethernet Switch
- Product Type Ethernet Switch
- SKU: SFE2000P
Interfaces/Ports
- Total Number of Network Ports 24
- Token Ring Port No
- LRE Port No
- Management Port Yes
- Number of PoE (RJ-45) Ports 24
- Stack Port Yes
- Number of Network (RJ-45) Ports 4
- Port/Expansion Slot Details-
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Performance
- Ethernet Technology Gigabit Ethernet
- Fast Ethernet
- Network Technology 10/100/1000Base-T
- 10/100Base-TX
I/O Expansions
- Number of Total Expansion Slots 2
- Expansion Slot Type SFP
- Shared SFP Slot Yes
- Number of SFP Slots 2
- Network & Communication
- Layer Supported 2
Management & Protocols
- Manageable Yes
- Management-
- SNMP v1, v2c, v3
- RMON 1, 2, 3, 9
- VLAN
- QoS
- Web-based Management
- Syslog
- DHCP
- MIB
- Telnet
Power Description
- PoE (RJ-45) Port Yes
Input Voltage-
- 110 V AC
- 220 V AC
- 48 V DC
- Power Source Power Supply
- Redundant Power Supply Yes
Dimension and Weight
- Height: 1.73 Inch
- Width: 17.32 Inch
- Depth: 14.76 Inch
