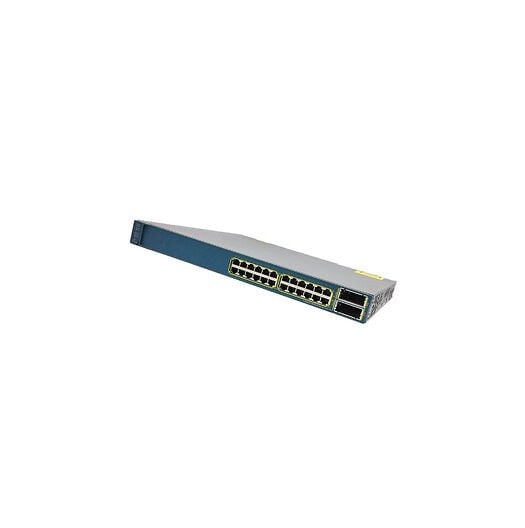

Product Overview of Cisco WS-C3560E-24PD-E Catalyst Switch
The Cisco WS-C3560E-24PD-E Catalyst switch is a type of networking device. It’s designed to help connect multiple computers, servers, and other devices in a network. This specific switch model, the Catalyst 3560E-24PD, comes with several features that make it suitable for various networking needs. In this detailed guide, we’ll explore the specifications, capabilities, and benefits of the Cisco WS-C3560E-24PD-E Catalyst switch.
Exploring of Cisco WS-C3560E-24PD-E Catalyst Switch
The Cisco WS-C3560E-24PD-E Catalyst switch belongs to the Catalyst 3560E series, which is known for its robust performance and advanced features. This particular model offers 24 ports for connecting Ethernet devices. These ports support Fast Ethernet, providing high-speed connectivity for data transfer within the network.
Features of Cisco WS-C3560E-24PD-E Catalyst Switch
- Multi-Layer Switching: The Cisco WS-C3560E-24PD-E Catalyst switch supports multi-layer switching. This means it can operate at different layers of the OSI model, including Layer 2 (Data Link Layer) and Layer 3 (Network Layer). This capability allows for efficient routing and switching of network traffic.
- Layer 4 Support: Additionally, this switch offers Layer 4 support. Layer 4 refers to the Transport Layer of the OSI model, responsible for end-to-end communication and error recovery. With Layer 4 support, the Cisco WS-C3560E-24PD-E Catalyst switch can handle advanced networking protocols and applications that operate at this layer.
- Power Over Ethernet (PoE): One notable feature of the Cisco WS-C3560E-24PD-E Catalyst switch is its Power Over Ethernet (PoE) capability. PoE allows the switch to deliver power to connected devices, such as IP phones, wireless access points, and surveillance cameras, through the Ethernet cables. This eliminates the need for separate power sources for these devices, simplifying installation and reducing costs.
- Scalability: The Catalyst 3560E-24PD series is designed to be scalable, meaning it can accommodate growing network requirements. Whether you’re expanding your network or adding more devices, this switch can adapt to meet the increased demand for connectivity.
- Advanced Security Features: Security is crucial in network environments, and the Cisco WS-C3560E-24PD-E Catalyst switch offers advanced security features to protect against unauthorized access and malicious threats. These features include access control lists (ACLs), port security, and Secure Shell (SSH) encryption for secure remote management.
- High Performance: With its high-performance hardware and software architecture, the Cisco WS-C3560E-24PD-E Catalyst switch delivers fast and reliable network performance. Whether it’s handling high volumes of data traffic or supporting bandwidth-intensive applications, this switch is equipped to meet the demands of modern networks.
- Manageability: The switch is designed for easy management and configuration. It supports various management protocols, including Simple Network Management Protocol (SNMP) and Cisco’s own Cisco Network Assistant (CNA) software, making it simple to monitor and control network operations.
Applications of Cisco WS-C3560E-24PD-E Catalyst Switch
The Cisco WS-C3560E-24PD-E Catalyst switch is suitable for various applications across different industries:
- Enterprise Networks: In large enterprises, the switch can serve as a central networking device, connecting departments, offices, and data centers. Its scalability, performance, and security features make it an ideal choice for handling the diverse networking needs of modern businesses.
- Education Institutions: Schools, colleges, and universities can benefit from the Cisco WS-C3560E-24PD-E Catalyst switch to support their educational initiatives. Whether it’s facilitating online learning platforms, managing campus-wide networks, or securing sensitive student data, this switch offers the capabilities required for educational environments.
- Healthcare Facilities: Hospitals and healthcare facilities rely on robust network infrastructure to support critical medical systems, communication tools, and patient information management. The Cisco WS-C3560E-24PD-E Catalyst switch provides the reliability, performance, and security needed to ensure seamless operations within healthcare networks.
- Government Organizations: Government agencies and institutions often deal with sensitive information that requires secure and efficient networking solutions. The Cisco WS-C3560E-24PD-E Catalyst switch can meet the stringent security requirements of government networks while offering the scalability and manageability necessary for complex infrastructures.
- Small and Medium-sized Businesses (SMBs): Even smaller organizations can benefit from the features of the Cisco WS-C3560E-24PD-E Catalyst switch. Whether it’s establishing a reliable office network, supporting VoIP communications, or enhancing network security, this switch provides an affordable yet powerful solution for SMBs.
Quality of Service (QoS) and Security Features
The WS-C3560E-24PD-E Cisco Catalyst 24 Ports Ethernet Switch offers several quality of service (QoS) and security features to ensure that network traffic is managed effectively and securely.
QoS Features:
- Class-Based Weighted Fair Queuing (CBWFQ) to ensure that high-priority traffic is given priority over lower-priority traffic.
- Low Latency Queuing (LLQ) to minimize delay for time-sensitive traffic such as voice and video.
- Access Control Lists (ACLs) to control and filter network traffic based on various criteria.
- Quality of Service (QoS) Pre-classify to provide consistent QoS for VPN traffic.
- Weighted Random Early Detection (WRED) to prevent network congestion by selectively dropping packets.
Security Features:
- Advanced Security Imaging (ASI) to protect against malware and other malicious software.
- Cisco TrustSec Security Group Access Control Lists (SGACLs) provide granular security for traffic flowing between security groups.
- Secure Shell (SSH) and Secure Copy (SCP) for secure remote management.
- IEEE 802.1X port-based authentication to control access to the network.
- Dynamic ARP Inspection (DAI) to prevent ARP spoofing attacks.
- FlexVPN for secure remote access
Additionally, the switch also supports Cisco EnergyWise, which allows you to monitor and manage energy consumption on the network.
Features and Capabilities
The WS-C3560E-24PD-E Cisco Catalyst 24 Ports Ethernet Switch is a high-performance switch that offers a variety of features and capabilities for managing and securing enterprise networks. Some of the key features and capabilities of this switch include:
- 24 Gigabit Ethernet ports for high-speed connectivity and data transfer.
- Layer 2 and Layer 3 switching capabilities for advanced routing and traffic management.
- Quality of Service (QoS) features, such as Class-Based Weighted Fair Queuing (CBWFQ) and Low Latency Queuing (LLQ), for prioritizing and managing network traffic.
- Advanced security features, such as Access Control Lists (ACLs) and IEEE 802.1X port-based authentication, for controlling access to the network and protecting against unauthorized access.
- Cisco EnergyWise technology for monitoring and managing energy consumption on the network.
- Support for Power over Ethernet (PoE) for powering network devices such as wireless access points, IP phones, and cameras.
- Support for Cisco’s StackWise technology for stacking multiple switches for increased scalability and resiliency.
- Support for Cisco’s FlexStack technology for stacking multiple switches for increased scalability and resiliency.
- Support for Link Aggregation Control Protocol (LACP) for increased link redundancy and bandwidth.
- Support for Virtual LANs (VLANs) for segmenting and isolating network traffic.
- Cisco Express Forwarding (CEF) for advanced routing capabilities and increased performance.
- Support for Cisco’s OnePK (One Platform Kit) for developing custom applications and automating network tasks.
- Support for Cisco’s Network Plug and Play (PnP) for simplified device discovery and configuration.
In addition to these features, the switch also offers several management and scalability options, including support for Cisco’s Network Assistant (CNA) and Smart Operations tools, as well as Cisco Prime Infrastructure and CiscoWorks for comprehensive network management and visibility.
It also supports Cisco’s DNA Center for network automation, assurance, and security.
Advanced Security and Network Segmentation
The WS-C3560E-24PD-E Cisco Catalyst 24 Ports Ethernet Switch offers advanced security and network segmentation features to help protect and isolate network traffic.
Advanced Security Features:
- Cisco TrustSec Security Group Access Control Lists (SGACLs) to provide granular security for traffic flowing between security groups.
- IEEE 802.1X port-based authentication to control access to the network.
- Dynamic ARP Inspection (DAI) to prevent ARP spoofing attacks.
- Advanced Security Imaging (ASI) to protect against malware and other malicious software.
- Cisco FlexVPN for secure remote access.
- Cisco Identity Services Engine (ISE) for network access control and policy enforcement.
Network Segmentation Features:
- Support for Virtual LANs (VLANs) to segment and isolate network traffic.
- Quality of Service (QoS) for prioritizing network traffic and ensuring that critical applications receive the bandwidth they need.
- Access Control Lists (ACLs) to control and filter network traffic based on various criteria.
- Link Aggregation Control Protocol (LACP) for increased link redundancy and bandwidth.
- Support for IPv6 for increased security and scalability of the network.
These features help to increase the security and reliability of the network by providing granular control over network traffic and isolating different types of traffic from each other. This is especially useful for large and complex networks, where it is important to ensure that sensitive data is protected and that network resources are used efficiently.
General Information about the Cisco WS-C3560E-24PD-E
- Manufacturer: Cisco
- Model Part Number or SKU# WS-C3560E-24PD-E
- Product Line: Catalyst
- Product Series: 3560-E
- Product Model: 3560E-24PD-E
- Product Name: Catalyst 3560-E 24-Port Multi-Layer Ethernet Switch with PoE
- Product Type: Layer 3 Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Number of Network (RJ-45) Ports: 24
- Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Performance
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: X2
Network & Communication
- Layer Supported: 4
Miscellaneous
- Additional Information: IP Services software feature set (IPS)
In general, the Cisco WS-C3560E-24PD-E Catalyst switch is a versatile networking device that offers advanced features and capabilities to meet the demands of modern network environments. From its support for multi-layer switching and Layer 4 protocols to its Power Over Ethernet functionality and advanced security features, this switch is well-suited for a wide range of applications across various industries. Whether you’re managing a large enterprise network, an educational institution, a healthcare facility, a government agency, or a small business, the Cisco WS-C3560E-24PD-E Catalyst switch provides the performance, reliability, and scalability needed to support your networking needs.
