Product Overview of the Cisco 24 Ports Switch
The Cisco WS-C3560G-24PS-S is a robust and versatile networking solution that plays a pivotal role in modern data connectivity. As a Layer 3 Ethernet Catalyst 3560G Switch, it brings a range of features and capabilities to meet the demands of today’s dynamic network environments. In this detailed guide, we will delve into the key aspects of this switch, exploring its specifications, functionalities, and the benefits it offers for businesses seeking reliable and efficient networking solutions.

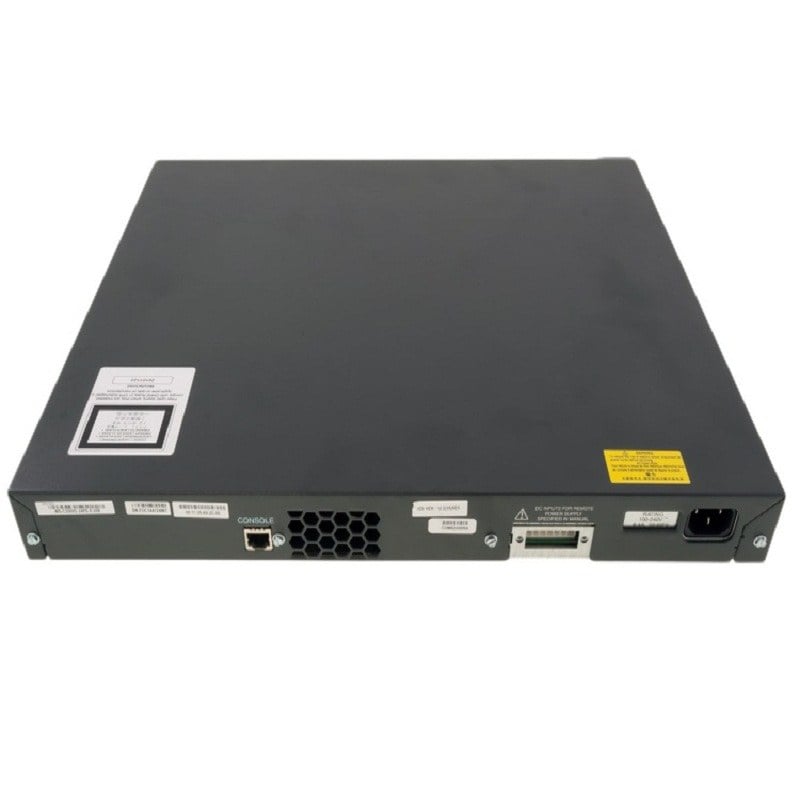

Cisco WS-C3560G-24PS-S
The Cisco WS-C3560G-24PS-S is a member of the Catalyst 3560G Series, known for its advanced features and high-performance capabilities. Let’s start by breaking down its key components and specifications.
The switch is equipped with 24 ports, providing ample connectivity options for various devices within a network. These ports support both data and power, making them Power over Ethernet (PoE) capable. This is particularly advantageous for devices like IP cameras, phones, and access points, as they can receive power and data over a single Ethernet cable, simplifying installation and reducing cable clutter.
Layer 3 Ethernet Capability
Being a Layer 3 switch, the WS-C3560G-24PS-S operates at the network layer of the OSI model. This enables it to make routing decisions, enhancing its capability to intelligently forward data between different subnets. This is crucial for efficient and scalable network management, especially in larger and more complex setups.
Catalyst 3560G Series
Understanding the context of the Catalyst 3560G Series is essential to grasp the switch’s overall design philosophy. Cisco’s Catalyst series is renowned for delivering enterprise-class networking solutions, and the 3560G Series specifically focuses on providing Gigabit Ethernet connectivity with advanced features for optimal performance.
Key Features and Functionalities
Now that we have an overview of the switch, let’s delve into its key features and functionalities that set it apart in the networking landscape.
The Cisco WS-C3560G-24PS-S Catalyst 3560G L3 Ethernet Switch is a high-performance switch that is designed for use in enterprise networks and data centers. It offers a range of features and benefits that make it well-suited for these environments, including:
Gigabit Ethernet connectivity: The switch has 24 Gigabit Ethernet ports, providing fast data transfer speeds of up to 1 Gbps.
Support for Power over Ethernet (PoE): This allows the switch to provide power to devices such as wireless access points and IP phones over the Ethernet cables, eliminating the need for separate power supplies.
Quality of Service (QoS): The switch supports QoS, which allows you to prioritize certain types of network traffic, such as voice or video, to ensure that they are delivered smoothly and without delay.
Gigabit Ethernet Connectivity
The WS-C3560G-24PS-S supports Gigabit Ethernet, offering high-speed data transfer capabilities. With data rates of up to 1000 Mbps, this switch ensures swift and reliable communication between connected devices, minimizing latency and optimizing network performance.
Power over Ethernet (PoE)
One of the standout features of this switch is its Power over Ethernet capability. Each of the 24 ports is PoE-enabled, allowing the switch to deliver both power and data to connected devices. This is particularly advantageous in scenarios where power sources may be limited or inconvenient to access.
Advanced Security Features
Security is a top priority in modern networks, and the WS-C3560G-24PS-S addresses this concern with a range of advanced security features. These include Access Control Lists (ACLs), which enable administrators to control traffic flow based on defined rules, and IEEE 802.1X port security, enhancing access control and authentication.
Quality of Service (QoS)
The switch supports Quality of Service features, allowing administrators to prioritize and manage network traffic effectively. This is crucial for ensuring that critical applications receive the necessary bandwidth and resources, optimizing the overall user experience.
Redundancy and Reliability
To ensure network reliability, the WS-C3560G-24PS-S incorporates features such as Rapid Spanning Tree Protocol (RSTP) and Hot Standby Router Protocol (HSRP). These protocols contribute to network stability by preventing loops and providing redundant paths in case of device or link failures.
Enterprise Networks
In large enterprises with diverse connectivity requirements, the WS-C3560G-24PS-S can serve as a core or distribution switch. Its Layer 3 capabilities enable efficient routing between different subnets, while the abundance of PoE ports simplifies the deployment of IP phones, cameras, and other powered devices.
IP Telephony
The switch’s PoE capabilities make it an ideal choice for IP telephony deployments. Businesses looking to implement Voice over Internet Protocol (VoIP) can leverage the WS-C3560G-24PS-S to power IP phones and ensure seamless communication.
Surveillance Systems
Security is a critical aspect of modern businesses, and the switch’s PoE support is invaluable for surveillance deployments. IP cameras can be easily connected and powered using the switch, simplifying the installation process and reducing the need for separate power sources.
Wireless Networks
For organizations relying on wireless connectivity, the WS-C3560G-24PS-S can act as a central switch for managing access points. The PoE capability allows for a cleaner and more flexible deployment of wireless infrastructure, enhancing overall network accessibility.
Scalability
The switch’s modular design and Layer 3 capabilities contribute to its scalability. Businesses can expand their network infrastructure by adding more switches and seamlessly integrating them into the existing setup. This scalability is particularly advantageous for growing enterprises with expanding connectivity needs.
Compatibility with Emerging Technologies
Cisco is known for staying at the forefront of networking technologies. The WS-C3560G-24PS-S is designed to be compatible with emerging trends and standards, ensuring that businesses can integrate new technologies seamlessly without the need for a complete overhaul of their network infrastructure.
General Information about the Cisco WS-C3560G-24PS-S
- Manufacturer: Cisco
- Model Number or SKU# WS-C3560G-24PS-S
- Product Line: Catalyst
- Product Series: 3560
- Product Type: Ethernet Switch
Interfaces/Ports of 24 Ports Switch
- Total Number of Ports: 24
- Number of Network (RJ-45) Ports: 24
- Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10Base-T, 10/100/1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 3
Memory
- Standard Memory: 128 MB
- Memory Technology: DRAM
- Flash Memory: 32 MB
Management & Protocol
- Routing Protocol: RIP-1, RIP-2, HSRP, static IP routing, RIPng
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
Features
- Full duplex capability, layer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), Auto-negotiation, ARP support, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP)
Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power Description
- Input Voltage: 110 V AC, 220 V AC
- Power Device: Internal power supply
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 113 °F
- Humidity Range Operating: 10 – 85% (non-condensing)
- Min Storage Temperature: -13 °F
- Max Storage Temperature: 158 °F
In summary, the Cisco WS-C3560G-24PS-S stands as a versatile and powerful networking solution, offering a range of features that cater to the diverse needs of modern businesses. From its Gigabit Ethernet capabilities to Power over Ethernet support and advanced security features, this Layer 3 Ethernet Catalyst 3560G Switch excels in various deployment scenarios.
As businesses continue to rely on robust and scalable networking infrastructure, the WS-C3560G-24PS-S remains a compelling choice for those seeking a reliable and future-proof solution. Whether used in enterprise networks, IP telephony setups, surveillance systems, or wireless deployments, this switch embodies Cisco’s commitment to delivering high-performance networking solutions that drive efficiency, security, and connectivity.
