Description
Product Details of the Cisco Managed Switching Module
In the realm of networking solutions, Cisco has consistently been a prominent player, offering a wide array of products tailored to meet the diverse needs of businesses and organizations. One such product that stands out is the Cisco WS-CBS3012-IBM Switching Module, a 14-port Switch. This comprehensive guide aims to delve into the intricacies of this switching module, providing a detailed understanding of its features, capabilities, and how it can be a valuable asset in various networking scenarios.
Understanding the BasicsSwitching Module
A Managed switching module is a crucial component in networking infrastructure that enables the efficient and secure transfer of data between devices within a network. Unlike traditional hubs, which broadcast data to all connected devices, Managed switches Module make intelligent decisions to send data only to the specific device that needs it. This enhances network efficiency, reduces congestion, and improves overall performance.

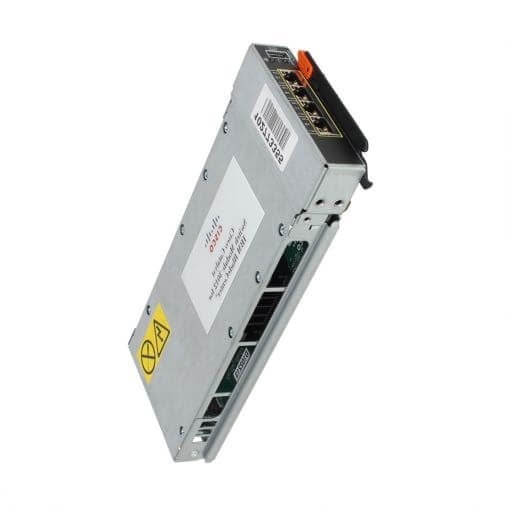

Cisco WS-CBS3012-IBM
The Cisco WS-CBS3012-IBM is a specific switching module designed to cater to the needs of businesses and enterprises. With 14 ports at its disposal, this managed switch offers a robust solution for creating and managing a reliable network.
Features of Cisco WS-CBS3012-IBMPort and Scalability
The 14 ports on the Cisco WS-CBS3012-IBM provide ample connectivity options for various devices within a network. Each port can be strategically utilized to create a scalable and flexible network infrastructure, accommodating the growing demands of an organization.
Managed Switch Capabilities
Being a managed switch, the Cisco WS-CBS3012-IBM offers advanced features for network administrators to configure and optimize network performance. This includes features such as VLAN (Virtual Local Area Network) support, Quality of Service (QoS) settings, and the ability to monitor and manage network traffic.
Layer 2 and Layer 3 Switching
The switching module supports both Layer 2 and Layer 3 switching, adding versatility to its capabilities. Layer 2 switching operates at the data link layer, while Layer 3 switching involves network layer routing. This dual-layer support enables the Cisco WS-CBS3012-IBM to handle a variety of network tasks efficiently.
Power over Ethernet (PoE) Support
Some versions of the Cisco WS-CBS3012-IBM may include Power over Ethernet (PoE) support. This feature allows the switch to deliver electrical power along with data to devices such as IP cameras, phones, and access points over a single Ethernet cable, simplifying the overall network infrastructure.
Redundancy and High Availability
For mission-critical applications, the Cisco WS-CBS3012-IBM incorporates redundancy and high-availability features. This ensures that even in the event of a component failure, the switch can seamlessly switch to backup systems, minimizing downtime and maintaining uninterrupted network operations.
Use Cases and Deployment ScenariosEnterprise Networks
In large enterprises with diverse networking needs, the Cisco WS-CBS3012-IBM can serve as a central component for creating a robust and scalable network. Its managed capabilities allow administrators to fine-tune the network settings according to specific requirements.
Data Centers
The switch’s high port density and advanced features make it well-suited for deployment in data centers. Its support for Layer 3 switching is particularly beneficial in data center environments where routing capabilities are crucial for efficient data traffic management.
IP Surveillance Systems
With Power over Ethernet support, the Cisco WS-CBS3012-IBM becomes an ideal choice for IP surveillance systems. It can power and connect IP cameras, simplifying the deployment of surveillance infrastructure.
VoIP (Voice over Internet Protocol) Networks
For organizations relying on VoIP communication systems, the switch’s QoS settings and Layer 3 support contribute to a reliable and high-quality voice communication experience.
Future-Proofing and Upgradability
Firmware Updates
Cisco regularly releases firmware updates for its networking devices, including the Cisco WS-CBS3012-IBM. These updates may include security patches, performance enhancements, and new features. Regularly updating the switch’s firmware is essential for keeping the network secure and up-to-date with the latest advancements.
Scalability Options
As the needs of an organization evolve, the Cisco WS-CBS3012-IBM provides scalability options. Additional switches can be seamlessly integrated into the existing network architecture, ensuring that the infrastructure can grow in tandem with the organization.
Suitable Performance
The WS-CBS3012-IBM Cisco Catalyst Module is a high-performance switching module that is designed to provide fast and reliable data transfer in enterprise networks. It is equipped with 14 ports that support Gigabit Ethernet and 10 Gigabit Ethernet speeds, which allow for very high data transfer rates and low latency. Additionally, it supports advanced features such as Quality of Service (QoS) and Virtual LANs (VLANs), which allows to prioritize and segment network traffic to ensure that critical applications and services receive the bandwidth and resources they need.
The module also supports Cisco’s EnergyWise technology, which allows to monitor and manage energy consumption of network devices, this helps to reduce energy costs and improve the overall energy efficiency of the network.
This product Cisco Catalyst Module also supports advanced security features such as Access Control Lists (ACLs) and Cisco’s TrustSec technology, which helps to secure network traffic and prevent unauthorized access to sensitive data.
Compliant Standards
The WS-CBS3012-IBM Cisco Catalyst Module is compliant with a variety of industry standards, which helps to ensure its compatibility and interoperability with other networking equipment. Some of the standards that it complies with include:
- IEEE 802.3: This is the standard for Ethernet, which is the most commonly used networking technology for local area networks (LANs). The module supports 10/100/1000 Mbps Ethernet speeds and is compatible with both copper and fiber-optic cabling.
- IEEE 802.3u: This standard defines the requirements for 100BASE-TX and 100BASE-FX Fast Ethernet, which provide faster data transfer rates than traditional Ethernet.
- IEEE 802.3ab: This standard defines the requirements for 1000BASE-T Gigabit Ethernet, which provides even faster data transfer rates than Fast Ethernet.
- IEEE 802.3x: This standard defines the requirements for flow control in Ethernet networks, which helps to prevent data loss and ensure reliable data transfer.
- IEEE 802.1Q: This standard defines the requirements for VLAN tagging, which allows for the creation of multiple virtual LANs on a single physical network.
- IEEE 802.1p: This standard defines the requirements for Quality of Service (QoS) in Ethernet networks, which allows for the prioritization of different types of network traffic.
- IEEE 802.3af: This standard defines the requirements for Power over Ethernet (PoE), which allows network devices to receive power over the same cable that is used for data transfer.
General Information about the Cisco WS-CBS3012-IBM
- Manufacturer: Cisco
- Model Number or SKU# WS-CBS3012-IBM
- Product Model: 3012
- Product Type: Switching Module
Technical Information
- Application/Usage: Switching Network
Interfaces/Ports
- Interfaces/Ports Details
- 4 x RJ-45 10/100/1000Base-T LAN
- 1 x Console Management
Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5e
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
Miscellaneous
- Additional Information
- 14 x Internal 1000BASE-X Ethernet downlink ports
- 1 x Internal 100BASE-T Ethernet management port
- Cisco IOS Compatibility:
- IBM BladeCenter
Compatibility
- Works with IBM BladeCenter
Finally, the Cisco WS-CBS3012-IBM Switching Module stands as a reliable and feature-rich solution for building and managing robust networks. Its 14-port configuration managed capabilities, and support for advanced features make it suitable for a variety of applications, from enterprise networks to data centers and specialized environments like IP surveillance and VoIP networks. Understanding its features, deployment scenarios, and management options is crucial for maximizing the benefits of this switching module in diverse networking environments. Whether you are an IT professional configuring a network or a business decision-maker evaluating networking solutions, the Cisco WS-CBS3012-IBM Switching Module deserves consideration for its versatility, reliability, and future-ready design.
