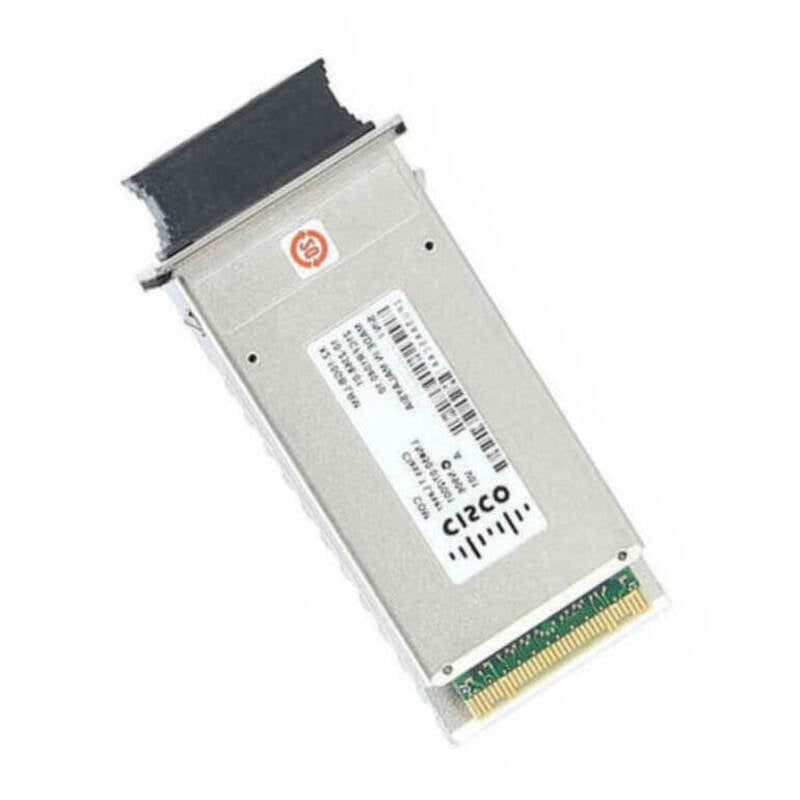

Product Overview of the Cisco 10Gbps Transceiver Module
In the rapidly evolving landscape of networking technology, Cisco has established itself as a frontrunner, consistently introducing cutting-edge solutions to meet the ever-growing demands of the industry. One such innovation is the Cisco X2-10GB-LRM, a 10Gbps Ethernet Transceiver Module designed specifically for Ethernet applications. In this comprehensive guide, we will delve into the intricacies of the Cisco X2-10GB-LRM, exploring its features, applications, benefits, and how it contributes to the advancement of high-speed data transmission.
Understanding the BasicsCisco X2-10GB-LRM
The Cisco X2-10GB-LRM is a transceiver module, a crucial component in networking that facilitates the transmission and reception of data between devices. Specifically, this module is designed to operate at a speed of 10 gigabits per second (Gbps) and is optimized for Ethernet applications. It plays a pivotal role in enabling high-speed connectivity and data transfer within networks.
Transceiver Module
A transceiver module, short for transmitter-receiver module, is a crucial component in networking that enables the transmission and reception of data between devices. These modules are commonly used in Ethernet networks to facilitate communication over various distances.
Importance of High-Speed Transceivers
As data-intensive applications and technologies become more prevalent, the need for high-speed transceiver modules has grown exponentially. The Cisco X2-10GB-LRM addresses this demand by offering a 10 gigabits per second (Gbps) data transfer rate, ensuring efficient and rapid data communication within a network.
Key FeaturesForm Factor and Compatibility
The X2-10GB-LRM module adheres to the X2 form factor, a standardized design for hot-swappable transceiver modules. This ensures compatibility with a wide range of networking devices, adding flexibility to its deployment.
Data Rate and Performance
Operating at a remarkable speed of 10Gbps, the X2-10GB-LRM provides exceptional performance, making it suitable for bandwidth-intensive applications, such as high-definition video streaming, large file transfers, and data center operations.
Long-Reach Multimode Fiber (LRM) Support
The LRM feature of the module allows for long-distance data transmission over multimode fiber, extending the reach of Ethernet connections. This is particularly beneficial in scenarios where traditional Ethernet modules may face limitations in distance.
Hot-Swappable Design
The hot-swappable nature of the module means that it can be replaced or installed without powering down the entire network, minimizing downtime and enhancing overall network reliability.
Applications of Cisco X2-10GB-LRMData Centers
In the dynamic environment of data centers, where speed and reliability are paramount, the Cisco X2-10GB-LRM finds extensive applications. Its 10Gbps data rate is well-suited for handling the massive volumes of data generated and processed within these facilities. The hot-swappable design further contributes to the efficiency of data center operations, allowing for upgrades or replacements without disrupting critical services.
Enterprise Networks
Enterprise networks, encompassing large-scale corporate environments, benefit significantly from the high-speed capabilities of the X2-10GB-LRM module. It facilitates seamless communication between various departments, supports bandwidth-intensive applications, and ensures a robust and reliable network infrastructure.
Telecommunication Networks
Telecommunication networks, dealing with the transmission of voice, data, and multimedia over long distances, leverage the Cisco X2-10GB-LRM for its long-reach multimode fiber support. This feature extends the reach of Ethernet connections, making it a valuable component in telecommunications infrastructure.
Benefits of Cisco X2-10GB-LRMEnhanced Bandwidth
The 10Gbps data rate of the Cisco X2-10GB-LRM translates to a significant enhancement in bandwidth. This is crucial for meeting the increasing demand for faster data transfer and supporting applications that require substantial network resources.
Flexibility and Compatibility
The X2 form factor ensures compatibility with a diverse range of networking devices. This flexibility allows organizations to integrate the Cisco X2-10GB-LRM seamlessly into their existing network infrastructure, eliminating the need for extensive upgrades.
Improved Network Reliability
The hot-swappable design of the module contributes to improved network reliability. Network administrators can perform upgrades or replacements without causing disruptions, minimizing downtime and ensuring continuous connectivity.
Long-Reach Multimode Fiber Support
The LRM support enables the module to transmit data over longer distances using multimode fiber. This is particularly advantageous in scenarios where the standard reach of Ethernet connections may be insufficient, providing a solution for networks with extended physical layouts.
General Information about the Cisco X2-10GB-LRM
- Manufacturer: Cisco
- Model Number or SKU# X2-10GB-LRM
- Product Type: Transceiver Module
Performance of the Transceiver Module
- Maximum Data Transfer Rate: 10 Gbps
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Multi-mode
- Ethernet Technology: 10 Gigabit
- Ethernet Network Technology: 10GBase-LRM
Interfaces/Ports of 10 Gbps Transceiver
- Interfaces/Ports: 1 x 10GBase-LRM
- Interfaces/Ports Details: 1 x SC Duplex 10GBase-LRM Network
- Application/Usage: Optical Network
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 158 °F
Key Features
- Compatible with X2 MSA
- Support of IEEE 802.3ae 10GBASE-LRM at 10.3125Gbps
- Transmission Distance up to 220m (used with Mode Conditioning Patch Cables)
- FP Laser at 1310nm
- Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
- Management and control via MDIO 2-wire interface
- Power Supply: +3.3V, APS(+1.2V)
- Diagnostic Optics Monitoring
- ROHS-compliant and Lead-Free
- Compatibility with Cisco X2-10GB-LRM
Compatibility
- This versatile transceiver module is compatible with a range of Cisco devices, including:
- Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL
- Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F,
- 3560E-48TD, 3560E-48TD-SD, 4500 Series Supervisor Engine V-10GE, 4948 10 Gigabit Ethernet Switch
- Cisco ME 4924-10GE
- Cisco Supervisor Engine II-Plus-10GE
Outline, the Cisco X2-10GB-LRM 10Gbps Transceiver Module Ethernet is a versatile and high-performance solution for modern networking requirements. With its advanced features, compatibility with Cisco devices, and seamless integration into various network environments, this transceiver module plays a crucial role in enabling fast and reliable data transfer. Whether used in data centers, enterprise networks, or telecommunications settings, the Cisco X2-10GB-LRM contributes to the efficiency and performance of networking infrastructures. Regular maintenance and adherence to best practices ensure the longevity and optimal functioning of this essential networking component.
