Product Overview

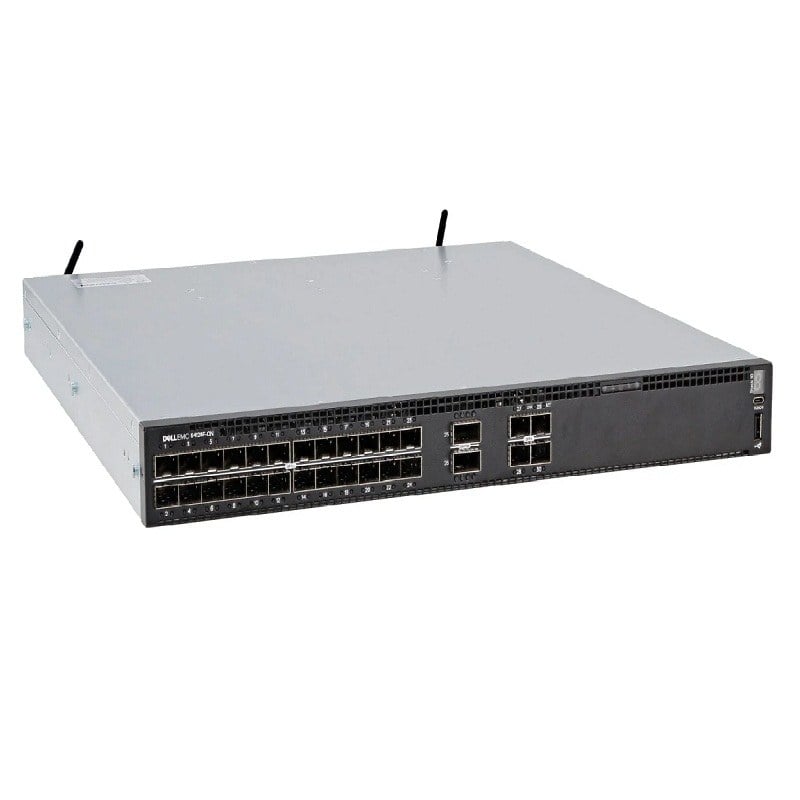

Dell is a well-known brand in the computer and networking industry, and its 210-ALTG Series S4128F-ON Networking Switch is one of the most popular switches among businesses of all sizes. This switch is a layer 2 and layer 3 switch that supports up to 28 ports with 10Gbps speeds. In this article, we will take a closer look at the Dell 210-ALTG Series S4128F-ON Networking Switch and explore its features and capabilities in detail.
Product Specification of Network Switch
Before diving into the Dell 210-ALTG Series S4128F-ON Networking Switch, let’s first discuss what a network switch is. A network switch is a device that connects multiple devices together in a local area network (LAN). It acts as a mediator between devices and enables them to communicate with each other. The primary function of a network switch is to forward data packets between devices on the same network.
Layer 2 and Layer 3 Switches
Network switches come in two types: Layer 2 and Layer 3 switches. Layer 2 switches operate at the data link layer of the OSI model and forward data packets based on MAC addresses. They are primarily used in LANs and can be used to segment a network into smaller subnets to reduce network congestion.
On the other hand, Layer 3 switches operate at the network layer of the OSI model and can forward data packets based on IP addresses. They are used to interconnect multiple LANs and are commonly used in large enterprise networks. Layer 3 switches can route traffic between different subnets, making them ideal for organizations that need to manage a large number of users and devices.
High Speeds and Low Latency
The Dell 210-ALTG Series S4128F-ON Networking Switch supports 10Gbps speeds on all ports, making it ideal for businesses that require high-speed connectivity between devices. It also has a low latency rate, which means that data packets can be forwarded quickly and efficiently between devices.
Easy Management
The Dell 210-ALTG Series S4128F-ON Networking Switch can be managed using the Dell Networking Operating System (DNOS 9). DNOS 9 is a web-based management system that allows network administrators to configure and manage the switch easily. It also supports SNMP, which allows the switch to be integrated into third-party management systems.
Layer 2 and Layer 3 Functionality
The Dell 210-ALTG Series S4128F-ON Networking Switch supports both layer 2 and layer 3 functionality, making it ideal for businesses that require a switch that can handle both types of traffic. It supports a range of layer 2 protocols, including VLANs, STP, and LACP, as well as layer 3 protocols such as OSPF, BGP, and PIM.
High Availability
The Dell 210-ALTG Series S4128F-ON Networking Switch supports several high availability features, including link aggregation, which allows multiple ports to be combined to increase bandwidth and provide redundancy. It also supports virtual Router Redundancy Protocol (vRRP), which provides redundant routing paths in the event of a failure.
Security Features
The Dell 210-ALTG Series S4128F-ON Networking Switch supports several security features, including access control lists (ACLs) and port security.
General Information about the Dell 210-ALTG
- Manufacturer: Dell
- Part Number or SKU# 210-ALTG
- Product Type: Switch
Product Information for Dell 28 Port Switch
- Ports: 28 X 10GB SFP+
- Accessory Ports: 2 X 100GB QSFP28
- Power Over Ethernet (poe): No
- Layer: Layer 3
- Power Supplies Installed: 2 X 550w Hot Swap Power Supply Units.
- Air Flow: Normal Airflow – Io To Psu.
- Module Expansion Slots: N/a
- Management: Console Management.
- Chassis Type: 1u Rack Mounted.
- Rack Mounting Kit: Rack Rails Included.
