Description

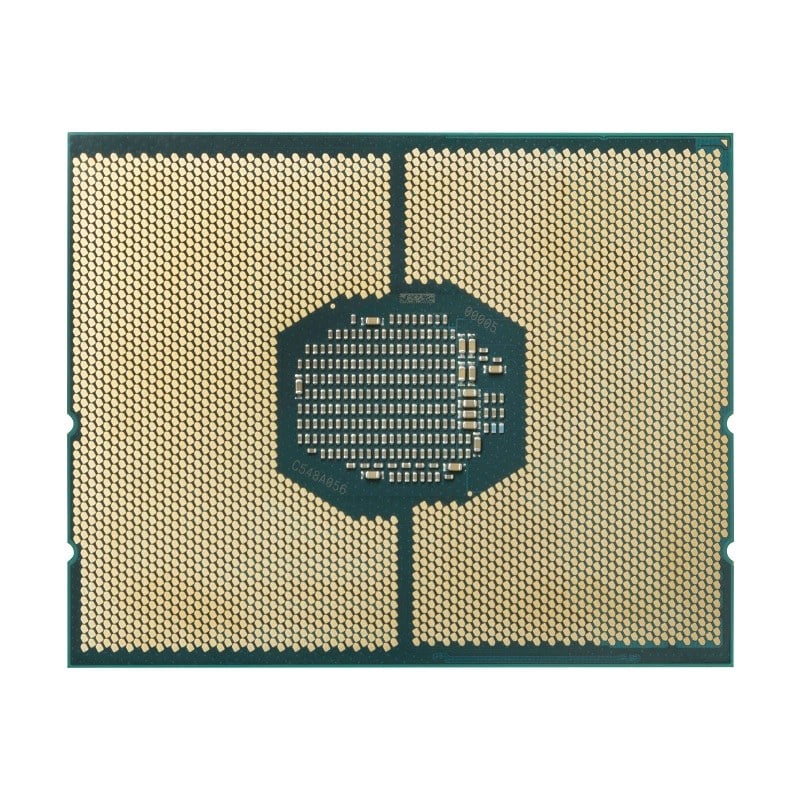

Overview to the 1113D Dell 3.00GHz 35.75MB Cache Xeon
The 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R 24-Core Processor Upgrade is a powerful and high-performing CPU designed for advanced computing applications. This processor is specifically designed for use with Dell servers and workstations, and it offers a wide range of benefits, including faster processing speeds, larger cache sizes, and improved multi-tasking capabilities. In this article, we will explore the features and specifications of the 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R 24-Core Processor Upgrade in simple English to help readers understand its importance.
Features and Specifications
The 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R 24-Core Processor Upgrade is built on Intel’s Xeon Scalable platform, which delivers exceptional performance, reliability, and scalability. The processor boasts 24 cores, each of which can handle two threads, which means that it can execute up to 48 threads simultaneously. This makes it ideal for running multiple applications at once or performing heavy-duty tasks such as data analysis, virtualization, and artificial intelligence.
In terms of clock speed, the 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R runs at a base clock speed of 3.00 GHz. This can be boosted to 4.40 GHz using Intel’s Turbo Boost Max Technology 3.0, which dynamically increases clock speed to provide optimal performance when you need it most. The processor also has 35.75MB of cache, which allows it to store frequently accessed data closer to the processor for faster access and improved performance.
The 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R also supports DDR4 memory, which is the latest standard in computer memory technology. This allows for faster data transfer rates and improved overall system performance. The processor supports up to 768GB of DDR4 memory, which is ideal for running memory-intensive applications or virtual machines.
Compatibility and Upgradability
In summary, the 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R is specifically designed for use with Dell servers and workstations, making it easy to upgrade your existing system. The processor is compatible with a wide range of Dell PowerEdge and Precision workstations, including the PowerEdge R740, R740xd, R940, and Precision 7920 Tower.
Upgrading to the 1113D Dell 3.00GHz 35.75MB Cache Xeon Gold 6248R is easy, as it can be installed in the same socket as previous generation Xeon processors. This means that you can upgrade your system without having to make any major changes to your hardware or software. The processor also supports Intel’s Advanced Vector Extensions 512 (AVX-512) instruction set, which is designed to improve performance for applications that require complex calculations.
General Information
- Manufacturer: Dell
- Part Number or SKU# 1113D
- Series: Xeon Gold Processor
- Product Model: Gold 6248R
Technical Information
- Processor Family: 2nd Generation Intel Xeon Scalable Processors
- Processor Code Name: Cascade Lake
- Core Stepping: B1
- Manufacturing Technology: 14 nm
- Cores: 24
- Threads: 48
- Max Turbo Frequency: 4.00 GHz
- L3 Cache Size: 35.75 MB
- UPI Links: 2
- Thermal Power: 205 Watts
- Max Memory Size: 1 MB
- Memory Types: DDR4-2933
- Maximum Memory Speed: 2933 MHz
- Memory Channels: 6
- ECC Memory Supported Yes
- Intel Optane DC Persistent Memory Supported Yes
- CPU Socket Type: LGA 3647
- Package Size: 76.0mm x 56.5mm
- TCASE: 75 °C
- Embedded Options Available: No
- Scalability: 2S
- PCI Express: 3.0
- Max # of PCI-E Lanes: 48
Advanced Technologies of Dell PCI-E Processor
- Enhanced Intel SpeedStep Technology
- Intel Deep Learning Boost (Intel DL Boost)
- Intel Hyper-Threading Technology
- Intel Resource Director Technology (Intel RDT)
- Intel Speed Shift Technology
- Intel Transactional Synchronization Extensions
- Intel Turbo Boost Technology 2.0
- Intel Virtualization Technology (VT-x)
- Intel Virtualization Technology for Directed I/O (VT-d)
- Intel vPro Platform Eligibility
- Intel VT-x with Extended Page Tables (EPT)
- # of AVX-512 FMA Units 2
- Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability
- Instruction Set: 64-bit
- Instruction Set Extensions : Intel® Sse4.2, Intel® Avx, Intel® Avx2, Intel® Avx-512
- Execute Disable Bit
- Intel AES New Instructions
- Intel Run Sure Technology
- Intel Trusted Execution Technology
- Mode-based Execute Control (MBE)
