Description

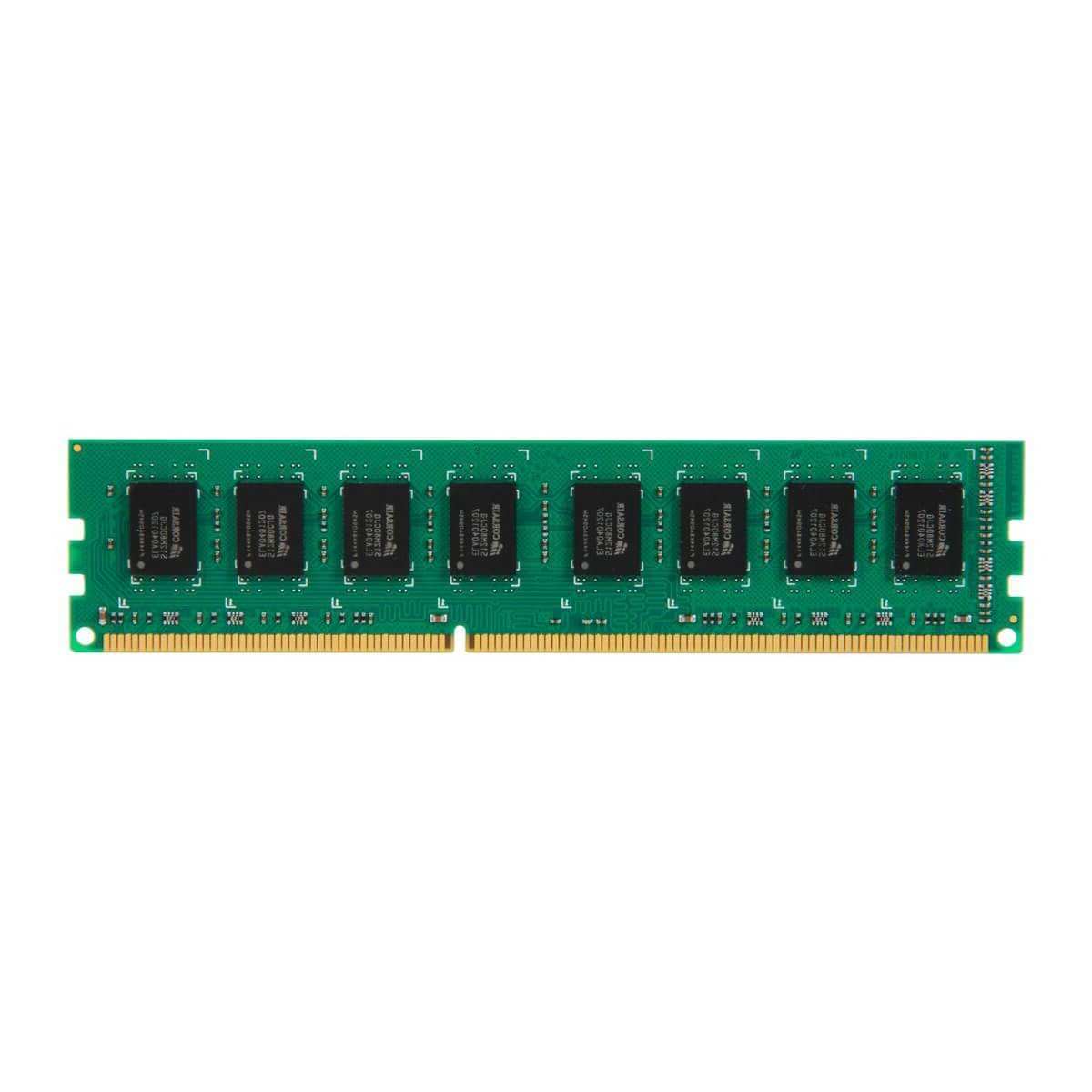

Overview of the DDR3 SDRAM ECC Reg RAM
When it comes to computer systems, memory is one of the most crucial components that determine its overall performance. In particular, servers require a high-performance memory kit to run complex applications, handle large workloads and maintain system stability. The Dell 317-2198 24GB 3X8GB PC3-10600 1333MHZ DDR3 SDRAM Dual Rank Cl9 Ecc Registered 240-Pin Dimm Memory Kit Poweredge is a top-performing memory kit designed specifically for server use. This article provides a detailed explanation of what the Dell 317-2198 24GB memory kit is, how it works, and why it is an excellent choice for server systems.
Specification of Dell 317-2198 24GB Memory Kit
The Dell 317-2198 24GB Memory Kit is a package of three 8GB DDR3 SDRAM modules designed for use in servers. The modules are Dual Rank CL9 ECC Registered 240-pin DIMMs with a memory speed of 1333MHz. The kit is manufactured by Dell, a reputable brand that has been producing computer hardware and software since 1984.
Working Process
The Dell 317-2198 24GB Memory Kit works by providing additional memory capacity to the server system, enabling it to handle more complex tasks and workloads. The memory kit is installed in the DIMM slots of the server’s motherboard, where it provides a high-speed communication channel for the CPU to access stored data. The Dual Rank CL9 ECC Registered feature of the memory kit ensures that the data stored is accurate, reliable and safe from data corruption.
Memory Speed and Type
The memory speed of the Dell 317-2198 24GB Memory Kit is 1333MHz, which means that the modules can transfer data at a rate of 1333 million cycles per second. This speed is considered to be high, and it enables the server system to execute tasks faster and with greater efficiency. The memory type is DDR3 SDRAM, which is a type of synchronous dynamic random-access memory that is commonly used in servers and other high-performance computing systems.
ECC Registered
The Dell 317-2198 24GB Memory Kit is ECC (Error Correcting Code) Registered. ECC memory is a type of memory that is designed to detect and correct errors that occur during data transmission. ECC memory is crucial in server systems, where data accuracy is critical. The Registered feature of the memory kit ensures that the system maintains data accuracy, even in high-stress scenarios.
Dual Rank & 240-Pin DIMM Memory
The Dell 317-2198 24GB Memory Kit is Dual Rank, which means that each module has two sets of memory banks that can be accessed independently. This feature ensures that the server system can access multiple data streams simultaneously, increasing the system’s overall performance. Dual Rank memory is also more efficient and cost-effective than single-rank memory.
The Dell 317-2198 24GB Memory Kit is a 240-pin DIMM (Dual Inline Memory Module). DIMMs are used in server systems to provide additional memory capacity to the system. The 240-pin DIMM form factor is a common form factor used in server systems, and it enables the modules to be easily installed and removed from the system.
Compatibility
The Dell 317-2198 24GB Memory Kit is compatible with a range of Dell PowerEdge server models, including the Dell PowerEdge R610, R710, R815, R510, R415, R710xd, T710, and M610. Compatibility is an essential consideration when purchasing memory kits for servers, as incompatible memory kits can cause system instability and crashes.
Main Specification about the Dell 317-2198
- Manufacturer: Dell
- Part Number or SKU# 317-2198
- Device Type: Memory (RAM)
- Sub-Type: PC3-10600
- Product Type: Ram Module
Technical Information
- Memory Size: 24GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 3 X 8GB
- Memory Speed: 1333 Mhz
- Memory Standard: Ddr3-1333/Pc3-10600
- Signal Processing: Registered
- Error Checking: ECC
- Cas Latency: Cl9
- Pin Count: 240-Pin
- Voltage: 1.35v
- Form Factor: Dimm
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
