Product Overview of the HP 82Q 8GBPS 2 Port

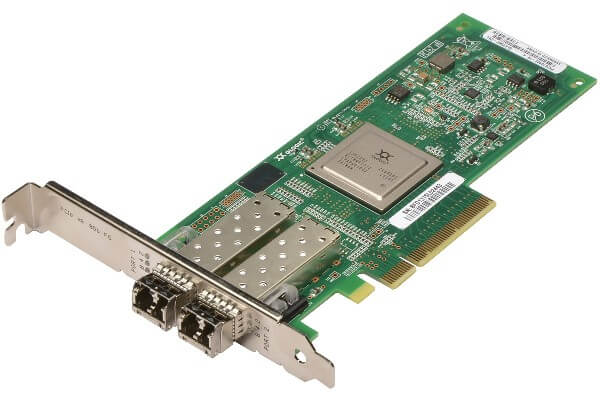

The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket is a type of computer hardware that is used to connect a server to a storage area network (SAN). In this article, we will discuss the various features of this device and explain what they mean in simple terms.
Fibre Channel HBA
A Fibre Channel Host Bus Adapter (HBA) is a type of hardware that is used to connect a computer to a SAN. It acts as an interface between the computer and the SAN and is responsible for sending and receiving data between the two. Fibre Channel is a high-speed networking technology that is used to connect servers to storage devices.
features
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket has several features that make it an ideal choice for connecting servers to SANs. Let’s discuss some of these features in detail.
Speed
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket has a speed of 8Gbps. This means that it can transfer data at a rate of 8 gigabits per second. This high speed is essential for applications that require fast data transfer rates, such as video editing, scientific computing, and financial trading.
Ports
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket has two ports, which means that it can connect to two SANs simultaneously. This is useful for organizations that have multiple SANs or need to connect to backup SANs in case of a failure.
PCI-E Interface
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket connects to the server via a PCI-E interface. PCI-E is a high-speed serial computer expansion bus standard that is used to connect peripheral devices to a motherboard. This interface provides a high-speed data transfer rate and ensures that the Fibre Channel HBA can handle large amounts of data quickly.
Standard Bracket
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket comes with a standard bracket. This means that it can fit into a standard slot in a server or workstation. This bracket ensures that the HBA is securely attached to the server and prevents it from coming loose during operation.
Compatibility
The HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket is compatible with a wide range of operating systems, including Windows, Linux, and VMware. This makes it an ideal choice for organizations that use multiple operating systems or need to run virtual machines.
In Summary, the HP 489191-001 82Q 8Gbps 2 Port PCI-E Fibre Channel HBA with Standard Bracket is a high-speed Fibre Channel HBA that is used to connect servers to storage area networks. It has a speed of 8Gbps, two ports, a PCI-E interface, and comes with a standard bracket. It is compatible with a wide range of operating systems, making it an ideal choice for organizations that use multiple operating systems or need to run virtual machines.
General Information about the HP 489191-001
- Manufacturer: HP
- Part Number or SKU# : 489191-001
- Option Part Number: AJ763B
- Spare Part Number: 697890-001
- Type: Controller
- Controller Type: Host Bus Adapter
Technical Features
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI Express x8
- PCI Specification Revision: PCIe 2.0
- Processor: Emulex
- Expansion / Connectivity
- Expansion Slots: 2 (total) / 0 (free) x SFP+
- Interfaces: 2 x 8Gb Fibre Channel (short wave) – LC Multi-Mode – x 2
- Compatible Slots: 1 x PCI Express 2.0 x4 / PCI Express x8
Networking
- Connectivity Technology: Wired
- Data Link Protocol: 8Gb Fibre Channel (Short Wave)
- Data Transfer Rate: 8.5 Gbps
- Fibre Channel: FC-SP
- Ports: 8Gb Fibre Channel x 2
Miscellaneous
- Included Accessories: Low-Profile Bracket, Full-Height Bracket, 2 x 8 Gb SFP
- Compliant Standards: RoHS
- Software / System Requirements
- OS Required: Linux, Microsoft Windows Server 2003, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5 for Intel x86 / AMD64 / EM64T, Microsoft Windows Server 2008, Red Hat Enterprise Linux 5.1 for Intel x86 / AMD64 / EM64T, Oracle Solaris x86 10
Environmental Parameters
- Humidity Range Operating: 5 – 95%
- Max Operating Temperature: 131 °F
- Min Operating Temperature: 32 °F
Dimensions
- Height: 3.00 inch
- Width: 14.00 inch
- Depth: 10.00 inch
- Weight: 1.50 lbs
Compatibility
- HP ProLiant DL Series: DL160 G6, DL160 G6 Special Server, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL165 G7, DL165 G7 Base, DL165 G7 Entry, DL165 G7 Performance, DL165 G7 Special Server, DL180 G6, DL180 G6 Special Server, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL360 G7 Special Server, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL370 G6 Special Server, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage
- HP ProLiant ML Series: ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML350 G6 Special Server, ML370 G6, ML370 G6 Base, ML370 G6 Entry, ML370 G6 Special Server
- HP ProLiant SL Series: SL210t Gen8 1U Node
- HP Modular Smart Array 1040 Dual Controller SFF Bundle, 2040 SAS Dual Controller LFF Storage, P2000 G3 10GbE iSCSI Dual Controller SFF Array System, P2000 G3 iSCSI Dual Controller SFF Bundle
- HP StoreEasy 3850 Gateway Single Node
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
