Description

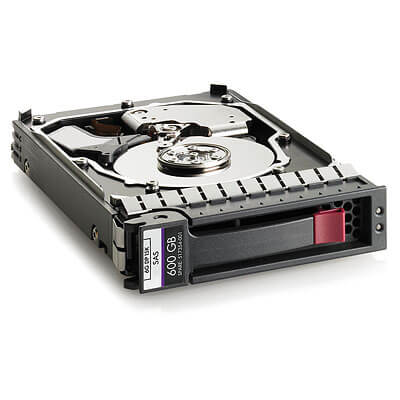

Introduction to the HP 600GB SAS Hard Drive
The HP 600GB SAS (Serial Attached SCSI) Hard Drive is a high-performance, enterprise-class storage device designed for use in servers and storage systems. It is specifically engineered to meet the demanding storage needs of businesses, data centers, and other large-scale operations that require fast, reliable, and high-capacity storage solutions.
The HP 600GB SAS Hard Drive is designed to operate at 15,000 RPM (revolutions per minute), providing fast read and write speeds for data-intensive applications such as databases, virtualization, and online transaction processing. It features a 6 Gbps (gigabits per second) SAS interface, which enables high-speed data transfer and data access.
The form factor of the HP 600GB SAS Hard Drive is 2.5 inches, making it suitable for use in compact server and storage systems. It is a dual-port, hot-swappable hard drive, which means that it can be replaced or removed without shutting down the server or storage system.
Dual Port Configuration and Hot Swap Capability
Dual port configuration and hot swap capability are two important features of enterprise hard drives like the HP 600GB 15K RPM SAS 6Gbps hard drive.
Dual port configuration means that the hard drive has two SAS ports that allow it to be connected to two different controllers simultaneously. This provides redundancy and failover protection in case one controller fails, the other one can take over, ensuring that the system continues to operate without any interruption. In addition, dual ports can provide increased performance by allowing data to be transmitted simultaneously through two channels.
Hot swap capability refers to the ability to replace a failed hard drive without shutting down the entire system. This is important in enterprise environments where downtime can be costly. Hot swapping allows for the quick and easy replacement of a faulty drive, without interrupting the operation of the system. This feature is made possible by the use of drive carriers that can be inserted and removed while the system is running. The hot swap capability is also facilitated by the dual port configuration, which allows the replacement drive to be immediately recognized by the system and take over from the failed drive.
Power Consumption and Environmental Factors
Power consumption and environmental factors are important considerations when selecting and using a hard drive in an enterprise environment.
Power consumption refers to the amount of electrical power that a hard drive requires to operate. This is an important consideration as excessive power consumption can lead to increased energy costs, and can also cause thermal issues that affect system stability and reliability. The HP 600GB 15K RPM SAS 6Gbps hard drive has a typical power consumption of around 11 watts during active operation, which is relatively low for an enterprise-class drive.
Environmental factors refer to the conditions in which a hard drive is operated, including temperature, humidity, and vibration. These factors can affect the reliability and performance of the drive over time. The HP 600GB 15K RPM SAS 6Gbps hard drive is designed to operate in a wide range of environmental conditions, with a temperature range of 50 to 95 degrees Fahrenheit (10 to 35 degrees Celsius), and a maximum operating altitude of 10,000 feet. The drive is also designed to withstand high levels of vibration, making it suitable for use in server and storage environments where multiple drives are in operation.
General Information
- Manufacturer : HP
- Manufacturer Part Number : 581317-002
- Brand Name : HP
- Product Name : SAS 600 Internal Hard Drive
- Product Type : Hard Drive
- Product Model: 581317-002
Technical Information
- Storage Capacity : 600GB
- Rotational Speed : 15000 RPM
- Maximum External Data Transfer Rate : 600 MBPS
- Enclosure : Internal
- Form Factor: Internal
