Introduction to the HP System

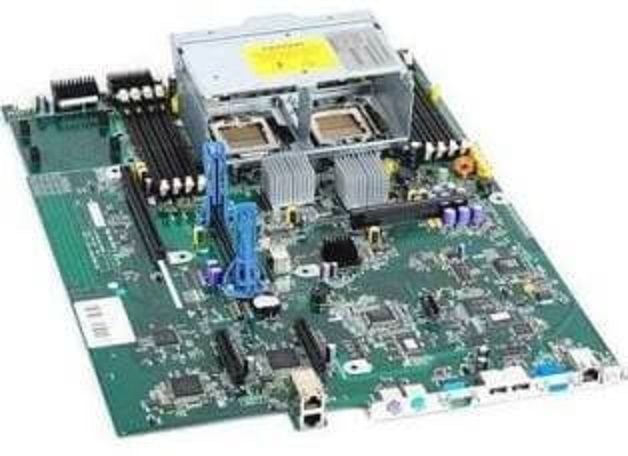

The HP System Board (Bottom) 583747-001 is an essential component for the Proliant G6 BL2X220 and BL2X220C Server. This system board serves as the foundation for all the other components in the server and provides the necessary connectivity and power supply to the other parts.
The HP System Board (Bottom) 583747-001 is designed with high-quality materials and state-of-the-art technology to provide reliable performance and durability for your Proliant G6 Server. It includes multiple ports for connecting external devices, expansion slots for adding additional components, and a powerful processor and memory to handle demanding tasks.
Whether you are upgrading an existing Proliant G6 Server or building a new one, the HP System Board (Bottom) 583747-001 is an essential part of the setup process. With its high-quality design and performance, this system board will ensure that your Proliant G6 Server runs smoothly and provides you with the power and performance you need.
Installation and Configuration Guide
The installation and configuration guide for the 583747-001 HP System Board (Bottom) for Proliant G6 BL2X220 and BL2X220C Server is a comprehensive guide that provides step-by-step instructions for installing and configuring the system board. The following are the steps involved in the installation process:
- Pre-installation checks: Before installing the HP System Board (Bottom), make sure that the server is powered off, and all cables and external devices are disconnected.
- Removing the old system board: To remove the old system board, unscrew the screws holding the board in place, disconnect the cables, and carefully remove the board.
- Installing the new system board: Align the new system board with the slot, connect the cables, and screw the board in place.
- Configuring the system board: After installing the new system board, you need to configure the system settings. This can be done through the server’s BIOS or the HP Systems Manager.
- Post-installation checks: Once the installation and configuration process is complete, check that the server is functioning correctly, and all components are working as expected.
It is important to follow these steps carefully to ensure the successful installation and configuration of the HP System Board (Bottom) for Proliant G6 BL2X220 and BL2X220C Server. If you are not comfortable with the installation process, it is recommended to seek the assistance of a professional technician.
Technical Specifications
The technical specifications of the 583747-001 HP System Board (Bottom) for Proliant G6 BL2X220 and BL2X220C Server are as follows:
- Processor Socket: LGA 1366
- Memory Support: DDR3 1333/1066/800 MHz
- Maximum Memory Capacity: 192GB
- Expansion Slots: 5x PCIe 2.0 x8, 1x PCIe 2.0 x16
- Storage: 6x SAS/SATA ports
- Networking: 2x Gigabit Ethernet ports
- Power Connectors: 2x 8-pin 12V DC
- Form Factor: ATX, 12″ x 9.6″
- Operating System Support: Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
- Warranty: 90-day limited warranty.
These specifications are subject to change depending on the manufacturer or the server model. It is important to check the specifications of the HP System Board (Bottom) before installing it in your Proliant G6 server to ensure compatibility and proper function.
Compatibility of 583747-001 HP System Board
The 583747-001 HP System Board (Bottom) is designed specifically for the Proliant G6 BL2X220 and BL2X220C Server. These servers are designed to be compatible with specific system boards, and the 583747-001 HP System Board (Bottom) is one of them. The compatibility of the system board with the server is essential to ensure that all components work seamlessly together and that the server operates at its optimal performance level. The HP System Board (Bottom) 583747-001 is tested and validated to meet the performance, compatibility, and reliability standards of the Proliant G6 BL2X220 and BL2X220C Server, ensuring seamless integration and optimal performance. In conclusion, the 583747-001 HP System Board (Bottom) is fully compatible with the Proliant G6 BL2X220 and BL2X220C Server, and its compatibility with the server is essential for ensuring optimal performance.
Product Details
- Manufacturer: HP
- Manufacturer Part Number or SKU# 583747-001
- Manufacturer Type: Motherboard
- Manufacture Sub-Type: Server Board
- Product Name: ProLiant
Performance
- HP System Board(Bottom)For Ploliant G6 BL2X220 BL2X220C Server.
