Description

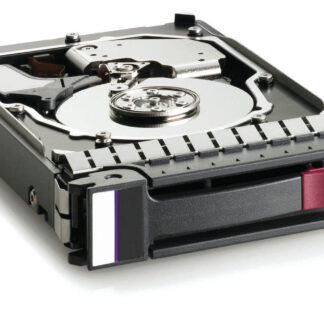

Overview of the HP 1.2TB 10K RPM SAS Hard Drive
The HP 1.2TB 10K RPM SAS Hard Drive is a high-capacity, high-performance storage device designed for enterprise-level applications. It has a storage capacity of 1.2 terabytes and operates at a spindle speed of 10,000 rotations per minute, making it suitable for use in high-speed, data-intensive environments. The hard drive uses a Serial Attached SCSI (SAS) interface and has a data transfer rate of 6 gigabits per second, which provides fast and reliable data access. The hard drive is also equipped with a tray, which makes it easy to install and replace. Overall, the HP 1.2TB 10K RPM SAS Hard Drive is a reliable and efficient storage solution for enterprise-level applications that require high-capacity and high-performance storage.
Power Consumption and Cooling Requirements
The power consumption and cooling requirements of the HP 1.2TB 10K RPM SAS Hard Drive are important considerations when designing a system that incorporates this hard drive.
In terms of power consumption, the hard drive has a typical power usage of 7.5 watts when in operation and 4.0 watts when idle. The hard drive also has a maximum start current of 2.0 amps and a maximum operating current of 1.2 amps. These power requirements are relatively low, which can help to reduce the overall power consumption of a system.
In terms of cooling requirements, the hard drive generates heat during operation, which must be dissipated to prevent damage to the drive and ensure reliable performance. The hard drive is designed to operate within a temperature range of 50 to 95 degrees Fahrenheit (10 to 35 degrees Celsius) and has a maximum operating temperature of 131 degrees Fahrenheit (55 degrees Celsius).
It’s important to ensure that the system has adequate cooling to maintain the hard drive within these temperature ranges. This can include using cooling fans or other cooling solutions to ensure that the hard drive and other components in the system are operating at safe temperatures.
Interface and Connectivity Options of the Hard Disk
The HP 1.2TB 10K RPM SAS Hard Drive uses a Serial Attached SCSI (SAS) interface, which provides high-speed data transfer and reliable connectivity for enterprise-level applications. The SAS interface is a point-to-point interface that enables multiple devices to be connected to a single controller, making it a popular choice for high-performance storage systems.
The hard drive has a data transfer rate of 6 gigabits per second (Gbps), which provides fast and efficient data access. The SAS interface also supports multiple protocol layers, allowing for compatibility with various operating systems and applications.
In terms of connectivity options, the hard drive is designed to be installed in a hot-pluggable drive bay, which makes it easy to install and replace. The hard drive comes with a tray that is designed to fit into a specific drive bay, which provides a secure and stable connection.
Specification
- Part Number : 693648-S21
- Sub-Type : 1.2TB 10K RPM SAS 6GBPS
- Type : Hard Drive (HDD)
- Brand Name : HP
Performance
- Drive Interface : SAS
- Storage Capacity : 1.2TB
- Rotational Speed : 10K RPM
- Maximum External Data Transfer Rate : 768 Mbps (6 Gbps)
- Drive Interface Standard : 6GB/S
- Size : 2.5″
- Drive Type : Internal
