Description

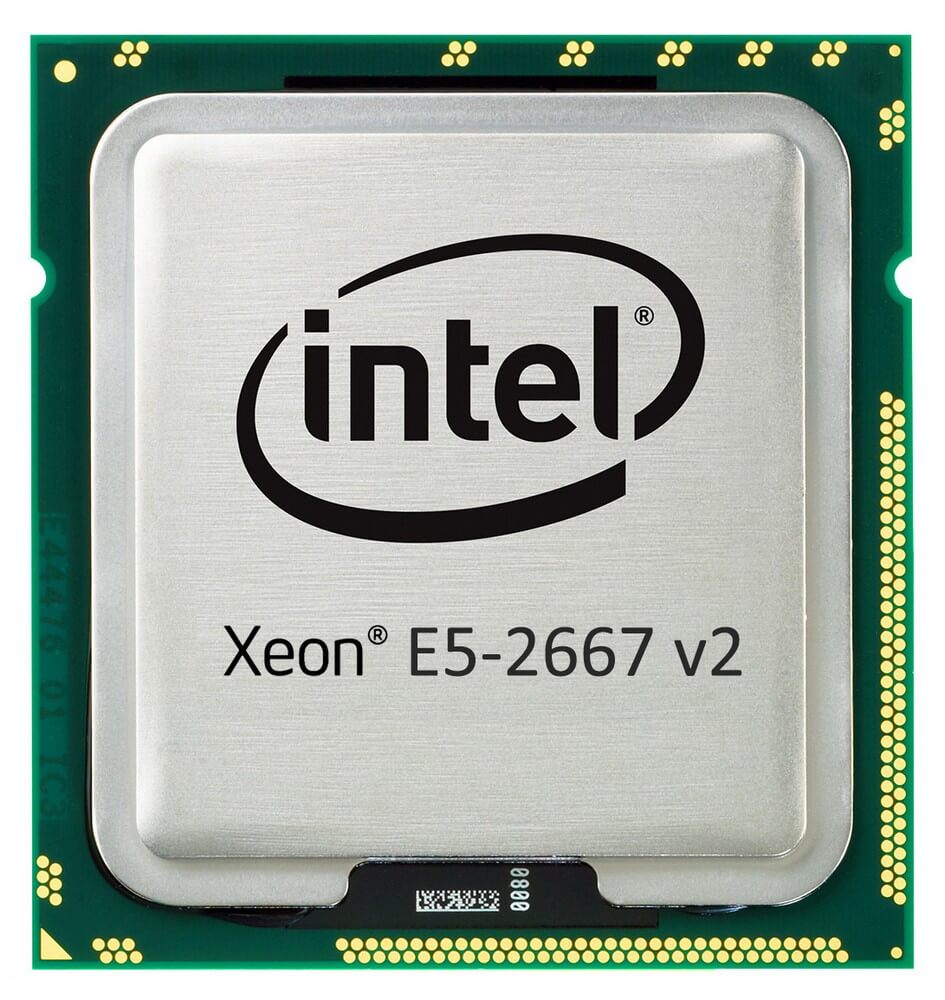

Overview of the 730247-001 HP Intel Xeon
The 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor is a powerful CPU designed for use in high-performance computing environments. It is a third-generation Intel Xeon processor, which means it is built on the Ivy Bridge architecture. In this article, we will take a closer look at the specifications of this processor, including its core count, clock speed, cache size, and power consumption.
Core Count and Clock Speed
The 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor features eight physical cores. These cores can execute up to sixteen threads in parallel using Intel’s Hyper-Threading technology. Hyper-Threading allows the processor to simulate two logical cores per physical core, which can be useful in applications that benefit from parallel processing.
The base clock speed of the processor is 3.3GHz. This means that each of the eight cores can execute instructions at a rate of 3.3 billion cycles per second. This clock speed can be increased through Intel’s Turbo Boost technology, which allows the processor to dynamically adjust its clock speed based on the workload. With Turbo Boost enabled, the processor can achieve a maximum clock speed of 4.0GHz.
Cache Size
The 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor has a large 25MB L3 cache. The cache is a high-speed memory buffer that stores frequently accessed data and instructions. By keeping this data close to the processor, the cache can reduce the amount of time the processor spends waiting for data to be fetched from main memory. This can significantly improve performance in many types of applications, including scientific computing, financial modeling, and database management.
QPI Speed and Socket Type
The processor features a Quick Path Interconnect (QPI) speed of 8GT/s. QPI is an interconnect technology that allows processors to communicate with each other and with other components in a computer system, such as memory and input/output devices. The 8GT/s QPI speed of the 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor provides high bandwidth and low latency for efficient data transfer.
The processor uses a Socket FCLGA 2011 socket, which is a type of socket used for high-end desktop and server processors. The socket has 2011 pins and supports quad-channel DDR3 memory, which allows for high memory bandwidth and large memory capacities.
Manufacturing Process and Power Consumption
The 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor is manufactured using a 22nm process. This refers to the size of the transistors on the processor, which are just 22 billionths of a meter in size. Smaller transistors allow for more transistors to be packed into the same space, which can increase performance and reduce power consumption.
Speaking of power consumption, the 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor has a TDP (thermal design power) of 130W. This means that under typical workloads, the processor will consume up to 130 watts of power. This high power consumption is necessary to provide the high levels of performance that the processor is capable of delivering.
Overall the 730247-001 HP Intel Xeon 8 Core E5 2667 V2 processor is a high-performance CPU designed for use in demanding computing environments. With eight physical cores, a base clock speed of 3.3GHz, and a large 25MB L3 cache, this processor can handle a wide range of compute-intensive tasks.
General Information
- Product Type : Server Processor
- Model Number or SKU# 730247-001
- Product Model : E5-2667 V2
Technical Information
- Processor Core : 8-Core
- Clock Speed : 3.3 Ghz
- Max Turbo Frequency : 4.0 Ghz
- (Qpi) Speed : 8 Gt/S
- Instruction Set : 64-Bit
- Instruction Set Extensions : Avx
Cache Memory Detail
- L3 Cache : 25 Mb
- Lithography : 22 Nm
- Max Thermal Design Power (Tdp) : 130 W
- Compatible Processor Socket : Fclga-2011
