Description
Compatibility of MSA60 Storage
The HP Storage Works MSA60 Storage Unit is a high-performance, scalable storage solution that is designed to work with a variety of host systems and operating environments. It is compatible with a wide range of servers and operating systems, including Windows, Linux, and VMware.
In terms of host connectivity, the MSA60 storage unit supports both SAS and Fibre Channel host connections, which allows for flexibility in terms of host connectivity options.
The MSA60 storage unit also supports a wide range of RAID levels, including RAID 0, 1, 5, 6, and 10. This allows for the configuration of the storage system to meet the specific requirements of the environment, whether that be high performance, high availability, or a balance of both.
The AG779A I/O Module is designed specifically to be compatible with the HP Storage Works MSA60 Storage Unit. It is a dual-port SAS I/O module that allows for the connection of two host systems to the MSA60 storage unit. The AG779A I/O Module is also compatible with SAS and SATA hard drives.
In order to ensure compatibility, it is important to verify that the specific host systems and operating systems being used are compatible with the MSA60 storage unit and that the correct version of firmware and drivers are being used. It is also important to refer to the HP Storage Works MSA60 Storage Unit and AG779A I/O Module documentation for specific compatibility information.
Installation and Setup
The general installation process is as follows:
- Power off the MSA60 storage unit and the host system.
- Disconnect all cables from the MSA60 storage unit.
- Locate the I/O Module bay in the MSA60 storage unit.
- Remove the blanking panel from the I/O Module bay.
- Carefully align the AG779A I/O Module with the connectors in the I/O Module bay and gently insert the module.
- Secure the AG779A I/O Module to the MSA60 storage unit with the thumbscrews provided.
- Connect one end of the SAS cables to the AG779A I/O Module and the other end to the host system.
- Power on the MSA60 storage unit and the host system.
- Configure the host system and MSA60 storage unit to recognize the AG779A I/O Module.
The process of configuring the host system and MSA60 storage unit to recognize the AG779A I/O Module may vary depending on the operating system being used. It is recommended to refer to the HP Storage Works MSA60 Storage Unit and AG779A I/O Module documentation for specific instructions on how to configure the module for your specific operating system.
Configuration options
The AG779A I/O Module provides several configuration options that can be used to optimize performance and ensure proper operation with the MSA60 storage unit.
- RAID Configuration: The AG779A I/O Module supports RAID 0, 1, 5, 6, and 10. It is important to configure the module for the appropriate RAID level based on the requirements of the storage system and the level of data protection desired.
- Host Connectivity: The AG779A I/O Module provides dual SAS ports for connecting to host systems. It is important to configure the host connections properly to ensure maximum performance and redundancy.
- Drive Configuration: The AG779A I/O Module is compatible with both SAS and SATA drives. It is important to configure the drives properly for the best performance and to ensure that the drives are recognized by the MSA60 storage unit.
- Firmware Upgrade: The AG779A I/O Module firmware can be upgraded to ensure that the module is running the latest version and to take advantage of new features or bug fixes.
- Event Logging: The AG779A I/O Module provides event logging capability that can be used to monitor the health and status of the module. This allows for easy identification of any issues or problems that may arise.
It is important to refer to the HP Storage Works MSA60 Storage Unit and AG779A I/O Module documentation for specific instructions on how to configure the module and the recommended best practices.
General Information:
- Manufacturer : HP

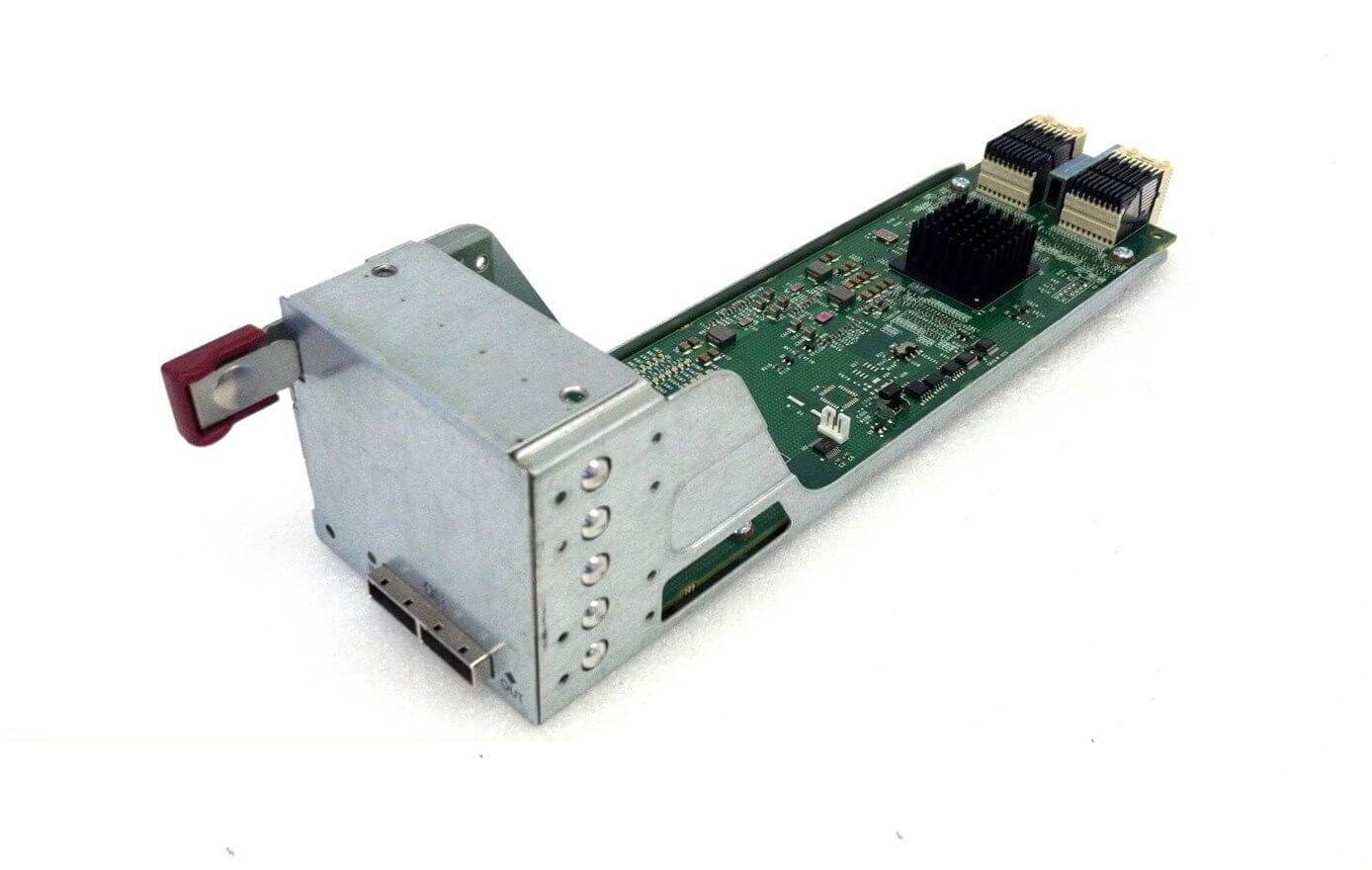

- Manufacturer Part #AG779A
- Product DescriptionHP Modular Dual Domain I/O Module Option Kit – JBOD I/O module – for StorageWorks Modular Smart Array 60 3.6TB, 70, 70 1.7TB
- Product TypeJBOD I/O module
- Designed ForStorageWorks Modular Smart Array 60 3.6TB Dual Domain High Availability Bundle, 70 1.7TB Dual Domain High Availability Bundle, 70 Dual Domain
