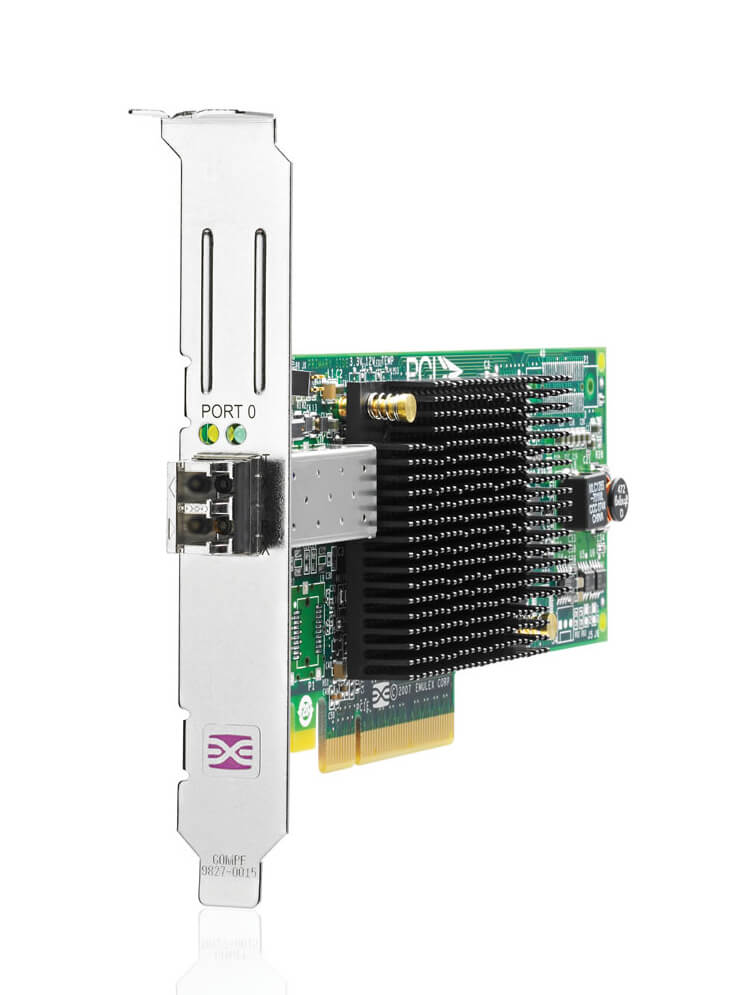

AJ762B HP Storageworks 81E 8GB Single Port PCI Express Fibre Channel Host Bus Adapter | New Bulk Pack

Description

Product Overview of Fibre Channel Host Bus Adapter

The AJ762B HP Storageworks 81E 8GB Single Port PCI-E Fibre Channel Host Bus Adapter (HBA) is a high-speed connectivity solution for storage area networks (SANs). In this article, we will provide an in-depth overview of this HBA, including its features, benefits, and specifications.

Host Bus Adapter (HBA)

A Host Bus Adapter (HBA) is a device that connects a computer system to a Storage Area Network (SAN) to enable data transfer between the computer system and the SAN. It acts as a bridge between the computer and the storage network, providing a high-speed interface for data transfer. The AJ762B HP Storageworks 81E 8GB Single Port PCI-E Fibre Channel Host Bus Adapter is one such HBA.

Features

The AJ762B HP Storageworks 81E HBA has several features that make it an ideal solution for SAN connectivity. Some of the key features of this HBA are:

• High-speed connectivity: The HBA provides 8Gb/s Fibre Channel connectivity, which ensures high-speed data transfer between the computer system and the SAN.
• Single port design: The HBA has a single port design, which means that it can connect only one device to the SAN at a time. This design is ideal for small to medium-sized businesses that do not require multiple device connections.
• PCI Express (PCIe) interface: The HBA connects to the computer system using a PCIe interface, which provides high-speed data transfer between the computer system and the HBA.
• Simple installation: The HBA is easy to install and can be set up in minutes.
• Compatibility: The HBA is compatible with a wide range of operating systems, including Windows, Linux, and VMware.

Benefits

The AJ762B HP Storageworks 81E HBA offers several benefits to users. Some of the key benefits of this HBA are:

• High-speed data transfer: The HBA provides 8Gb/s Fibre Channel connectivity, which ensures high-speed data transfer between the computer system and the SAN. This high-speed connectivity is essential for businesses that require quick access to large amounts of data.
• Single port design: The HBA has a single port design, which makes it an affordable solution for small to medium-sized businesses that do not require multiple device connections.
• Easy installation: The HBA is easy to install and can be set up in minutes. This makes it an ideal solution for businesses that do not have a dedicated IT team.
• Compatibility: The HBA is compatible with a wide range of operating systems, which makes it a versatile solution for businesses that use different types of computer systems.
• Improved performance: The HBA provides improved performance compared to traditional storage solutions, which can result in faster data transfer and improved productivity.

Specifications

The AJ762B HP Storageworks 81E HBA has several specifications that make it a powerful solution for SAN connectivity. Some of the key specifications of this HBA are:

• Connectivity: 8Gb/s Fibre Channel
• Ports: 1 x LC
• Interface: PCI Express (PCIe)
• Data Transfer Rate: Up to 8 Gb/s
• OS Support: Windows, Linux, VMware
• Dimensions: 6.6 x 2.5 x 0.7 inches
• Weight: 0

General Information about the HP AJ762B

• Manufacturer Name: HP
• Part Number or SKU#: AJ762B
• Type: Controller
• Controller Type: Host Bus Adapter

Technical Information

• Device Type: Host Bus Adapter
• Form Factor: Plug-in Card – Low Profile
• Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8

Networking

• Ports: 8GB Fibre Channel
• Connectivity Technology: Wired
• Cabling Type: Fiber optic
• Data Link Protocol: 8GB Fibre Channel (SW)
• Data Transfer Rate: 8.5 GBPS

Dimensions & Weight

• Depth: 6.6 in
• Height: 2.7 in

Environmental Parameters

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 131 °F
• Humidity Range Operating: 5 – 95% (non-condensing)

Compatibility Information

• HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 2040 SAS Dual Controller LFF Storage, P2000 G3 10GbE iSCSI Dual Controller SFF Array System, P2000 G3 iSCSI Dual Controller SFF Bundle
• HPE ProLiant DL Series: DL160 G6, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL165 G7, DL165 G7 Base, DL165 G7 Entry, DL165 G7 Performance, DL180 G6, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage
• HPE ProLiant ML Series: ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry, SL210t Gen8 1U

Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
