Description
Deployment and Installation

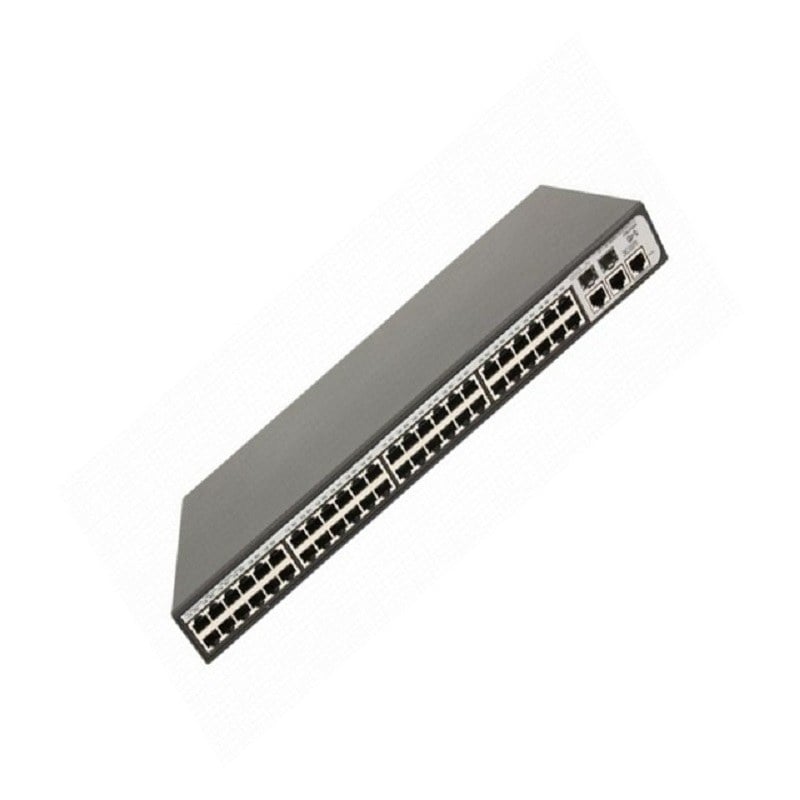

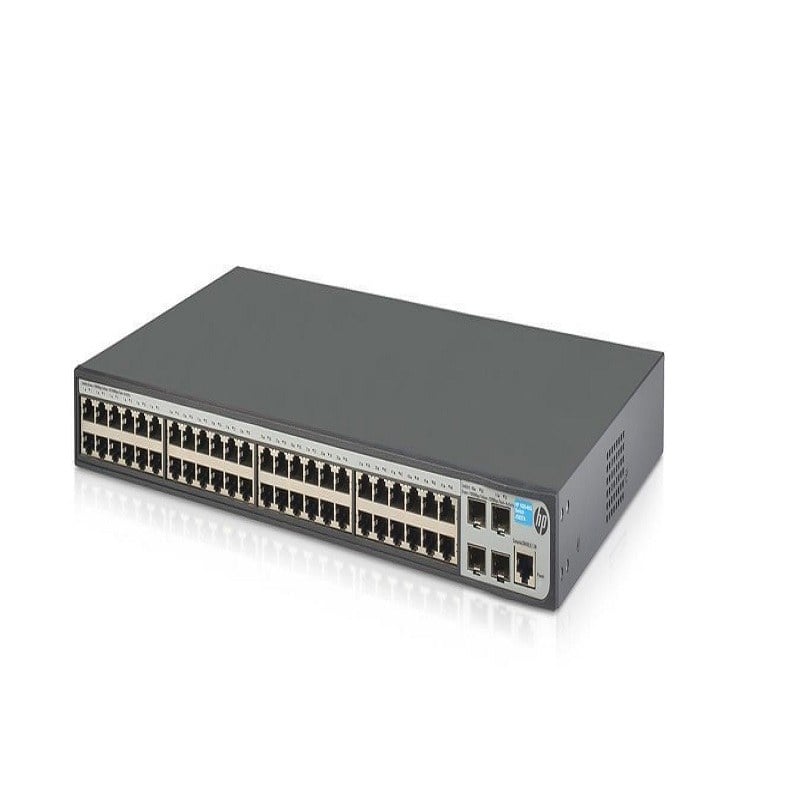

The JG510-61101 HPE 5900AF-48G-4XG-2QSFP+ 48-Ports QSFP+ Rack-Mountable Switch is a high-performance networking device designed for data center and enterprise environments. It is a rack-mountable switch that can be installed in a standard 19-inch rack.
Deployment of the JG510-61101 HPE 5900AF-48G-4XG-2QSFP+ switch involves connecting it to the network infrastructure and configuring it to meet the specific requirements of the organization. This includes setting up VLANs, configuring port security, and establishing routing protocols.
Installation of the JG510-61101 HPE 5900AF-48G-4XG-2QSFP+ switch is a straightforward process. The first step is to install the switch into the rack by mounting the brackets to the switch and then sliding it into the rack. Next, the switch should be connected to power, either through an AC or DC power supply.
Once the switch is installed and powered on, it can be accessed through a console or web interface for initial configuration. This includes setting up the switch’s IP address, username, and password. The switch can then be configured for VLANs, port security, and routing protocols.
Finally, the switch should be tested and monitored to ensure that it is functioning properly and to identify any potential issues. This includes monitoring network traffic, checking for errors, and troubleshooting any problems that may arise.
Advanced Technologies
The JG510-61101 HPE 5900AF-48G-4XG-2QSFP+ is a 48-port rack-mountable switch that utilizes advanced technologies to provide high-performance networking capabilities.
The switch has 48 QSFP+ ports, which support high-speed data transfer rates of up to 40 Gbps per port. This allows for fast and efficient transfer of large amounts of data, making it ideal for use in data centers and other high-bandwidth environments.
The switch also features advanced technologies such as Quality of Service (QoS), which allows for prioritization of different types of traffic and ensures that critical applications receive the bandwidth they need. Additionally, the switch includes Virtual LAN (VLAN) support, which allows for the creation of multiple virtual networks on a single physical network, increasing security and reducing network congestion.
The switch also has 2 QSFP+ ports, which allow for the connection of other devices such as routers and servers. These ports support high-speed data transfer rates of up to 40 Gbps and can be used to link multiple switches together to create a larger network.
Power and Innovation
The JG510-61101 HPE 5900AF-48G-4XG-2QSFP+ 48-Ports QSFP+ Rack-Mountable Switch is a high-performance networking device designed for enterprise and data center environments. It is a rack-mountable switch that features 48 ports of QSFP+ connectivity, allowing for high-speed data transfer and communication between devices.
The switch is powered by HPE’s Advanced Forwarding ASIC (AF-ASIC) technology, which provides high-speed packet processing and advanced features such as Quality of Service (QoS), Virtual Local Area Networks (VLANs), and Link Aggregation Control Protocol (LACP). This allows for efficient and reliable data transfer, even in high-traffic environments.
The switch also features 4×10 GbE uplink ports and 2 QSFP+ ports, which provide additional connectivity options for connecting to other network devices and expanding the network. This makes it ideal for use in data centers and other high-bandwidth environments.
In addition, the switch is designed for easy management and configuration, with support for HPE’s Intelligent Resilient Framework (IRF) and Virtual Switching Framework (VSF). This allows for easy deployment and management of multiple switches, making it ideal for large-scale networks.
General Information about this HPE JG510-61101
- Manufacturer: HPE
- Model Number or SKU# JG510-61101
- Product Type : Layer 3 Switch
- Subtype : 10 Gigabit Ethernet
Interfaces of 48 Ports Switch
- Total Number of Network Ports: 48
- Port/Expansion Slot Details: 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
- 2 x 40 Gigabit Ethernet Expansion Slot
Media & Performance for Layer 3 Switch
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Ram : 2 Gb – Sdram
- Flash Memory : 512 Mb
Features of Ethernet Switch
- Dhcp Support, Arp Support, Vlan Support, Port Mirroring,
- Diffserv Support, Broadcast Storm Control, Ipv6 Support,
- Weighted Random Early Detection (wred),
- Rapid Spanning Tree Protocol (rstp) Support,
- Virtual Route Redundancy Protocol (vrrp) Support,
- Multiple Spanning Tree Protocol (mstp) Support,
- Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard
Power
- Power Device: Internal power supply – hot-plug
- Installed Qty: 0 (installed) / 2 (max)
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (with optional power supply)
- Voltage Required: AC 120/230 V ( 50/60 Hz )
- Power Consumption Operational: 260 Watt
Dimensions & Weight
- Width: 17.3 Inch
- Depth: 18.1 Inch
- Height: 1.7 Inch
- Weight: 28.7 LBS
