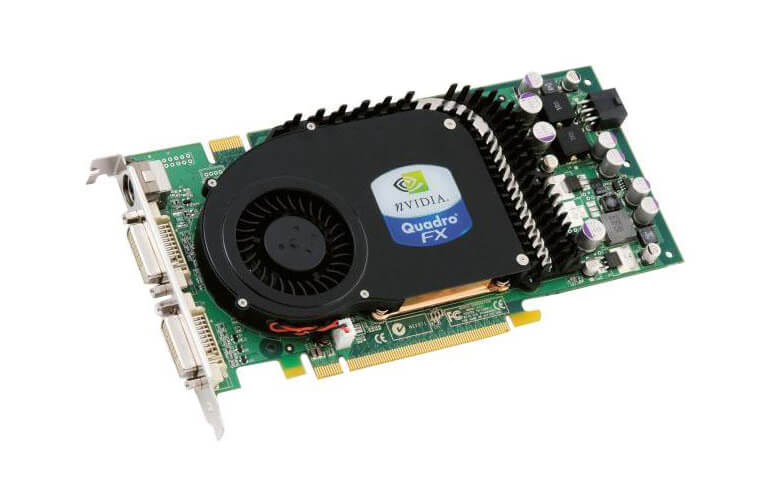

Introduction to the HP Nvidia Quadro FX 3450 Graphics Card
The HP Nvidia Quadro FX 3450 Graphics Card is a high-end professional graphics card designed for use in workstations and other professional computing applications. It was first released in 2005 and features a PCI-Express x16 interface, 256MB of GDDR3 SDRAM, and a powerful Nvidia graphics processor.
The Quadro FX 3450 is designed to deliver high-performance 3D graphics, making it an ideal choice for applications such as CAD, digital content creation, and scientific visualization. It is also certified to work with a wide range of professional applications, including Autodesk, Dassault Systèmes, and PTC software.
The card also supports advanced features such as Shader Model 3.0, which provides support for advanced visual effects, and Nvidia’s PureVideo technology, which allows for smooth playback of high-definition video content.
Specifications and Features of the Quadro FX 3450
Sure! Here are the specifications and features of the HP Nvidia Quadro FX 3450 Graphics Card:
Specifications:
- PCI Express x16 interface
- 256MB of GDDR3 SDRAM
- 400 MHz graphics clock speed
- 256-bit memory interface width
- 32.0 GB/s memory bandwidth
- 400 MHz RAMDACs
Features:
- Support for Shader Model 3.0
- Full support for OpenGL 2.0 and DirectX 9.0c
- Nvidia’s PureVideo technology for smooth playback of high-definition video content
- Dual-link DVI-I output for high-resolution displays
- Two 400 MHz RAMDACs to support analog displays up to 2048×1536 resolution
- High Dynamic Range (HDR) lighting and full-scene antialiasing (FSAA) for improved image quality
- 128-bit floating-point precision for high-quality visual effects
- Nvidia nView multi-display technology for easy management of multiple displays
Compatibility and System Requirements
The HP Nvidia Quadro FX 3450 Graphics Card has specific compatibility and system requirements to ensure it works correctly. Here’s more information on those requirements:
Compatibility:
- The Quadro FX 3450 is compatible with the following operating systems: Windows 2000, Windows XP, and Linux.
- It is also certified to work with a wide range of professional applications, including Autodesk, Dassault Systèmes, and PTC software.
System Requirements:
- The Quadro FX 3450 requires a PCI Express x16 slot to connect to the motherboard.
- The card also requires a minimum of 256MB of system memory (RAM) to function correctly.
- A recommended power supply of 350W or greater is required to power the Quadro FX 3450.
- The card also requires one available PCI Express power connector to provide additional power to the graphics card.
It’s important to note that system requirements may vary depending on the specific workstation or computer in use. It’s essential to check the computer’s manual or specifications to ensure compatibility with the Quadro FX 3450.
Key Features:
- Type: Graphics Card
- Card Interface: Pci EXPRESS X16
- Compatibility: PC
Processor:
- Graphic Processor: Nvidia Quadro FX 3450
- Ramdac Speed: 400 MHZ
Memory:
- Installed Memory: 256MB
- Memory Tech: GDDR3 SDRAM
- Memory Data Width: 256-BIT
- Memory Bandwidth: 3 GB/SEC.
Technical Features:
- Form Factor: Plug-In Card
- Max. Screen Resolution: 2048 X 1536
- Refresh Rate At Max Resolution: 1920 X 1200 @ 75 HZ
- Api Supported: Opengl 2.0 And Directx. 9.0C
- Shader Model: 3.0
Input / Output:
- Display Interface: DVI X 2
- System Requirements:
- Operating System: Windows Xp, 2000, Nt 4.0 (Service Pack 6) Or Linux
Package Contents:
- Vga Card, Drivers Cd, Dvi To Vga Adapter X2, Power Cable
