Description

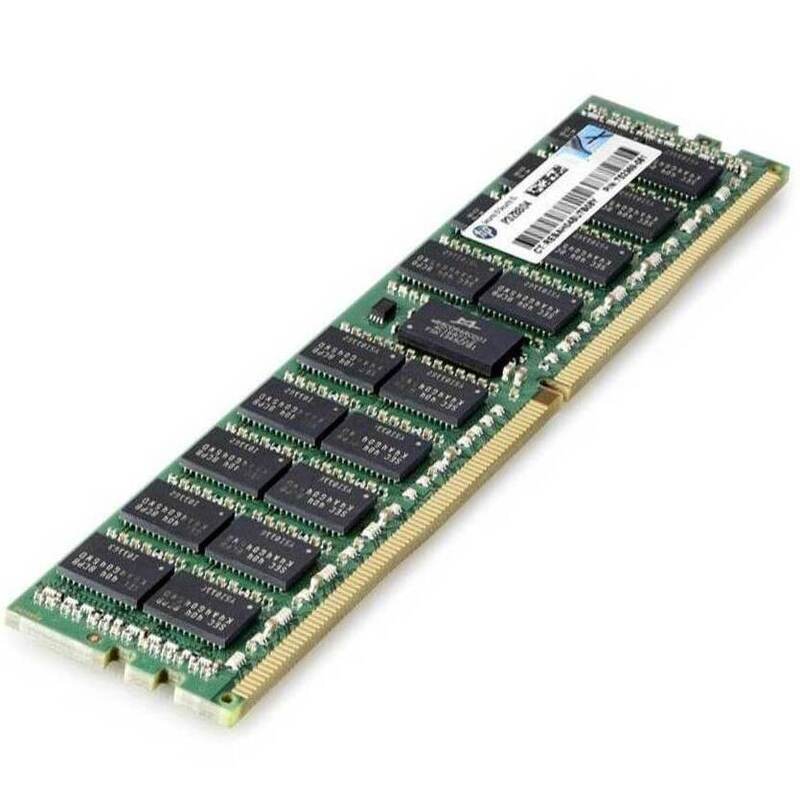

Overview of HPE 256GB RAM
The Overview section of the HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram would provide an overview of the product, including its key features and benefits.
The HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram is a high-performance memory module that is designed for use in servers and high-end workstations. It has a capacity of 256GB, which is suitable for large-scale data processing and storage applications. The memory runs at a speed of 1866 MHz, which is faster than standard DDR3 memory, providing improved performance and faster data transfer rates.
The module is also equipped with Error-correcting code (ECC) feature that ensures the integrity of data stored in memory by detecting and correcting errors. This feature is particularly important for mission-critical applications that require high levels of data accuracy and reliability. The HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram is also 240-pin, which is the standard for DDR3 memory, allowing it to be easily installed and used in a wide range of systems.
Error Correcting Code (ECC) Feature
Error-correcting code (ECC) is a feature that is designed to detect and correct errors that may occur in memory. The HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram is equipped with ECC feature which makes it suitable for use in mission-critical applications that require high levels of data accuracy and reliability.
ECC works by adding extra bits of information to the data stored in memory, called parity bits. These bits are used to detect and correct errors in the data. When data is written to memory, the parity bits are calculated based on the data, and when data is read from memory, the parity bits are recalculated and compared to the stored parity bits. If there is a discrepancy, it indicates that an error has occurred in the data and the ECC feature will automatically correct the error.
This feature is particularly important in applications where data integrity is critical, such as in databases, financial systems, and scientific simulations. ECC memory can also help to prevent data corruption and system crashes caused by memory errors, which can save time and money in the long run.
Installation and Setup
Installing and setting up the HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram is a straightforward process that can be completed by following a few simple steps.
First, ensure that the computer is turned off and unplugged from the power source. Then, open the computer’s case and locate the memory slots. The HPE 256GB 1866mhz Pc3-14900 Ecc DDR3 SDRAM 240-Pin Reg Ram is a 240-pin module, which is the standard for DDR3 memory, so it will fit into any DDR3-compatible memory slot.
Next, carefully align the notches on the module with the notches on the memory slot and gently push down on the module until it snaps into place. Make sure the module is securely seated in the slot and that the tabs on either side of the module are locked in place.
After the module is installed, you’ll need to configure the system BIOS to recognize the new memory. The process for doing this will vary depending on the specific computer and BIOS, but it typically involves entering the BIOS setup utility, going to the memory configuration settings, and adjusting the memory settings to recognize the new module.
Finally, you’ll need to check if the system has recognized the new memory. This can typically be done by going into the system properties or by using a diagnostic tool, it will show the new memory size and the speed.
General Information of this HPE 708641-256
- Brand Name: HPE
- Model Number or SKU# 708641-256
- Type: Memory (RAM)
- RAM Type: Pc3-14900
- Product Name: 256GB DDR3 SDRAM Memory Module
Technical Information about 256GB DDR3 Ram
- Storage Capacity: 256GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 16 X 16GB
- Chips Organization: X4
- Memory Speed: 1866mhz DDR3-1866/PC3-14900
- Data Integrity Check: Ecc
- Features: Dual Rank, Registered
- Supply Voltage: 1.5 V
- Cas Latency Timings: Cl13
- Upgrade Type: System Specific
- Platform Support: Hp Proliant Server
- Form Factor: 240-Pin Dimm
Physical Characteristics of HPE Memory
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility for 256GB DDR3 Ram
- HPE Proliant Bl460c Gen8, Bl660c Gen8, Dl360p Gen8, Dl380p Gen8, Dl560 Gen8, Ml350p Gen8, Sl230s Gen8, Sl250s Gen8, Sl270s Gen8, Ws460c Gen8
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
