Description

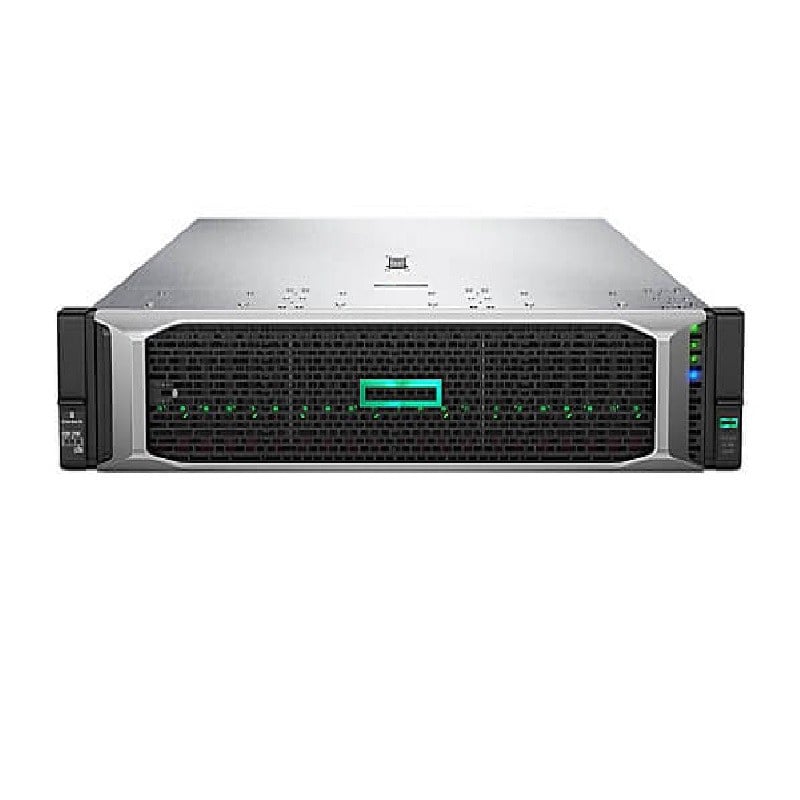

Product Overview of HPE Proliant DL380 Server
The HPE Proliant DL380 G9 is a high-performance 2U rack server designed for enterprise-level applications. It is a customized-to-order (CTO) chassis that comes with a few essential components pre-installed, but requires additional components to be added for full functionality. This article will provide an in-depth explanation of the specifications and features of the HPE Proliant DL380 G9 CTO chassis, including its components, architecture, and capabilities.
Specifications and Components
The HPE Proliant DL380 G9 CTO chassis comes with a few pre-installed components, including the HPE Dynamic Smart Array B140I and 24 SFF (small form factor) hot-plug HDD bays. It also has four Gigabit Ethernet ports for networking. However, it does not come with a CPU, RAM, or hard drives, which must be purchased separately and installed by the user.
Architecture and Design
The HPE Proliant DL380 G9 CTO chassis is designed for high performance and scalability, with a 2U form factor that allows for multiple expansion slots and storage bays. It is built on the Intel Xeon E5-2600 v4 processor family, which provides up to 22 cores per processor and up to 55MB of L3 cache. The server also supports DDR4 SmartMemory, which provides increased memory capacity, performance, and reliability.
Storage and RAID
The HPE Proliant DL380 G9 CTO chassis comes with 24 SFF hot-plug HDD bays that support SAS, SATA, and SSD drives. It also features the HPE Dynamic Smart Array B140I, which supports RAID 0, 1, and 5. The HPE Smart Array P440ar/2GB, P440ar/4GB, and P840/4GB controllers can also be added for additional RAID support.
Networking
The HPE Proliant DL380 G9 CTO chassis comes with four Gigabit Ethernet ports for networking, which can be upgraded to 10Gb or 25Gb Ethernet for increased bandwidth and throughput. It also supports HPE FlexibleLOM adapters, which allow for customized network connectivity and can support up to four 10Gb Ethernet ports or up to two 10Gb Ethernet and two 25Gb Ethernet ports.
Management and Security
The HPE Proliant DL380 G9 CTO chassis comes with the HPE iLO (Integrated Lights-Out) Management Engine, which provides remote server management and monitoring capabilities. It also features HPE’s Silicon Root of Trust technology, which provides a secure foundation for the server’s firmware and BIOS.
Finally, The HPE Proliant DL380 G9 CTO chassis is a high-performance 2U rack server that is designed for enterprise-level applications. It comes with a few pre-installed components, including the HPE Dynamic Smart Array B140I and 24 SFF hot-plug HDD bays, but requires additional components such as a CPU, RAM, and hard drives to be purchased and installed separately. The server is built on the Intel Xeon E5-2600 v4 processor family and supports DDR4 SmartMemory, providing increased performance, scalability, and reliability. It also features RAID support, networking capabilities, and management and security features, making it a powerful and flexible solution for demanding workloads.
General Information
- Manufacturer : Hewlett Packard Enterprise(HPE)
- Manufacturer Part Number : 767032-B21
- Type: Server
- Sub-Type: Proliant DL380
- Product Name : Proliant Dl380 G9 2u Rack Server
Processor & Chipset
- Installed Qty : None
- Max Supported Qty : 2
- Cpu Upgradability : Upgradable
Memory
- Installed Size : None
- Maximum Size : 768GB
- Technology : DDR4 SDRAM
- Form Factor : Dimm 288-Pin
- Ram Supported
- Pc4-17000 – 384 GB – Registered
- Pc4-17000 – 768 GB – Load-Reduced
Storage & Storage Controller
- Hard Drive : None
- Storage Controller Type : 1 X Raid – Integrated
- Controller Interface Type : Serial Ata-600
- Storage Controller Name : Hp Dynamic Smart Array B140i
- Channel Qty : 10
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Display & Graphics Controllers
- Graphics Controller Type : Integrated
- Graphics Processor : Matrox G200eh2
- Video Interfaces : Vga
Network & Communication
- Networking Type : Integrated
- Interface (Bus) Type : Pci Express X2
- Ethernet Ports : 4x Gigabit Ethernet
- Ethernet Controller : Hp 331i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller : Integrated Lights-Out 4
- Features : Wake On Lan (Wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
