Details Information about this HPE 781514-003

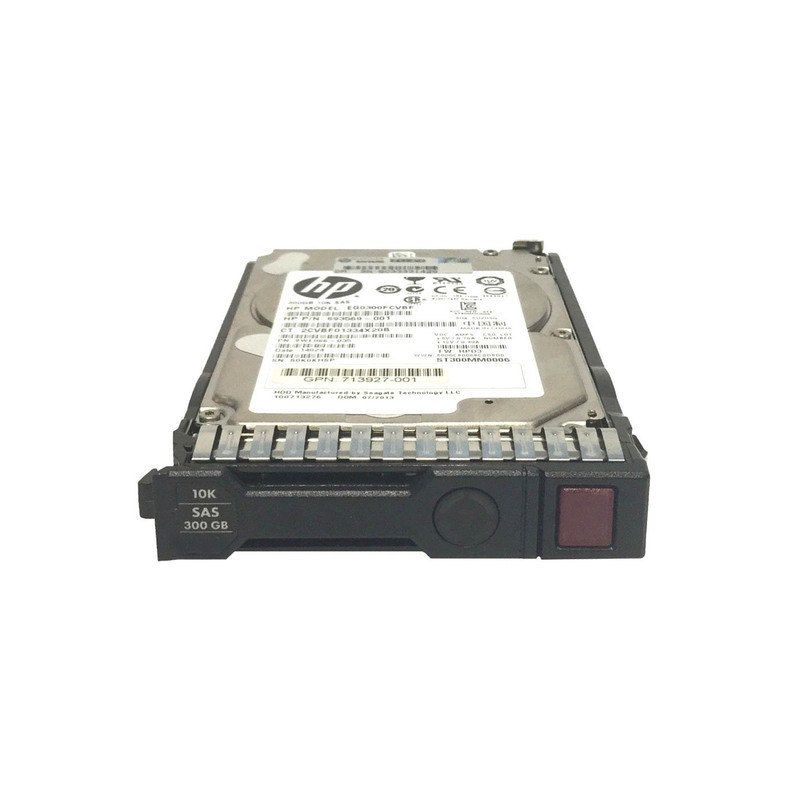

The HPE 781514-003-SC is a hard disk drive designed for enterprise-level applications. It is a high-performance device that is equipped with features that enable it to handle demanding workloads. In this article, we will explore the technical specifications and features of this device.
Technical Specifications
The HPE 781514-003-SC is a 300GB hard disk drive that uses the SAS-12GBPS interface. This interface enables the device to transfer data at a rate of 12 gigabits per second. The device operates at a speed of 10,000 revolutions per minute (RPM). This speed is faster than the standard 7,200 RPM drives and is ideal for applications that require high data transfer rates.
The device is designed to be used in enterprise-level applications and is equipped with features that ensure its reliability and durability. It has a dual-port SAS interface that enables it to be used in a redundant configuration. This configuration ensures that the device remains operational even if one of the ports fails.
The device also has a cache buffer of 128MB. This buffer helps to improve the performance of the device by temporarily storing frequently accessed data. This reduces the time it takes to access data and improves the overall performance of the device.
Features
The HPE 781514-003-SC is designed to be used in demanding environments. It has several features that enable it to handle the workload of enterprise-level applications. These features include:
- Dual-Port SAS Interface: The dual-port SAS interface enables the device to be used in a redundant configuration. This ensures that the device remains operational even if one of the ports fails.
- High Data Transfer Rate: The SAS-12GBPS interface enables the device to transfer data at a rate of 12 gigabits per second. This enables it to handle high data transfer rates, making it ideal for applications that require high-speed data transfer.
- High-Speed Performance: The 10,000 RPM speed of the device enables it to access data quickly, reducing the time it takes to access data and improving the overall performance of the device.
- Large Cache Buffer: The device has a cache buffer of 128MB. This buffer helps to improve the performance of the device by temporarily storing frequently accessed data.
- Enterprise-Level Reliability: The device is designed to be used in enterprise-level applications and is equipped with features that ensure its reliability and durability.
Finally, the HPE 781514-003-SC is a high-performance hard disk drive designed for enterprise-level applications. It is equipped with features that enable it to handle demanding workloads and ensure its reliability and durability. The device uses the SAS-12GBPS interface, has a speed of 10,000 RPM, and a cache buffer of 128MB. These features enable it to handle high-speed data transfer and access data quickly, making it ideal for applications that require high-performance storage. The dual-port SAS interface ensures that the device remains operational even if one of the ports fails, further improving its reliability.
General Information
- Manufacturer: HPE
- Part Number or SKU#: 781514-003
- Type: Hard Disk Drive
- Interface: SAS-12GBPS
Technical Features
- Capacity: 300 GB
- Form Factor: 2.5 inch SFF
- Interface: SAS 12 Gbps
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Carrier Type: Smart Carrier (SC)
- Bundled with: HPE SmartDrive carrier
- Device Type: Hard Drive – Hot-Swap
- Features: Advanced format 512n, Digitally Signed Firmware
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
- Drive Transfer Rate: 1.2 GBps (external)
- Seek Time: 4.15 ms (average) / 7.61 ms (max)
- Track-to-Track Seek Time: 0.32 ms
- Spindle Speed: 10000 RPM
- 128Kib Random Rd (IOPs): 180
- 128Kib Random 70% RD/ 30% WT (IOPs): 180
- 128Kib Random 50% RD/ 50% WT (IOPs): 180
- OD Media Rate, Max Sequential Throughput (MiB/s): 195
Expansion & Connectivity
- Interfaces: 1 x SAS 12 Gb/s
- Compatible Bay: 2.5″ SFF
Power Consumption
- Idle Time: 3.80 Watt
- Random Read: 6.90 Watt
- Random Write: 6.90 Watt
- Sequential Read: 6.10 Watt
- Sequential Write: 5.30 Watt
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Dimension and Weight
- Width: 4 Inch
- Depth: 5.8 Inch
- Height: 1 Inch
- Weight: 1.52 Lbs
Compatibility Information
Designed for
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
- HPE ProLiant BL Series: DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE ProLiant XL Series: XL230k Gen10 Compute Tray (2.5 inch), XL450 Gen10 (2.5 inch)
- HPE Synergy: 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
