Description

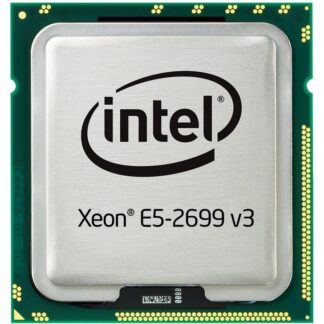

Product overview of the HPE 781915-B21
The HPE Intel Xeon 18 Core E5-2699V3 is a powerful processor designed for use in the DL380 Gen9 server. This processor boasts impressive performance capabilities, including 2.3GHz clock speed, 45MB L3 cache, and a 9.6GT/s QPI speed. In this article, we will delve into the technical specifications of this processor and explore its features and capabilities.
Technical Specifications
The HPE Intel Xeon 18 Core E5-2699V3 processor features 18 cores and 36 threads, making it ideal for highly demanding applications. It operates at a base clock speed of 2.3GHz, with a maximum turbo frequency of 3.6GHz. This processor also has a 45MB L3 cache, which helps to improve overall system performance by reducing latency and increasing data transfer rates.
In terms of memory support, the E5-2699V3 processor supports DDR4 memory with speeds of up to 2133MHz. It also supports up to 768GB of memory when used in a quad-channel configuration. This allows for high levels of memory bandwidth and enables the processor to handle large data sets with ease.
One of the key features of the E5-2699V3 processor is its 9.6GT/s QPI speed. QPI (QuickPath Interconnect) is a high-speed interconnect technology that allows for fast data transfer between the processor and other system components, such as the memory and I/O devices. This technology helps to reduce latency and improve overall system performance, making it ideal for use in high-performance computing applications.
Socket Compatibility
The E5-2699V3 processor is designed to be used with the Socket FCLGA 2011-3, which is a high-performance socket used in server-grade systems. This socket has 2011 pins and supports quad-channel memory, providing high levels of memory bandwidth to the processor. It is also designed to support high-speed interconnect technologies like QPI, making it an ideal choice for use in high-performance computing environments.
Power Consumption
The E5-2699V3 processor has a maximum TDP (Thermal Design Power) of 145 watts. This means that it is a power-hungry processor that requires adequate cooling to maintain optimal performance. It is important to ensure that the server system in which this processor is installed has sufficient cooling to prevent thermal throttling, which can negatively impact performance.
In summary, the HPE Intel Xeon 18 Core E5-2699V3 processor is a high-performance processor designed for use in the DL380 Gen9 server. Its impressive technical specifications, including 18 cores, 36 threads, 2.3GHz clock speed, 45MB L3 cache, and 9.6GT/s QPI speed, make it ideal for use in highly demanding applications. Its compatibility with the Socket FCLGA 2011-3 and support for DDR4 memory with speeds of up to 2133MHz make it a versatile choice for a wide range of server applications. However, its high TDP of 145 watts requires adequate cooling to maintain optimal performance. Overall, the E5-2699V3 processor is an excellent choice for those looking for a powerful and versatile processor for their server system.
General Information
- Product Type : Server Processor
- Manufacturer Part Number : 781915-B21
- Product Model : E5-2699V3
Technical Information
- Processor Core : 18-Core
- Clock Speed : 2.3GHz
- Max Turbo Frequency : 3.6GHz
- Quick path Interconnect(QPI) Speed : 9.6GT/S
- Instruction Set : 64-Bit
- Instruction Set Extensions : AVX 2.0
Cache Memory Detail
- L3 Cache : 45MB
- Lithography : 22 NM
- Max Thermal Design Power (TDP) : 145W
- Compatible Processor Socket : FCLGA-2011-3
