Description

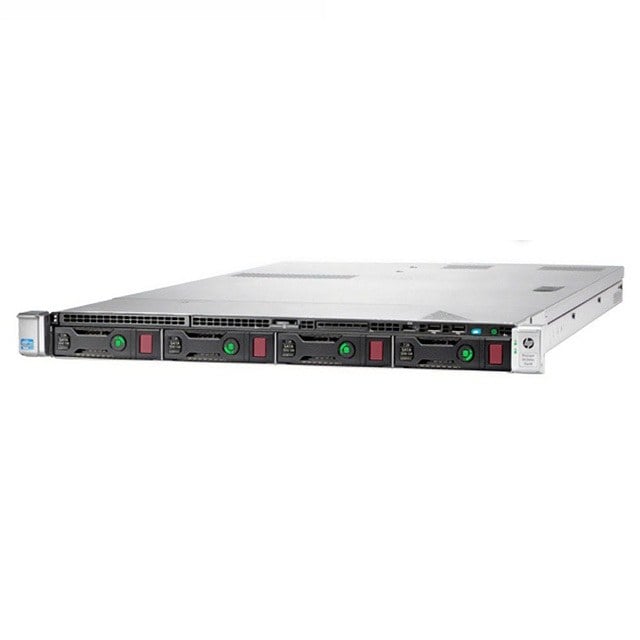

Overview to the HPE 849455-S01 ProLiant DL360
The HPE 849455-S01 ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server is a high-performance server designed for data-intensive workloads. It is a rack-mounted server that is suitable for small to medium-sized businesses that require reliable and powerful computing resources. In this article, we will provide a detailed explanation of the HPE 849455-S01 ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server, including its specifications, features, and benefits.
Specifications
The HPE 849455-S01 ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server is equipped with an Intel Xeon E5-2620v4 processor, which is a 2.1GHz processor with 8 cores and 16 threads. This processor is capable of handling multiple tasks simultaneously and can deliver high performance even under heavy workloads. Additionally, the server comes with 16GB of DDR4 RAM, which can be expanded up to 768GB depending on the user’s needs.
The server has a small form factor and is designed to fit in a standard 19-inch rack. It has a depth of 24.75 inches and a height of 1.7 inches, making it easy to install in any data center or server room. The server also has a 500W power supply, which is efficient and helps to reduce energy costs.
Features
The HPE 849455-S01 ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server is packed with features that make it a reliable and high-performance server for data-intensive workloads. Some of its key features include:
- Scalability: The server is highly scalable and can be configured to meet the user’s changing needs. It can support up to 24 DIMM slots, which allows for up to 768GB of RAM.
- Security: The server comes with advanced security features such as secure boot, TPM 2.0, and UEFI Secure Boot. These features help to protect the server against unauthorized access and ensure the integrity of the system.
- Management: The server comes with advanced management features such as iLO (Integrated Lights-Out), which allows users to remotely manage and monitor the server. Additionally, it has HPE OneView, which provides a comprehensive view of the server infrastructure and allows users to manage multiple servers from a single interface.
- Storage: The server has multiple storage options, including hot-plug SAS and SATA hard drives, solid-state drives (SSDs), and NVMe drives. These storage options allow users to store and access their data quickly and efficiently.
Benefits
Finally, The HPE 849455-S01 ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server offers several benefits to users, including:
- High performance: The server is equipped with a powerful processor and high-speed RAM, which allows it to handle data-intensive workloads with ease.
- Scalability: The server can be easily scaled to meet the user’s changing needs, making it a cost-effective solution for businesses.
- Reliability: The server is designed to be reliable and has features such as redundant power supplies and hot-swappable components, which help to ensure that the server is always available.
- Security: The server comes with advanced security features that help to protect the system against unauthorized access and ensure the integrity of the data.
Main Specifications
- Manufacturer: HPE
- Part Number or SKU# 849455-S01
- Product Type: Server
Processor & Chipset Information
- Max Turbo Speed : 3.0GHz
- Number Of Cores : 8-core
- Cpu Qty : 1
- Max Cpu Qty : 2
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
- Cpu Socket : Fclga2011-v3 Socket
Memory Information of ProLiant DL360 16GB Server
- Cache Memory Type : Smart Cache
- Installed : 20 MB
- Cache Per Processor : 20 MB
- Installed Size : 16 GB / 384GB (max)
- Technology : DDR4 Sdram – Advanced Ecc
- Effective Memory Speed : 2133 MHz
- Memory Specification Compliance : Pc4-19200
- Form Factor : Dimm 288-pin
- Slots : 16 (total) / 14 (Empty)
- Features : Registered, Online Spare Memory, HP Smartmemory
- Configuration Features : 2 X 8GB
- Ram Supported : Pc4-17000 – 768GB- Load-reduced ¦ Pc4-17000 – 384GB – Registered
Storage
- Hard Drive : None
- Optical Drive : None
- Type : 1 X SAS-3 – PCIE 3.0 X8
- Controller Interface Type : SATA 6GB/s / SAS 12GB/s
- Storage Controller Name : HP Smart Array H244BR With 1GB Fbwc
- Raid Level : Raid 0, Raid 1
Display & Graphics
- Graphics Controller Type : Integrated Matrox G200
Network & Communication
- Interface (bus) Type : Flexiblelom
- Ethernet Ports : 4 Gigabit Ethernet
- Ethernet Controller : HP 331i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-out 4
- Compliant Standards : IEEE 802.1q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (lacp)
Features
- Wake On Lan (Wol), Pxe Support
- Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion/ Connectivity
- 1 (total) / 1 (free) X External
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- 24 (total) / 22 (free) X Dimm 288-pin
- 2 (total) / 1 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 Pcie 3.0 X8 – Low-profile
- 1 (total) / 0 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Power
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1
- Installed Qty : 1
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
- Power Provided : 500 Watt
- 80 Plus Certification : 80 Plus Platinum
Interfaces & Ports
- 1 X Vga
- 1 X Serial
- 4 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )
Dimensions & Weight
- Width : 17.1 Inch
- Depth : 27.5 Inch
- Height : 1.7 Inch
- Weight : 27.01 Lbs
