Description
High Capacity and High Performance Storage Solution

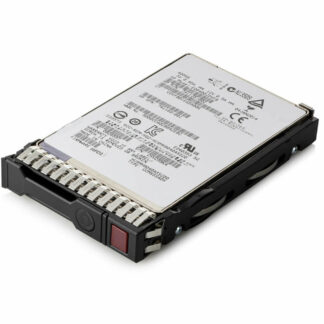

The HPE 869384-H21 is a high-performance storage device that is designed for use in enterprise storage systems. The drive is designed to provide high capacity and high performance storage solution.
This drive has a storage capacity of 960GB, this drive is well-suited for high-performance storage applications that require large amounts of storage capacity, such as data warehousing, data analytics, and video surveillance.
The drive is built with high-quality components that are designed to withstand the rigors of enterprise use. It is also built with a 6GBps SATA interface which allows for fast data transfer rates, and optimized for read-intensive workloads, providing high-performance and low-latency data transfer.
The drive is built with 2.5-inch form factor which is ideal for use in space-constrained environments, such as blade servers and small form factor systems.
The drive has a hot-swap capability which allows for easy maintenance and replacement without interrupting system operation.
The Ultimate Solution for Large Scale Data Storage Needs
The HPE 869384-H21 960GB SATA 2.5 Inch Read Intensive SSD is an enterprise-grade solid-state drive that is designed to provide high performance, reliability and scalability for large-scale data storage needs. Some of the key features of this SSD include:
- High read performance: This SSD is designed for read-intensive workloads, which means it is optimized for fast data retrieval. This makes it ideal for use in applications such as databases, virtualization, and cloud computing where fast data retrieval is important.
- High endurance: This SSD is designed to handle a high amount of read operations, making it suitable for use in read-intensive workloads such as databases and virtualization. This means that the drive can handle high read loads, which is important for scalability where large amounts of data need to be read from the drive.
- Hot-swap capability: This SSD is designed with hot-swap capability, which allows for the drive to be replaced without having to shut down the system, thus providing a higher availability. This makes it suitable for use in high-availability applications such as databases, virtualization, and cloud computing, where scalability and accessibility are a concern.
- RAID support: This SSD is designed to support RAID, which is a method of using multiple drives to store data in a way that provides data redundancy and increased fault tolerance. This helps to ensure that data is accessible and scalable.
- Advanced Format technology: This SSD is equipped with Advanced Format technology, which increases the physical sector size on the drive from 512 bytes to 4,096 bytes. This helps to improve the drive’s performance, capacity, and reliability.
- Secure erase: This SSD supports secure erase, which is a method of erasing data from the drive in a way that makes it unrecoverable. This helps to ensure that data stored on the drive is securely erased when the drive is retired or repurposed.
- Drive Efficiency: These drives are optimized for power efficiency, which can help to reduce power consumption and cooling costs. This makes it suitable for use in applications where energy efficiency is a concern, such as data centers and other large-scale enterprise IT environments.
Data Storage Technology
The HPE 869384-H21 is a 960GB solid-state drive (SSD) that uses the SATA 6GB/s interface and is designed for read-intensive workloads. This drive is in a 2.5-inch form factor and is designed for use in servers, storage systems, and other devices that support the SATA interface.
The drive uses NAND flash memory, which is a type of non-volatile storage technology that does not require power to retain data. This makes it well-suited for use in SSDs, which need to be able to retain data even when power is removed. The NAND flash memory used in this drive is of TLC (Triple-Level Cell) type, that stores 3 bits of data per cell. This type of NAND flash is less expensive than other types, such as SLC (Single-Level Cell) or MLC (Multi-Level Cell) but with lower endurance and performance.
The drive also includes a controller that manages the data stored on the drive. The controller is responsible for tasks such as error correction, wear leveling, and garbage collection, which are important for maintaining the reliability and performance of the drive over time.
General Information
- Manufacture: Hewlett Packard Enterprise (HPE)
- MPN: 869384-H21
- Spare Part Number: 869580-001
- Model Number: VK000960GWCNR
- Assembly Number: 867213-004
- SKU: 869384-H21
- Type: Hot-Swap Solid State Drive (SSD)
- SSD Type: SATA 6GBPS
Technical Information
- Storage Capacity: 960GB
- Form Factor: 2.5 Inch SFF
- Flash Type: MLC
- Plug Type: Hot Plug
- Workload Type: Read Intensive
- Carrier Type: Smart Carrier (SC)
- Features: Digitally Signed Firmware
- Bundled With: HPE Smart Drive Carrier
Dimension and Weight
- Height: 0.63 Inch
- Width: 3.10 Inch
- Depth: 5.45 Inch
- Weight: 1.50 Lbs
Performance
- Endurance DWPD: 0.6
- Drive Transfer Rate: 6GB/Sec (External)
- MAX Seq. Reads Throughput (MiB/s): 420
- MAX Seq. Writes Throughput (MiB/s): 315
- Random Read Average Latency uSec (4KiB,Q1): 155
- Random Write Average Latency uSec (4KiB,Q1): 80
- Random Read IOPS (4KiB, Q=16): 55000
- Random Write IOPS (4KiB, Q=16): 14000
- MAX Random Read IOPS (4KiB): 59000@Q32
- MAX Random Write IOPS (4KiB): 14000@Q4
- 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 30000
- 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 22000
Power Consumption
- Idle Time: 0.75 Watt
- Random Read: 2.42 Watt
- Random Write: 2.42 Watt
- Sequential Read: 3.10 Watt
- Sequential Write: 3.58 Watt
- Random R/W: 2.42 Watt
Compatibility Information
- HPE ProLiant BL Series: BL460C Gen10 (2.5 Inch)
- HPE ProLiant DL Series: DL160 Gen9 (2.5 Inch), DL160 Gen9 Base (2.5 Inch), DL160 Gen9 Entry (2.5 Inch), DL160 Gen9 Performance (2.5 Inch), DL20 Gen9 (2.5 Inch), DL20 Gen9 Base (2.5 Inch), DL20 Gen9 Entry (2.5 Inch), DL20 Gen9 Performance (2.5 Inch), DL20 Gen9 Special Server (2.5 Inch), DL360 Gen10 (2.5 Inch), DL360 Gen10 Base (2.5 Inch), DL360 Gen10 Entry (2.5 Inch), DL360 Gen10 High Performance (2.5 Inch), DL360 Gen10 Low (2.5 Inch), DL360 Gen10 Performance (2.5 Inch), DL360 Gen10 Solution (2.5 Inch), DL360 Gen9 (2.5 Inch), DL360 Gen9 Base (2.5 Inch), DL360 Gen9 CMS (2.5 Inch), DL360 Gen9 Entry (2.5 Inch), DL360 Gen9 Performance (2.5 Inch), DL360 Gen9 Special Server (2.5 Inch), DL380 Gen9 (2.5 Inch), DL380 Gen9 Base (2.5 Inch), DL380 Gen9 Entry (2.5 Inch), DL380 Gen9 High Performance (2.5 Inch), DL380 Gen9 Performance (2.5 Inch), DL380 Gen9 Special (2.5 Inch), DL388 Gen9 (2.5 Inch), DL388 Gen9 Base (2.5 Inch), DL580 Gen9 (2.5 Inch), DL580 Gen9 Base (2.5 Inch), DL580 Gen9 Database (2.5 Inch), DL580 Gen9 High Performance (2.5 Inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 Inch)
- HPE ProLiant ML Series: ML110 Gen9 (2.5 Inch), ML110 Gen9 Base (2.5 Inch), ML110 Gen9 Entry (2.5 Inch)
- HPE Synergy 480 Gen10 Base Compute Module (2.5 Inch), 480 Gen10 Entry Compute Module (2.5 Inch), 480 Gen10 Performance Compute Module (2.5 Inch), 480 Gen10 Premium Backplane Compute Module (2.5 Inch), 480 Gen10 Standard BackPlane Compute Module (2.5 Inch), 480 Gen10 w/o Drives Compute Module (2.5 Inch), 660 Gen10 Base Compute Module (2.5 Inch), 660 Gen10 Compute Module (2.5 Inch), 660 Gen10 Entry Compute Module (2.5 Inch), 660 Gen10 Performance Compute Module (2.5 Inch), 660 Gen10 Premium Compute Module (2.5 Inch)
