Description
SAS Interface Overview
SAS (Serial Attached SCSI) is a high-speed data transfer technology used in hard drives, solid-state drives, and other storage devices. SAS interface is used to connect SAS hard drives to the server or storage systems. SAS interface provides faster data transfer rates and more reliable data transmission compared to other interfaces like SATA.
SAS interface uses a point-to-point connection between the storage device and the host system, which means each storage device is connected directly to the host system. This allows for greater reliability and higher performance, as there is no shared bandwidth between multiple devices.
SAS interface uses a serial connection, which means data is transmitted one bit at a time over a single wire. This allows for higher data transfer rates, as multiple bits can be transmitted simultaneously across multiple wires. The current generation of SAS interface supports data transfer rates up to 12 Gbps.
SAS interface also provides advanced features such as hot-swapping, which allows for the replacement of hard drives without shutting down the system, and dual-port capabilities, which provide redundant data paths for increased reliability. SAS hard drives are typically used in high-performance and mission-critical applications that require fast and reliable storage solutions.
6Gbps Transfer Rate Explained
The 6Gbps transfer rate refers to the maximum data transfer speed that can be achieved between the storage device and the host system using the SAS (Serial Attached SCSI) interface. This means that data can be transferred at a rate of up to 6 gigabits per second (Gbps) between the hard drive and the host system.
This high transfer rate is achieved through the use of advanced signal processing techniques and improvements in the physical layer of the interface, which allow for higher bandwidth and faster data transfer rates.
A high transfer rate is beneficial for applications that require fast access to data, such as databases, video editing, and other high-performance applications. It allows for faster loading times and better system performance overall.
However, it’s important to note that the actual transfer rate may be lower than the maximum advertised rate, as it can be affected by various factors such as the overall system performance, the number of devices connected to the interface, and the type of data being transferred. Nonetheless, the 6Gbps transfer rate of the SAS interface is significantly faster than other interfaces like SATA, which typically have a maximum transfer rate of 6 Gbps or lower.
SFF SC Form Factor Explained
The SFF (Small Form Factor) SC (Single Connector) form factor refers to the physical size and connector type of a hard drive. SFF is a term used to describe a smaller size factor of a storage device, which allows for more efficient use of space within server or storage systems. The SC connector type is a type of connector used for SAS hard drives that allows for a single cable to be used for data and power transfer.
The SFF SC form factor typically refers to a 2.5-inch hard drive with a height of 0.6 inches, which is smaller than the traditional 3.5-inch form factor used for desktop hard drives. This smaller size allows for more drives to be installed in a given amount of space, which is important for data centers and server farms where space is often at a premium.
The SC connector used with the SFF form factor allows for a single cable to be used for data and power transfer, which simplifies cable management and reduces the number of cables required to connect the hard drives to the host system. This connector is also designed to be more robust than other types of connectors, which reduces the risk of data loss due to cable failure.
The SFF SC form factor is commonly used in high-density server and storage environments where space is limited and multiple hard drives need to be installed in a small area. It is also used in other applications where a smaller form factor and a single cable for data and power transfer are preferred.

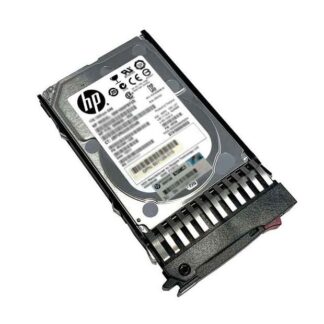

Detail Description EG0600FBVFP HPE 600GB 10K RPM SAS 6GBPS
- Brand Name : HPE
- MPN : EG0600FBVFP
- Option Part Number: 581286-B21
- Spare Part Number: 581311-001
- Assembly Number: 641552-003
- Sub-Type : 600 GB 10K RPM SAS 6 GBPS
- Type : Hard Drive (HDD)
- Capacity : 600 GB
- Form Factor: 2.5inch SFF
- SKU: EG0600FBVFP
Performance
- Drive Transfer Rate: 600 MBPS (external)
- Seek Time: 4 MS (average) / 8 MS (max)
- Track-to-Track Seek Time: 0.4 MS
- Spindle Speed: 10000 RPM
Dimension and Weight
- Width : 2.8 Inch
- Depth : 3.9 Inch
- Height : 0.6 Inch
- Weight :0.50 Lbs
Expansion & Connectivity
- Interfaces: 1 x SAS 6GB/S
- Compatible Bay: 2.5inch SFF
Compatibility Information
- Bladesystem Proliant Server Blades
- HPE Proliant Dl Servers
- HPE Proliant Dl160 Gen8 Server Series
- HPE Proliant Dl360p Gen8 Server Series
- HPE Proliant Dl380p Gen8 Server Series
- HPE Proliant Ml Servers
- HPE Proliant Ml350p Gen8 Server Series
- HPE Proliant Scalable Systems
- HPE Proliant Sl230s Gen8 Server Series
- HPE Proliant Sl250s Gen8 Server Series
