Description

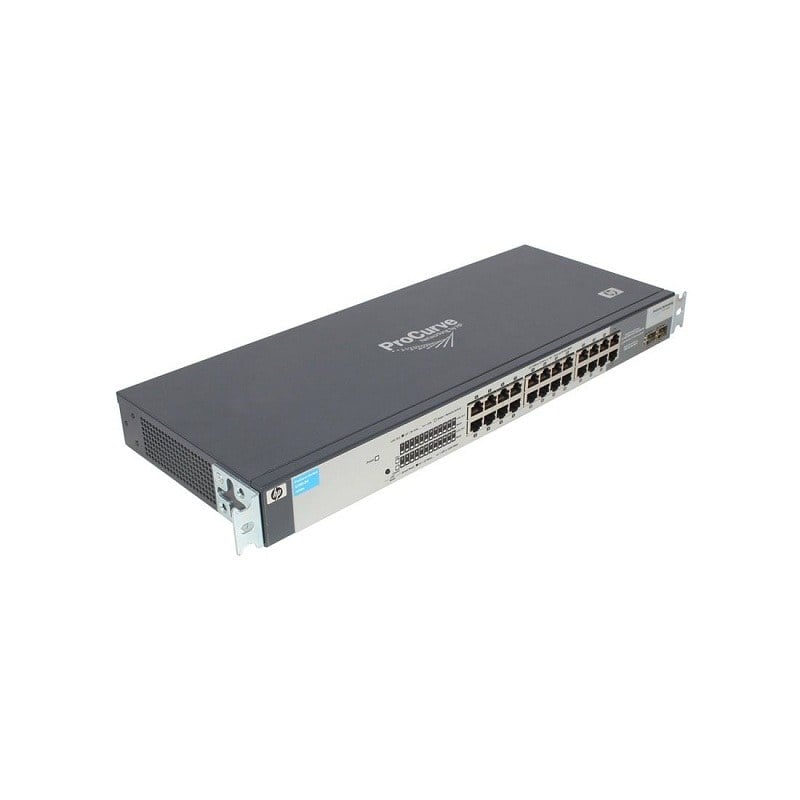

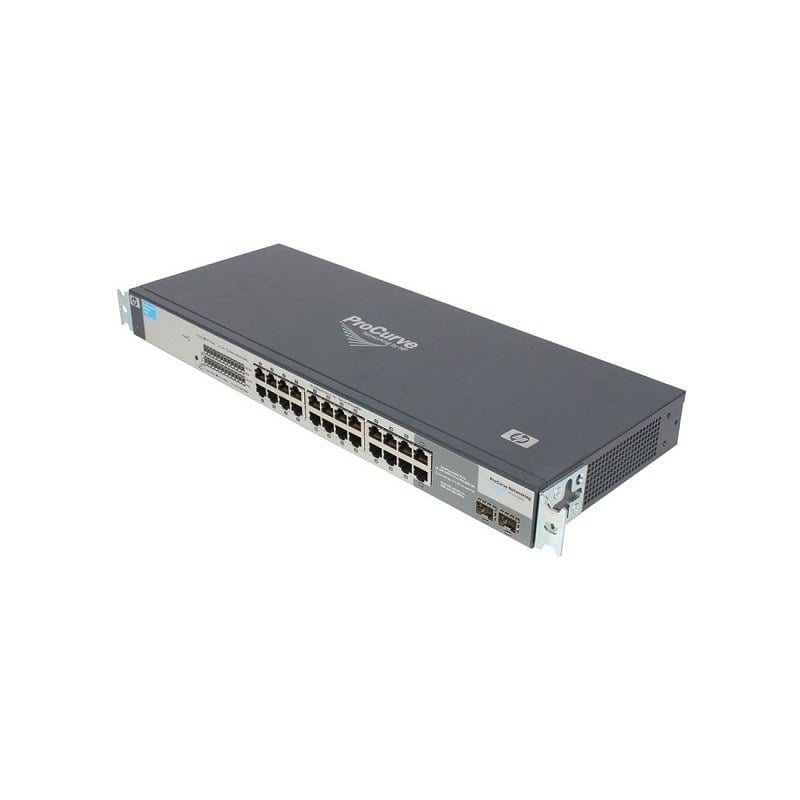

Product overview of the HPE J9085-69001
The HPE 2610 ProCurve Switch is a high-performance, cost-effective networking solution that provides 10Base-T and 100Base-TX connectivity for small to medium-sized businesses and enterprise branch offices. With 24 auto-sensing ports, this switch allows for easy expansion and flexibility in configuring your network. The switch also features advanced security and quality of service (QoS) capabilities, making it a reliable and secure choice for your network infrastructure.
Features and specifications
The HPE 2610 ProCurve Switch boasts a range of features and specifications designed to support your network needs. Some key highlights include:
- 24 auto-sensing ports: Provides 10Base-T and 100Base-TX connectivity for a variety of devices, including PCs, servers, and printers.
- Advanced security: Includes support for 802.1x and Access Control Lists (ACLs) to help protect your network from unauthorized access.
- Quality of Service (QoS): Prioritizes network traffic to ensure that critical applications receive the bandwidth they need.
- Energy efficient: Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standards to help reduce power consumption.
- Easy management: Includes a web-based management interface and support for SNMP, making it easy to monitor and configure your switch.
- Rack mountable: Can be easily mounted in a standard 19-inch rack, saving valuable space in your server room.
- Technical support: Comes with a limited lifetime warranty and technical support from HPE.
Other specifications
- Switching capacity: 8.8 Gbps
- Packet buffer: 2 MB
- MAC address table: 8k entries
- Flash memory: 2 MB
- RAM: 16 MB
Network connectivity options
The HPE 2610 ProCurve Switch offers a variety of network connectivity options to support your needs. The switch has 24 auto-sensing ports that support 10Base-T and 100Base-TX connections. This allows for easy connectivity of a variety of devices, including PCs, servers, and printers.
Additionally
- Full-duplex operation on all ports for maximum performance
- Automatic speed and duplex sensing to optimize network efficiency
- Flow control to help prevent data loss during periods of high network traffic
- Jumbo frames support for improved performance when transferring large files
- Auto-MDI/MDIX eliminates the need for crossover cables or uplink ports
The switch also supports link aggregation, also known as NIC teaming, which allows you to bundle multiple ports together to create a single, high-bandwidth link, providing increased bandwidth and redundancy.
General Information
- Manufacturer: HPE
- Part Number or SKU# J9085-69001
- Type: Networking
- Sub-Type: Switch 24 Ports
- Enclosure Type : Rack-Mountable
Networking
- Ports Qty : 24 X Ethernet 10base-T, Ethernet 100base-Tx
- Auxiliary Network Ports : 2×10/100/1000base-T
- Data Transfer Rate : 100 Mbps
- Data Link Protocol : Ethernet, Fast Ethernet
- Routing Protocol : Igmpv3
- Remote Management Protocol : Rmon 2, Telnet, Http, Ssh, Ssh-2
- Connectivity Technology : Wired
- Switching Protocol : Ethernet
- Mac Address Table Size : 8k Entries
- Features : Flow Control, Auto-Sensing Per Device, Auto-Negotiation, Bootp Support, Trunking, Vlan Support, Manageable, Stackable, Sntp Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x
Processor
- Processor : 1 ( 1 ) : 300 Mhz
- Memory
- Ram : 128 Mb Sdram
- Flash Memory : 16 Mb Flash
Expansion / Connectivity
- Expansion Slots Total (Free) : 2 ( 2 ) X Sfp (Mini-Gbic)
- Interfaces : 24 X Network – Ethernet 10base-T/100base-Tx – Rj-45 2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45 1 X Management – Rj-45
