Description
Switching Capacity and Performance

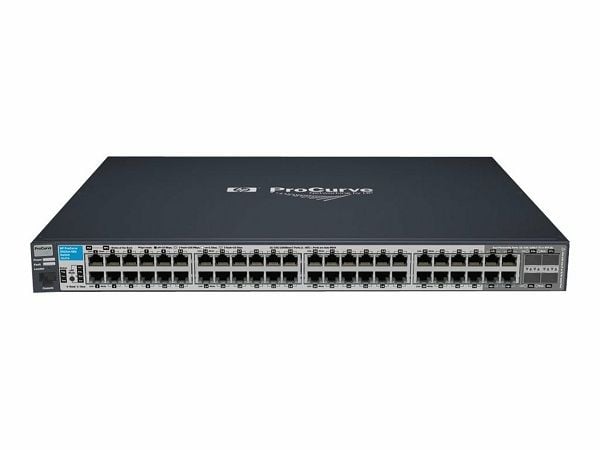

The HPE ProCurve 2610-48 switch is a Layer 3 switch that has 48 ports for connecting devices. It supports 0/100/1000Base-T, which means it can handle Ethernet speeds of 10Mbps, 100Mbps, and 1000Mbps. The switch has a switching capacity of 17.6 Gbps, which means it can handle 17.6 billion bits of data per second. In terms of performance, the switch supports a maximum of 64K MAC addresses and up to 32 VLANs. It also supports Quality of Service (QoS) to prioritize network traffic and ensure that critical applications have the bandwidth they need.
Management and Configuration
- VLAN Configuration: The HPE ProCurve 2610-48 switch allows for the creation and management of multiple VLANs on the network. This allows for segmentation of the network and increased security.
- Quality of Service (QoS): The switch supports QoS features such as traffic prioritization and bandwidth management to ensure that critical applications have the necessary bandwidth to function properly.
- Link Aggregation: The switch supports link aggregation, also known as LACP, which allows for multiple physical links to be combined into a single logical link. This increases network reliability and provides increased bandwidth.
- Spanning Tree Protocol (STP): The switch supports STP, which prevents network loops and ensures that only one active path exists in the network.
- Access Control Lists (ACLs): The switch supports ACLs, which allow for the creation of rules to control access to the network. This can be used to restrict access to certain devices or ports, or to block specific types of traffic.
- SNMP: The switch supports Simple Network Management Protocol (SNMP), which allows for remote management and monitoring of the switch.
- Firmware Upgrade: The switch supports firmware upgrades, which can be done through the web interface or by using the command line interface.
- Port Mirroring: The switch supports port mirroring, which allows for a copy of the traffic on one port to be sent to another port for monitoring or analysis.
- SSH and Telnet: The switch supports Secure Shell (SSH) and Telnet for secure remote management and configuration.
- Web Interface: The switch has a web interface that allows for easy management and configuration of the switch. This can be accessed through a web browser and requires a valid login.
Power over Ethernet (PoE) Support
Power over Ethernet (PoE) is a technology that allows devices to receive power through their Ethernet cables, eliminating the need for an additional power source. The J9088-61001 HPE ProCurve 2610-48 2 Slot 0/100/1000Base-T 48 Ports L3 Switch supports PoE, which means that it can provide power to connected devices such as IP cameras, wireless access points, and VoIP phones.
This feature is particularly useful for businesses and organizations that want to save space and reduce the number of cables and power outlets required to power their devices. With PoE, devices can be placed in areas where power outlets are not easily accessible, and they can be powered through the Ethernet cables that are already in place.
The J9088-61001 HPE ProCurve 2610-48 2 Slot 0/100/1000Base-T 48 Ports L3 Switch has a PoE budget of 370 watts, which means that it can provide power to a maximum of 48 devices simultaneously. It also has advanced PoE management features such as PoE scheduling, which allows administrators to set specific times for PoE to be enabled or disabled. This can help to conserve energy and reduce costs.
General Information
- Manufacturer: HPE
- Part Number or SKU# J9088-61001
- Type : Networking
- Switch-Type :Switch 48 Ports
- Product Line ProCurve
Interfaces/Ports
- Total Number of Network Ports 48
- Media & Performance
- Ethernet Technology Fast Ethernet
I/O Expansions
- Number of Total Expansion Slots 2
- Expansion Slot Type SFP
- Number of SFP Slots 2
Management & Protocols
- Manageable Yes
- Physical Characteristics
- Form Factor Rack-mountable
Dimension and Weight
- Height: 1.7inch
- Width: 17.4inch
- Depth: 9.3inch
- Weight: 11 Lbs
