Description
Features & Benefits of HPE Procurve Switch

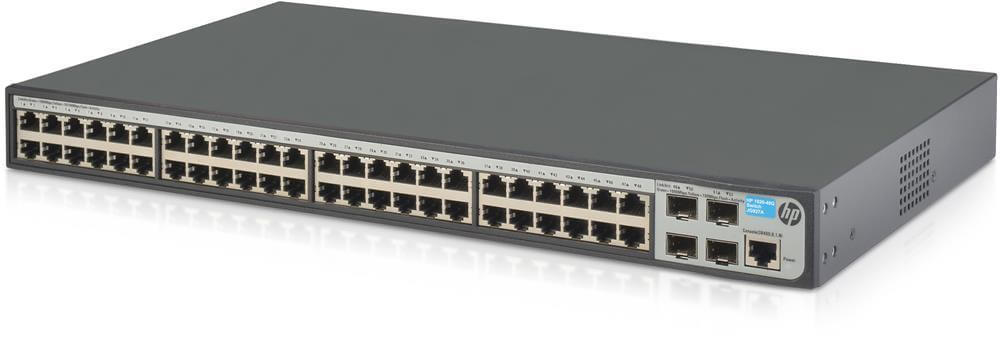

The J9280-61001 HPE Procurve 2510G-48 Ethernet Switch is a high-performance and reliable networking device that is ideal for small to medium-sized businesses. The following are some of its key features and benefits:
Features:
- 48 Gigabit Ethernet ports
- 2 dual-personality (RJ-45 or SFP) ports
- ProVision ASIC technology
- Energy Efficient Ethernet (IEEE 802.3az)
- Non-blocking architecture
- Advanced security features such as Access Control Lists (ACLs), 802.1x authentication, and IP source guard
- Simple network setup and management through web browser, Telnet, or command line interface (CLI)
- Support for both IPv4 and IPv6
Benefits:
- High speed and reliable networking: With 48 Gigabit Ethernet ports, the switch can handle large amounts of data transfer, ensuring fast and efficient network performance.
- Flexible connectivity options: The dual-personality ports allow for a choice between copper and fiber connectivity, providing flexibility to meet different network requirements.
- Energy efficient: The Energy Efficient Ethernet feature reduces power consumption, making it an eco-friendly and cost-effective choice for businesses.
- Advanced security: The switch provides robust security features that help to protect networks from potential threats, ensuring a secure and protected network environment.
- Easy setup and management: The switch is easy to set up and manage, with web-based and CLI management options, making it a cost-effective choice for small to medium-sized businesses.
- IPv6 support: The switch supports both IPv4 and IPv6, making it a future-proof choice that can adapt to changing network requirements.
Switch Configuration
The J9280-61001 HPE Procurve 2510G-48 Ethernet Switch is a 48-port Gigabit Ethernet switch that is designed for small and medium-sized businesses. The switch has a number of features and configurations that can be tailored to meet the needs of different organizations.
- Basic Configuration: The basic configuration of the switch includes setting up IP addresses, subnet masks, and default gateways. This is done through the switch’s command-line interface (CLI).
- VLAN Configuration: VLANs can be configured to segment the network into multiple isolated broadcast domains. This helps to improve network security and performance.
- Port Configuration: The switch supports several port configurations, including port-based VLANs, port security, and Quality of Service (QoS). This allows administrators to control network traffic and ensure that critical applications receive priority bandwidth.
- Link Aggregation Configuration: Link aggregation allows multiple physical links to be combined into a single logical link. This provides increased bandwidth and redundancy, which can help to improve network reliability.
- Spanning Tree Configuration: The switch supports several Spanning Tree Protocol (STP) configurations, including Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP). This allows administrators to control how the switch responds to network topology changes, and helps to prevent network loops.
Advanced Traffic Management
The HPE Procurve 2510G-48 Ethernet Switch provides advanced traffic management features that allow network administrators to control and prioritize network traffic effectively. Some of these features include:
- Quality of Service (QoS): The switch supports eight hardware queues per port and allows administrators to assign different levels of priority to different types of traffic, such as voice, video, and data. This ensures that critical traffic is transmitted with the highest priority and minimizes network delays and congestion.
- Port-based VLANs: The switch supports port-based VLANs, which allow administrators to segment the network into smaller virtual LANs. This enhances network security and reduces the potential for broadcast storms.
- Link Aggregation Control Protocol (LACP): The switch supports the LACP protocol, which allows administrators to bundle multiple physical links together into a single logical link. This enhances network redundancy and provides increased bandwidth for critical applications.
- Spanning Tree Protocol (STP): The switch supports STP, which prevents network loops and ensures that only one active path exists between any two nodes on the network. This enhances network stability and eliminates potential data loops.
- Access Control Lists (ACLs): The switch supports ACLs, which allow administrators to control access to the network based on source and destination IP addresses, protocols, and ports. This enhances network security and reduces the potential for unauthorized access.
In conclusion, the HPE Procurve 2510G-48 Ethernet Switch provides advanced traffic management features that allow network administrators to control and prioritize network traffic effectively, thereby improving network performance and reliability.
Detail Description
- Manufacturer: HPE
- Model Number or SKU# J9280-61001
- Type: Networking
- Sub-Type: Switch 48 Ports
- Device Type : Switch
- Enclosure Type : External
Networking
- Ports Qty : 48 X Ethernet 10base-T, Ethernet 100base-Tx, Ethernet 1000base-T
- Data Transfer Rate : 1 Gbps
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2
- Connectivity Technology : Wired
- Communication Mode : Half-Duplex, Full-Duplex
- Switching Protocol : Ethernet
- Mac Address Table Size : 8k Entries
- Features : Flow Control, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X)
- Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (Lacp), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (Lldp)
Memory
- Ram : 64 Mb Sdram
