Description
Product Overview

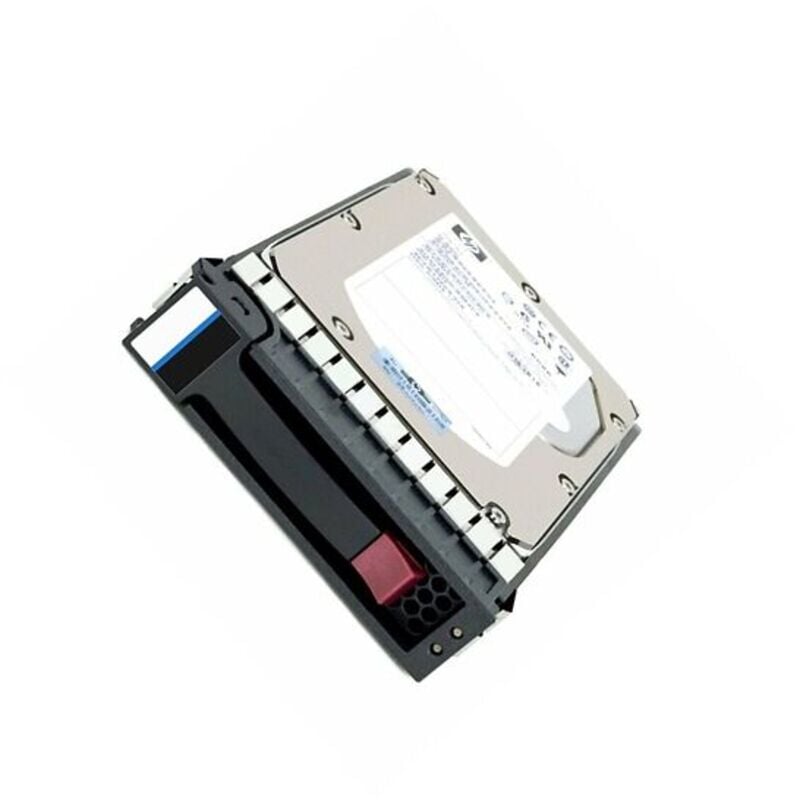

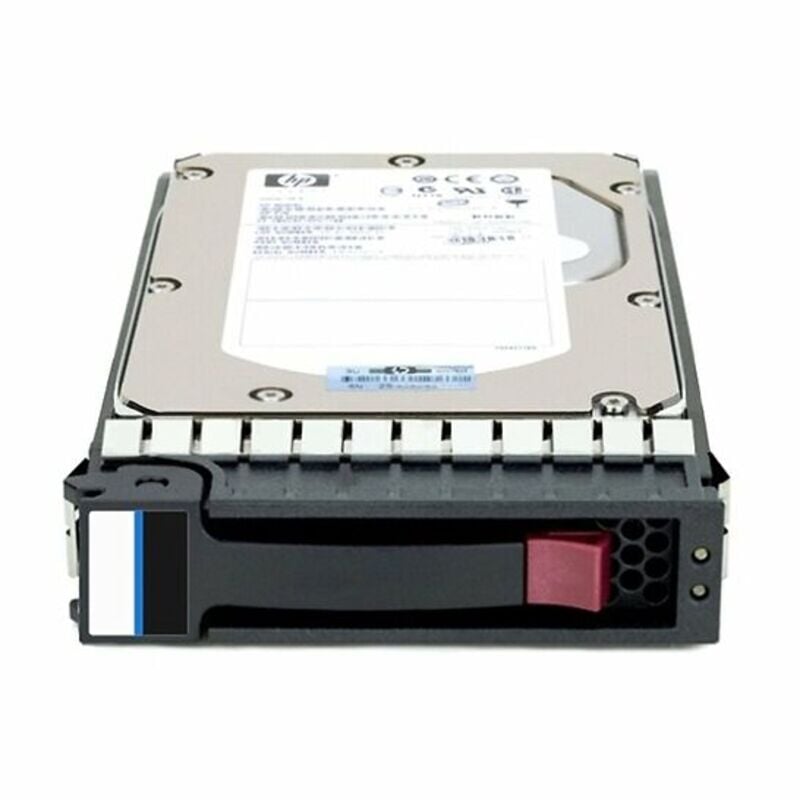

HPE MB2000FAMYV is a 2TB (Terabytes) hard disk drive that is commonly used in enterprise storage systems. It is designed to provide high-performance storage with reliable data access and transfer rates. In this article, we will discuss the technical specifications of the HPE MB2000FAMYV hard disk drive in detail.
Technical Specifications of HPE 2TB Hard Disk Drive
Capacity and Physical Size The HPE MB2000FAMYV hard disk drive has a capacity of 2TB. It is a 3.5 inch large form factor (LFF) hard disk drive, which means it is designed to fit into standard 3.5 inch drive bays. The drive measures 146.99mm x 101.6mm x 26.1mm (5.79in x 4.00in x 1.03in) and weighs 720g (1.59lb).
Rotational Speed
The rotational speed of the HPE MB2000FAMYV hard disk drive is 7200 revolutions per minute (RPM). This is a common speed for enterprise-class hard disk drives, as it provides a good balance between performance and reliability. Higher RPMs can provide faster data access and transfer rates, but they can also generate more heat and noise.
Interface and Data Transfer Rates
The HPE MB2000FAMYV hard disk drive uses a Serial-Attached SCSI (SAS) interface, which is a popular interface for enterprise storage systems. SAS provides a high-speed, point-to-point interface that can support multiple devices on a single bus. The drive supports SAS 6Gbps (Gigabytes per second) data transfer rates, which means it can transfer data at up to 6 Gigabytes per second. This is a significant improvement over previous SAS standards, which typically had a maximum data transfer rate of 3Gbps.
Reliability and MTBF
The HPE MB2000FAMYV hard disk drive is designed for use in enterprise-class storage systems, which require high levels of reliability and data integrity. The drive has a Mean Time Between Failures (MTBF) rating of 1.2 million hours, which means it is expected to operate reliably for an average of 1.2 million hours before a failure occurs. This rating is based on statistical analysis and is not a guarantee of actual drive life.
Cache and Latency
The HPE MB2000FAMYV hard disk drive has a 64MB cache, which is used to temporarily store frequently accessed data. This can improve data access times and overall performance. The drive also has a low latency, which is the time it takes for the drive to respond to a request for data. Lower latency can improve overall system performance, especially in applications that require frequent access to data.
Power Consumption and Environmental Specifications
The HPE MB2000FAMYV hard disk drive has a maximum power consumption of 10.5 watts during normal operation. It has an operating temperature range of 5°C to 55°C (41°F to 131°F) and a non-operating temperature range of -40°C to 70°C (-40°F to 158°F). The drive is also designed to be shock-resistant and can withstand up to 70G of shock during operation.
Main Information about the HPE MB2000FAMYV
- Brand Name: HPE
- Model Number or SKU# MB2000FAMYV
- Type: Hard Drive
- HDD Capacity: 2 TB
- Form Factor: 3.5inch LFF
- Option Part Number: 507616-B21
- Spare Part Number: 508010-001
- Assembly Part Number: 507613-002
- Bytes per Sector: 512
- Buffer: 16 MB
- Drive Technology (Fill): Air
- Carrier Type: Standard Carrier
- Workload: Midline
- Features: Dual Port
- Bundled with: HPE Standard Carrier
Performance
- Seek Time: 8.5 ms (average) / 16.2 ms (max)
- Spindle Speed: 7200 RPM
- External Data Transfer Rate: 600 MBPS
- Track-to-Track Seek Time: 0.5 MS
Dimension and Weight
- Width : 4 Inch
- Depth : 5.8 Inch
- Height : 1 Inch
- Weight : 1.52 Lbs
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility Information
- HPE ProLiant DL Series: DL1000 DL120 (G6 G7) DL160 (G6 G7) DL160se (G6 G7) DL165 (G6 G7) DL170e (G6 G7)DL170h (G6 G7) DL180 (G6 G7) DL320 (G6 G7) DL360 (G4p G5 G6 G7) DL365 (G1 G5 G6 G7)DL370 (G6 G7) DL380 (G4 G5 G6 G7) DL385 (G1 G2 G3 G4 G5/G5p G6 G7)DL580 (G3 G4 G5 G6 G7) DL585 (G2 G3 G4 G6 G7) DL785 (G6)
- HPE ProLiant ML Series: ML 110 (G7) ML350 (G5 G6 G7) ML370 (G5 G6 G7) ML570 (G3 G4 G5)
- HPE Storage Systems: D2700 MSA 1040 MSA70 P2000 (G3) X1500 (G2) X16000 (G2) X1800 (G2) X3400 (G2)
- HPE StoragEeasy: X3800 (G2) 2000i (G2) 2000sa (G2)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
