Description
Product Overview

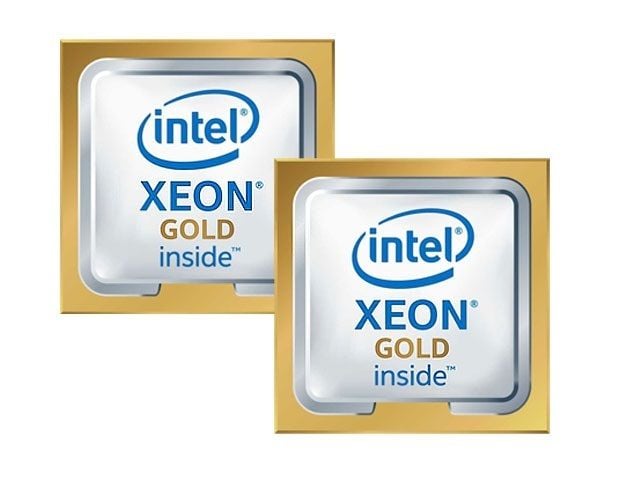

The HPE Xeon 16-core Gold 6246r Processor, model number P24175-B21, is a high-performance central processing unit (CPU) designed for use in enterprise-level servers and workstations. This processor features 16 cores and 32 threads, making it an ideal choice for demanding workloads that require high processing power.
Core Count and Thread Count
The HPE Xeon 16-core Gold 6246r Processor is equipped with 16 cores, which means it can execute up to 16 tasks simultaneously. Additionally, it has 32 threads, which is double the number of cores. Each thread can perform a separate task, which allows the processor to handle even more tasks at once. This makes it an excellent choice for applications that require parallel processing, such as scientific simulations, artificial intelligence, and machine learning.
Clock Speed and Cache
The clock speed of a CPU determines how quickly it can execute instructions. The HPE Xeon 16-core Gold 6246r Processor has a base clock speed of 3.4 GHz, which means it can perform 3.4 billion clock cycles per second. It also has a turbo frequency of up to 4.2 GHz, which allows it to increase its clock speed for short periods when additional processing power is required.
In addition to clock speed, the HPE Xeon 16-core Gold 6246r Processor has a large cache, which is a type of high-speed memory that stores frequently accessed data. This processor has a total cache size of 35.75 MB, which is divided into three levels: L1, L2, and L3. The L1 cache is the smallest and fastest, while the L3 cache is the largest and slowest. The cache helps to improve the processor’s performance by reducing the time it takes to access data.
Manufacturing Process
The HPE Xeon 16-core Gold 6246r Processor is manufactured using a 14nm process. This refers to the size of the transistors used in the processor’s design. A smaller transistor size allows more transistors to be packed into the same space, which increases the processor’s performance and efficiency. The 14nm process used in this processor is considered to be advanced technology, which ensures that it can handle the most demanding workloads.
Thermal Design Power
The thermal design power (TDP) of a CPU is the maximum amount of heat that it can generate under normal operating conditions. The HPE Xeon 16-core Gold 6246r Processor has a TDP of 205 watts, which is quite high compared to other processors. This means that it requires a robust cooling system to keep it from overheating during operation.
Compatibility
The HPE Xeon 16-core Gold 6246r Processor is designed to be compatible with HPE servers and workstations. It is also compatible with DDR4 memory, which is the latest and fastest type of memory available. This processor is an excellent choice for enterprise-level applications that require high processing power and reliability.
in summary, the HPE Xeon 16-core Gold 6246r Processor is a high-performance CPU designed for enterprise-level servers and workstations. It has 16 cores and 32 threads, a base clock speed of 3.4 GHz, and a cache size of 35.75 MB. It is manufactured using a 14nm process and has a TDP of 205 watts.
General Information
- Product Type : Server Processor
- Product Manufacturer : Intel
- MPN : P24175-B21
- Product Model : Gold 6246r
- SKU : P24175-B21
Technical Information
- Clock Speed : 3.40GHz
- Max Turbo Frequency : 4.10GHz
- No. Of Upi Links : 2
- Instruction Set : 64-bit
- Instruction Set Extensions : Intel® Sse4.2, Intel® Avx, Intel® Avx2, Intel® Avx-512
Cache Memory Detail
- Smart Cache : 35.75Mb
- Lithography : 14NM
- Max Thermal Design Power (TDP) : 205W
- Compatible Processor Socket : Fclga3647
Memory Specifications
- Max Memory Size (dependent On Memory Type) : 1TB
- Memory Types : DDR4-2933
- Maximum Memory Speed : 2.9GHz
- Max No. Of Memory Channels : 6
- Ecc Memory Supported : Yes
Dimension & weight
- Width: 2.8 Inch
- Depth : 3.9 Inch
- Height : 0.6 Inch
- Weight : 0.50 Lbs
