Description
Product Information

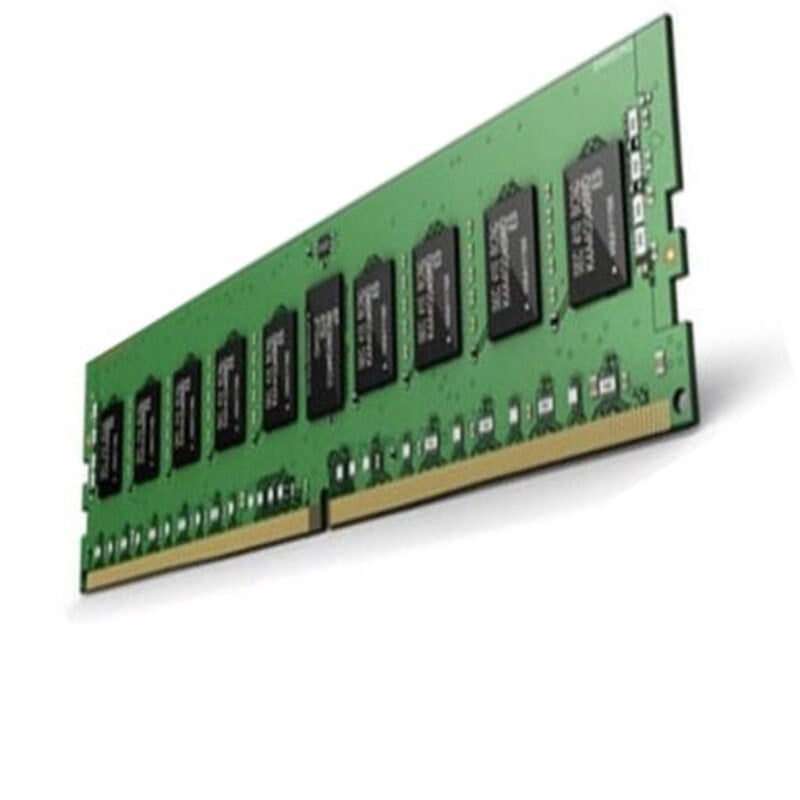

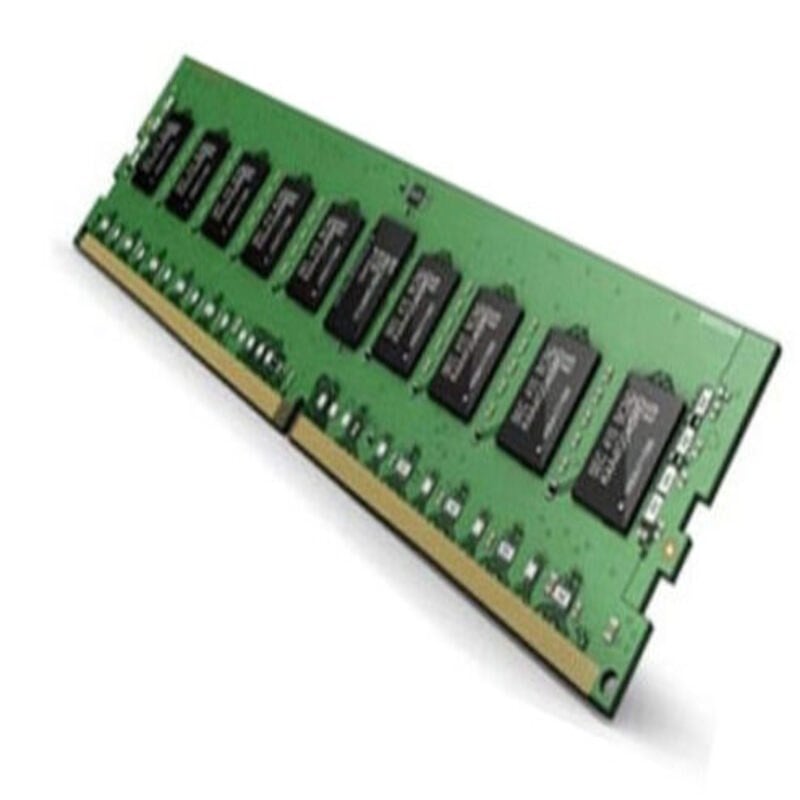

HMA41GR7AFR8N-UH is a DDR4 SDRAM memory module designed for server systems. In this article, we will explain in detail the specifications and features of this memory module, including its speed, capacity, latency, and power consumption. We will also discuss its compatibility, reliability, and manufacturer, Hynix.
Capacity
This memory module has a capacity of 8GB, which is suitable for most server applications. However, some high-end servers may require higher capacity memory modules.
Speed
The HMA41GR7AFR8N-UH memory module has a speed of 2400MHz, which means it can transfer data at a rate of 2.4 billion cycles per second. This speed is sufficient for most server applications, but some high-performance applications may require faster memory modules.
Latency
The latency of this memory module is CL17, which means it has a delay of 17 clock cycles to deliver data once it receives a request. Lower latency memory modules can deliver data faster, but they are usually more expensive.
Rank
The HMA41GR7AFR8N-UH memory module is a dual-rank memory module, which means it has two sets of memory chips that can be accessed independently. Dual-rank memory modules are faster than single-rank memory modules because they allow the memory controller to access more data in parallel.
ECC
This memory module supports Error Correcting Code (ECC), which is a mechanism to detect and correct errors in data. ECC memory is essential for server systems because it helps to prevent data corruption, which can cause system crashes and data loss.
Registered
The HMA41GR7AFR8N-UH memory module is a registered memory module, which means it has a register between the memory controller and the memory chips. Registered memory modules are more stable and reliable than unbuffered memory modules because they reduce the electrical load on the memory controller.
Voltage
This memory module operates at a voltage of 1.2V, which is the standard voltage for DDR4 memory modules. Lower voltage memory modules are more energy-efficient and produce less heat, which is important for server systems that operate 24/7.
Form factor
The HMA41GR7AFR8N-UH memory module has a form factor of 288-pin RDIMM, which is the standard form factor for DDR4 memory modules. This form factor is suitable for most server systems that use DDR4 memory.
Compatibility
The HMA41GR7AFR8N-UH memory module is compatible with most server systems that use DDR4 memory. However, it is important to check the server’s documentation to ensure compatibility before installing this memory module.
Reliability
Hynix is a reputable manufacturer of memory modules that has been in business for over 35 years. Hynix memory modules are known for their high quality, reliability, and performance. The HMA41GR7AFR8N-UH memory module comes with a limited lifetime warranty, which shows the manufacturer’s confidence in the product’s reliability.
In Summary, the HMA41GR7AFR8N-UH 8GB 2400MHz PC4-19200 CL17 dual rank x8 ECC registered 1.2V DDR4 SDRAM 288-pin RDIMM memory module is a reliable and high-performance memory module designed for server systems. Its capacity, speed, latency, rank, ECC, registered, voltage, and form factor make it suitable for most server applications. Its compatibility with most server systems and limited lifetime warranty make it a good investment for businesses that rely on their servers for mission-critical applications.
General Information about the Hynix HMA41GR7AFR8N-UH
- Manufacturer: Hynix
- Part Number or SKU# HMA41GR7AFR8N-UH
- Product Type: Memory (RAM)
- Product Name: 8GB Pc4-19200
Technical Information
- Storage Capacity: 8GB
- Memory Technology: DDR4 SDRAM
- Number of Modules: 1 X 8GB
- Bus Speed: 2400MHz DDR4-2400/PC4-19200
- Data Integrity Check: ECC
- Signal Processing: Registered
- Features: Dual Rank, Ultra Low Voltage
- Cas Latency Timings: CL17
- Voltage: 1.2V
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
