Description
Specification of the Transceiver

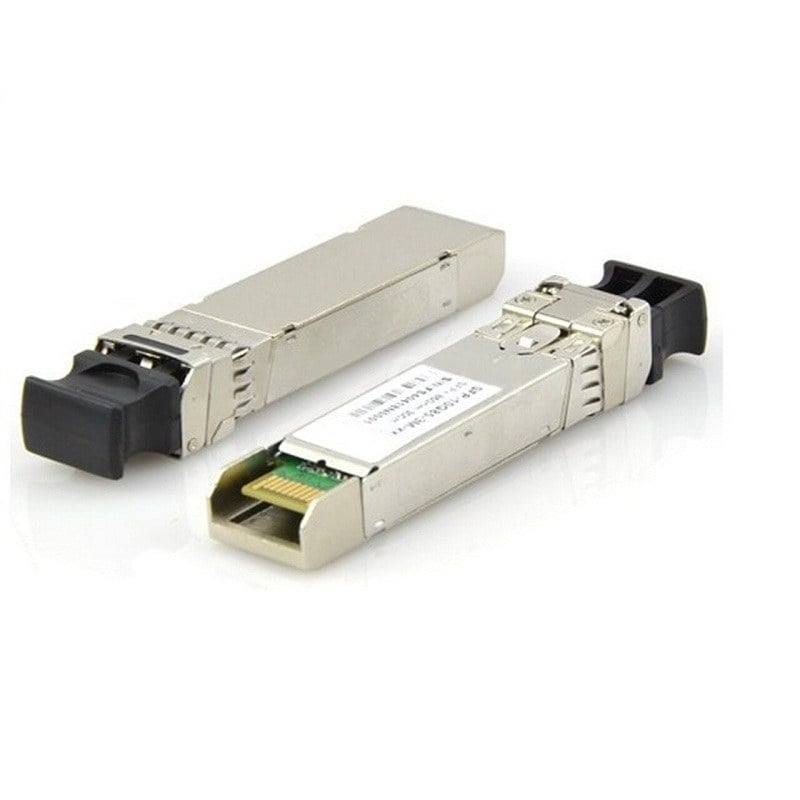

The E10GSFPSR is a high-performance Small Form-Factor Pluggable Plus (SFP+) transceiver module designed for use with the X520 Series Adapter. It boasts impressive capabilities, providing a data transfer rate of 10 Gigabits per second (Gbps) over multi-mode fiber. In this detailed exploration, we will delve into the key features, technical specifications, and applications of the E10GSFPSR, shedding light on its significance in high-speed networking environments.
Key FeaturesData Transfer Rate
- At the core of the E10GSFPSR’s appeal is its ability to facilitate a data transfer rate of 10 Gbps. This high-speed capability makes it suitable for applications requiring rapid and efficient data transmission.
Gigabit Ethernet Standard
- The transceiver module adheres to the Gigabit Ethernet standard, ensuring compatibility with a wide range of networking equipment. This standardization contributes to its versatility and interoperability in various network setups.
Multi-mode Fiber Compatibility
- The E10GSFPSR is specifically designed for multi-mode fiber connections. Multi-mode fibers enable the transmission of optical signals over short to medium distances, making this transceiver ideal for scenarios where such fiber types are deployed.
Wavelength and Duplex Configuration
- Operating at a wavelength of 850nm, the E10GSFPSR employs dual-rate duplex communication, enhancing its flexibility in accommodating different network configurations. This wavelength and duplex configuration contribute to its adaptability to various networking environments.
LC Connector
- The transceiver module is equipped with an LC (Lucent Connector) duplex connector. LC connectors are known for their compact design and ease of use, making them a popular choice in networking applications where space optimization is crucial.
Technical Specifications
- Transmission Distance: The E10GSFPSR is capable of transmitting data over distances of up to 300 meters. This makes it suitable for applications where moderate to short-range connectivity is required.
- Operating Wavelength: With an operating wavelength of 850nm, the transceiver utilizes the advantages of the near-infrared spectrum, optimizing signal transmission over multi-mode fiber.
- Compatibility: Designed specifically for use with the X520 Series Adapter, the E10GSFPSR ensures seamless integration and performance when paired with compatible networking hardware. This compatibility enhances its utility in environments utilizing the X520 Series.
- Temperature Range: The transceiver module operates within a specified temperature range, ensuring reliable performance even in varying environmental conditions. Understanding and adhering to these temperature specifications is essential for maintaining the longevity and efficiency of the module.
Advanced Technologies of Ethernet Transceiver
- The E10GSFPSR Intel SFP+ 10Gbase-SR Plug-In Transceiver Module is a small form-factor pluggable (SFP+) module that can be used with network devices such as switches and adapters to provide 10 Gigabit Ethernet connectivity over optical fiber cables. The module supports the 10Gbase-SR standard, which is a short-range version of 10 GbE that uses multi-mode fiber (MMF) cable with a maximum distance of up to 300 meters.
- This product Intel SFP+ 10Gbase-SR Plug-In Transceiver Module supports advanced technologies such as Digital Diagnostics Monitoring (DDM) which provides real-time monitoring of the transceiver’s temperature, voltage, and other important parameters. This allows for early detection of potential issues, enabling proactive maintenance and reducing the risk of downtime.
- Additionally, the transceiver supports the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, which reduces power consumption during periods of low network activity. This helps to reduce power costs and improve the energy efficiency of the network.
Quality Components
- The E10GSFPSR Intel SFP+ 10Gbase-SR Plug-In Transceiver Module is built with quality components to ensure reliability and durability.
- One of the key components of the transceiver is the optical transceiver module, which is responsible for converting electrical signals to optical signals and vice versa. These optical transceiver modules used in the model are compliant with industry standards and are of high quality to ensure maximum performance and compatibility with various network environments.
- The transceiver also uses high-quality components such as capacitors, resistors, and other electronic components that help to ensure the stability and longevity of the transceiver. Additionally, the transceiver’s PCB (printed circuit board) is designed to provide optimal signal integrity and minimize the effects of electromagnetic interference (EMI) to ensure consistent and reliable performance.
- Furthermore, the part Intel SFP+ 10Gbase-SR Plug-In Transceiver Module is designed to meet industry standards such as RoHS (Restriction of Hazardous Substances) and TUV (Technical Inspection Association) which ensures that the product meets the environmental and safety standards.
Benefits and Features
The E10GSFPSR Intel SFP+ 10Gbase-SR Plug-In Transceiver Module is a high-performance transceiver that offers a range of benefits and features, including:
10 GbE connectivity
- The transceiver supports the 10Gbase-SR standard, providing high-speed 10 GbE connectivity over multi-mode fiber (MMF) cables, which is ideal for data centers, cloud computing, and other demanding network environments.
Short range
- The transceiver supports the 10Gbase-SR standard, which is a short-range version of 10 GbE that uses multi-mode fiber (MMF) cable with a maximum distance of up to 300 meters, making it ideal for short-distance connections.
Digital Diagnostics Monitoring
- The transceiver supports Digital Diagnostics Monitoring (DDM) which provides real-time monitoring of the transceiver’s temperature, voltage, and other important parameters, allowing for early detection of potential issues, enabling proactive maintenance, and reducing the risk of downtime.
Energy Efficient Ethernet
- The transceiver supports the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, which reduces power consumption during periods of low network activity, this helps to reduce power costs and improve the energy efficiency of the network.
Compliance
- The transceiver is compliant with RoHS (Restriction of Hazardous Substances) and TUV (Technical Inspection Association) which ensures that the product meets the environmental and safety standards.
Plug-In design
- The transceiver is designed as a plug-in module, allowing for easy installation and replacement, making it ideal for use in network devices such as switches and adapters.
Product Details about this Intel E10GSFPSR
- Manufacturer: Intel
- Part Number or SKU# E10GSFPSR
- Type: Networking
- Networking Type: Transceiver
- Product Name: 10 Gigabit
- Dimensions: 8 x 6 x 2 Inches
Networking
- Connectivity Technology: Wired
- Cabling Type: 1000Base-Sx, 10Gbase-Sr
- Data Link Protocol: GIGABIT Ethernet, 10 GIGABIT Ethernet
Expansion / Connectivity
- Interfaces: 1 X Network – Ethernet 10Gbase-SR
- Compatible Slots: 1 X SFP+
In general, the E10GSFPSR 10 Gigabits Per Second (Gbps) SFP+ Transceiver Module for X520 Series Adapter is a powerful networking component with a range of features and capabilities. Its 10 Gbps data transfer rate, multi-mode fiber compatibility, and adherence to industry standards make it a versatile solution for various networking environments, including data centers, enterprises, telecommunication networks, and high-performance computing. Understanding its technical specifications and applications is crucial for network administrators and professionals seeking to optimize their infrastructure with high-speed and reliable connectivity.
