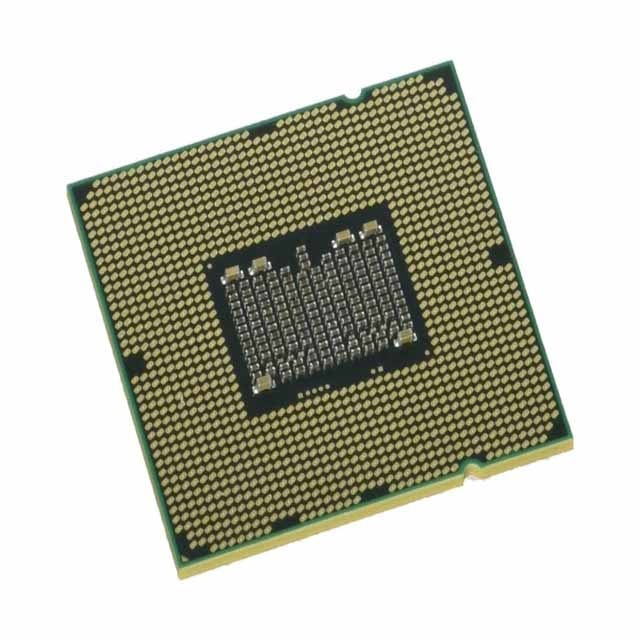

Overview of the SR205 Intel Xeon E5-2640v3 Processor
The SR205 Intel Xeon E5-2640v3 is a server processor from the Intel Xeon E5-2600 v3 product family. It is designed for use in data center and enterprise-level environments.
The processor has 8 cores and 16 threads, and is built on a 22nm manufacturing process. It has a base clock speed of 2.6GHz and a maximum turbo frequency of 3.4GHz. It also features 20MB of L3 cache and 8 GT/s QPI (Quick Path Interconnect) for fast communication between the processor and other components in the system.
The SR205 Intel Xeon E5-2640v3 is built on the FCLGA2011-3 socket and has a TDP (thermal design power) of 90 watts. It supports Intel’s Hyper-Threading, Turbo Boost, and Virtualization technologies, and is compatible with DDR4 memory.
This processor is suitable for high-performance computing and large-scale enterprise workloads, such as virtualization, databases, and big data analytics.
Performance Comparison with other Xeon Processors
The SR205 Intel Xeon E5-2640v3 is a member of the Intel Xeon E5-2600 v3 product family, which includes several other processors with similar performance characteristics.
Compared to the E5-2640v3, the E5-2650 v3 and E5-2660 v3 have a higher base clock speed of 2.3GHz and 2.6GHz respectively, but the same maximum turbo frequency of 3.4GHz. They also have the same amount of L3 cache, but the E5-2660 v3 has a slightly higher TDP of 105 watts.
The E5-2650L v3 has a lower base clock speed of 1.8GHz, but a higher turbo frequency of 3.3GHz, and is designed to have a lower TDP of 60 watts. It also has a smaller L3 cache of 15MB.
All of these processors are designed for high-performance computing and enterprise workloads. The main difference between them is their core count and clock speeds, where E5-2660 v3 and E5-2650 v3 have more cores and higher clock speeds than E5-2640v3.
It is worth noting that the performance of a processor is affected by many factors, such as the memory, storage, and other components in the system. In order to get the most accurate performance comparison, it is recommended to test the processors in a similar system configuration.
Applications and Use Cases for the SR205 Intel Xeon E5-2640v3 Processor
The SR205 Intel Xeon E5-2640v3 processor is designed for use in data center and enterprise-level environments. Some common use cases and applications include:
- Virtualization: The processor supports Intel’s Virtualization technology, which allows multiple virtual machines to share a single physical server. This can help to increase the efficiency and utilization of server resources.
- Databases: The processor’s high core count and large L3 cache make it well-suited for running large, complex databases. It is often used in data warehousing, Business Intelligence (BI), and other data-intensive workloads.
- Cloud Computing: The processor can be used in cloud computing environments, such as public and private clouds, to support various services like Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Software as a Service (SaaS).
- High-Performance Computing (HPC): The processor can be used in HPC applications, such as simulations, modeling, and analytics. This is due to its high core count and fast clock speed.
- Enterprise-level Workloads: The processor is suitable for enterprise-level workloads, such as enterprise resource planning (ERP), customer relationship management (CRM), and supply chain management (SCM) systems, that require large amounts of processing power and memory.
- Web Server: The processor can be used to power web servers and applications, handling high traffic and many concurrent connections.
It’s worth noting that the performance of a processor is affected by many factors, such as the memory, storage, and other components in the system. In order to get the most accurate performance for a specific application or use case, it is recommended to test the processor in a similar system configuration.
General Information
- Manufacturer: Intel
- Manufacturer part number: SR205
- Type: Processor
- Sub-Type: Intel Xeon Octa Core
Technical Information
- Processor Core : Octa-Core
- Clock Speed : 2.6 GHz
- Max Turbo Frequency : 3.4 GHz
- Quickpath Interconnect(QPI) Speed : 8 GT/S
- Instruction Set : 64-Bit
- Instruction Set Extensions : Avx
Cache Memory Detail
- L3 Cache : 20 MB
- Lithography : 22 NM
- Max Thermal Design Power (TDP) : 90 W
- Compatible Processor Socket : FCLGA2011-3
Advanced Technologies
- Turbo Boost Technology : 2.0
- Hyper-Threading Technology
- Vpro Technology
- Virtualization Technology(Vt-X)
- Virtualization Technology For Directed I/O(Vt-D)
- Extended Memory 64 Technology
- Enhanced Speedstep Technology
- Trusted Execution Technology
- Thermal Monitoring Technologies
