Description
Advanced security features of L3 Switch
The QFX5100-48S-AFI is a Layer 3 managed 48-port switch from Juniper that includes advanced security features. Some of the key features include:
- Support for advanced routing protocols such as OSPF and BGP, allowing for efficient and scalable routing between different networks.
- Integrated firewall capabilities, including stateful inspection and access control lists, to help protect against unauthorized access and network attacks.
- Support for Virtual Extensible LAN (VXLAN) and other virtualization technologies, allowing for the creation of virtual networks within a single physical infrastructure.
- Advanced Quality of Service (QoS) features, including traffic shaping and prioritization, to help ensure that important traffic is given priority over less critical traffic.
- Support for Juniper’s Advanced Feature Interface (AFI) and Junos Fusion, which provide additional capabilities such as network automation and telemetry.
- Advanced security features like IDS/IPS, VPN and DDoS protection
- Support for Junos Space Security Director to easily manage security policies and reporting.
Managing and Monitoring
The QFX5100-48S-AFI is a Layer 3 managed switch, which means it can be configured and managed through a network management system. Some of the key management and monitoring features of the QFX5100-48S-AFI include:
- Support for the Junos operating system, which provides a consistent command-line interface (CLI) and feature set across all Juniper devices.
- Support for the Junos Space Network Management Platform, which allows for centralized management and monitoring of multiple devices in a network.
- Support for SNMP, which allows for the collection of statistics and performance data from the switch, as well as the ability to send alarms and notifications in the event of a problem.
- Support for RMON, which allows for the monitoring of network traffic in real-time and the collection of historical data for analysis and troubleshooting.
- Support for syslog, which allows for the collection and storage of event and error messages from the switch for analysis and troubleshooting.
- Support for J-Web, a web-based interface that allows for the management and monitoring of the switch through a web browser.
- Support for Junos Space Security Director, which allows for the management and monitoring of security policies and reporting.
- Support for Junos Fusion, which allows the QFX5100-48S-AFI to be managed as part of a larger, virtualized network infrastructure.
Deployment and Configuration
The QFX5100-48S-AFI is a Layer 3 managed switch that can be deployed and configured in a variety of ways. Some key considerations when deploying and configuring the QFX5100-48S-AFI include:

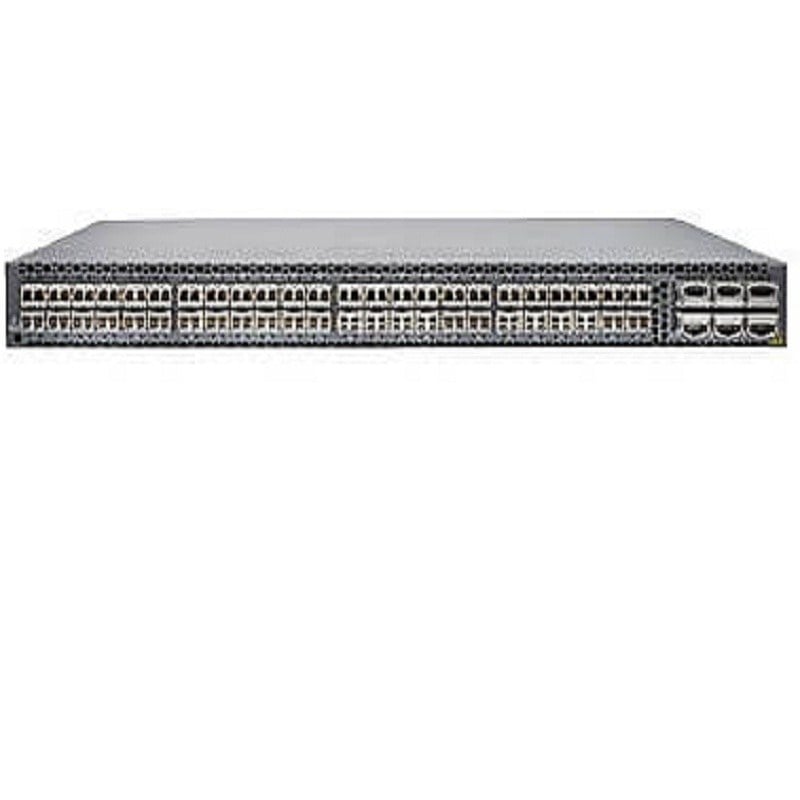

- Physical deployment: The QFX5100-48S-AFI is a 1U rack-mountable switch that can be deployed in a data center or other enterprise environment. It has 48 SFP+ ports and 4 QSFP+ ports for high-speed uplink connectivity.
- Network topology: The QFX5100-48S-AFI supports advanced routing protocols such as OSPF and BGP, allowing for efficient and scalable routing between different networks. It can be used as a core, aggregation or access switch in a network.
- Network management: The QFX5100-48S-AFI can be managed and configured through a variety of methods, including the command-line interface (CLI), the web-based interface (J-Web), or a network management platform such as Junos Space.
- Network security: The QFX5100-48S-AFI includes advanced security features such as firewall, VPN and DDoS protection that can be configured through the CLI or through a network management platform like Junos Space Security Director
- Network virtualization: The QFX5100-48S-AFI supports virtual extensible LAN (VXLAN) and other virtualization technologies, allowing for the creation of virtual networks within a single physical infrastructure.
- Quality of Service (QoS): The QFX5100-48S-AFI supports advanced QoS features, including traffic shaping and prioritization, which can be configured through the CLI or network management platform
- Network Automation: The QFX5100-48S-AFI supports Junos Space Network Automation and Junos Fusion, which provide capabilities such as network automation and telemetry.
- Before configuring the switch, it’s important to plan the network and the policies that should be applied, the interfaces that should be configured, the routing protocols that should be enabled, etc.
- The switch should be configured and tested in a lab environment before deploying it in production to avoid issues and minimize downtime.
General Information QFX5100-48S-AFI Juniper Layer 3 Switch:Brand Name: Juniper
Manufacturer Part Number: Qfx5100-48s-Afi
Manufacturer: Juniper Networks, Inc
Product Name: Qfx5100-48s-Afi Layer 3 Switch
Product Type: Layer 3 SwitcTECHNICAL INFORMATIONI/O Expansions :
Expansion Slot Type: QSFP+
Expansion Slot Type: Sfp+
Number Of Sfp+ Slots: 48
Number Of Total Expansion Slots: 54INTERFACES/PORTS :Bypass: No
Ethernet Technology: 10 Gigabit Ethernet
Ethernet Technology: 40 Gigabit Ethernet
Lre Port: No
Management Port: Yes
Modular: No
Poe (Rj-45) Port: No
Port/Expansion Slot Details: 48 X 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details: 6 X 40 Gigabit Ethernet Expansion Slot
Token Ring Port: No
Usb: Yes
Management & Protocols:
Manageable: Yes
Management:
Command Line Interface (Cli)
Web-Based Management
Telnet
Snmp V1/2/3
Sflow
Mib
Vlan
Dhcp
QosMEMORY:Standard Memory: 8 Gb.
