Description
Product Overview

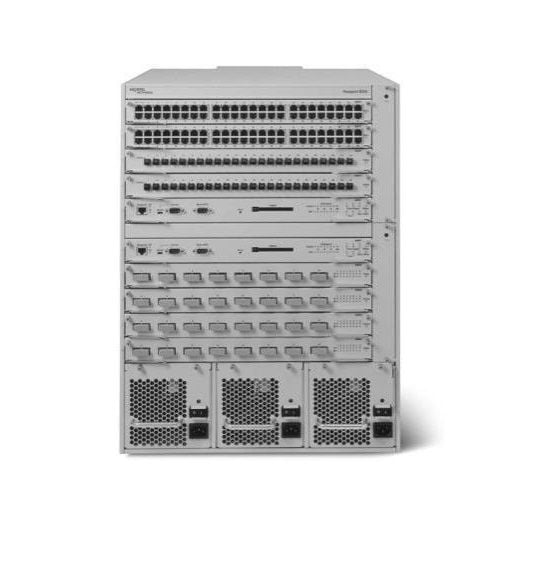

The DS1402001 Nortel Passport Ethernet Switch 8010 is a 10-slot chassis switch designed for large-scale enterprise networks. This switch is part of the Passport series of switches from Nortel Networks, a multinational telecommunications equipment manufacturer based in Canada. The Passport Ethernet Switch 8010 is a powerful and reliable switch that provides high-performance switching capabilities for large-scale networks.
Features and Benefits
The Nortel Passport Ethernet Switch 8010 comes with several features and benefits that make it a valuable addition to enterprise networks. Here are some of the most notable ones:
High Port Density: The Passport Ethernet Switch 8010 comes with 10 slots, providing high port density for large-scale networks. The switch can support up to 240 10/100 Ethernet ports or 60 Gigabit Ethernet ports.
Scalability: The switch is highly scalable and can be expanded as needed by adding more modules. This makes it a flexible option for growing networks.
Redundancy: The Passport Ethernet Switch 8010 comes with built-in redundancy features that ensure maximum uptime and reliability for critical applications. The switch supports hot-swappable modules, redundant power supplies, and redundant management modules.
Advanced Security Features: The Passport Ethernet Switch 8010 provides advanced security features, including access control lists (ACLs), Secure Shell (SSH) encryption, and IEEE 802.1x authentication. These features help to secure the network against unauthorized access and prevent network attacks.
Advanced QoS Features: The switch supports advanced Quality of Service (QoS) features that prioritize traffic based on its importance. This ensures that critical applications get the bandwidth they need, while less important traffic is relegated to lower priority queues.
Ease of Management: The Passport Ethernet Switch 8010 is easy to manage and comes with a user-friendly web-based management interface. The switch also supports SNMP (Simple Network Management Protocol), making it easy to integrate into existing network management systems.
High Performance: The Passport Ethernet Switch 8010 is a high-performance switch that can handle even the most demanding network applications. The switch has a switching capacity of up to 480 Gbps and can support wire-speed switching on all ports.
Design and Build
The Nortel Passport Ethernet Switch 8010 has a sleek and modern design that is both stylish and functional. The switch is built to last and features a sturdy metal chassis that can withstand even the most challenging network environments. The switch is rack-mountable and takes up 10 rack units (RU) of space.
The front of the switch features 10 slots for modules, along with LED indicators for power, system status, and module status. The switch also has a console port, a USB port, and two Gigabit Ethernet ports for management.
At the back of the switch, there are two power supply bays for redundant power supplies, along with two management module slots for redundant management modules. The switch also has two Gigabit Ethernet ports for uplink connectivity.
Modules
The Passport Ethernet Switch 8010 supports several different types of modules that can be used to customize the switch to meet specific network requirements. Here are some of the most common modules:
Ethernet Switching Modules: These modules provide 10/100 or Gigabit Ethernet connectivity for end devices.
Service Modules: These modules provide advanced services such as firewall, VPN, and intrusion prevention.
Storage Modules: These modules provide storage connectivity for iSCSI or Fibre Channel storage networks.
Management Modules: These modules provide redundant management capabilities for the switch.
Power Supplies: These modules provide redundant power to the switch.
General Information about the Nortel DS1402001
- Manufacturer : Nortel
- Part Number or SKU # DS1402001
- Device Type: Expansion Switch
Networking
- Connectivity technology : wired
- Enclosure type : External
- Installed modules qty (max) : 0 (installed) / 10 (max)
Expansion / Connectivity
- Expansion Slots Total (Free) : 10 ( 10 ) X Expansion Slot
Power
- Power device : Power supply – plug-in module
- Installed qty : 1 (installed) / 2 (max)
- Voltage required : AC 110/220 v ± 20% ( 47/63 hz )
- Power consumption Operational : 1100 watt
