Description
Secure Scalability & Accessibility

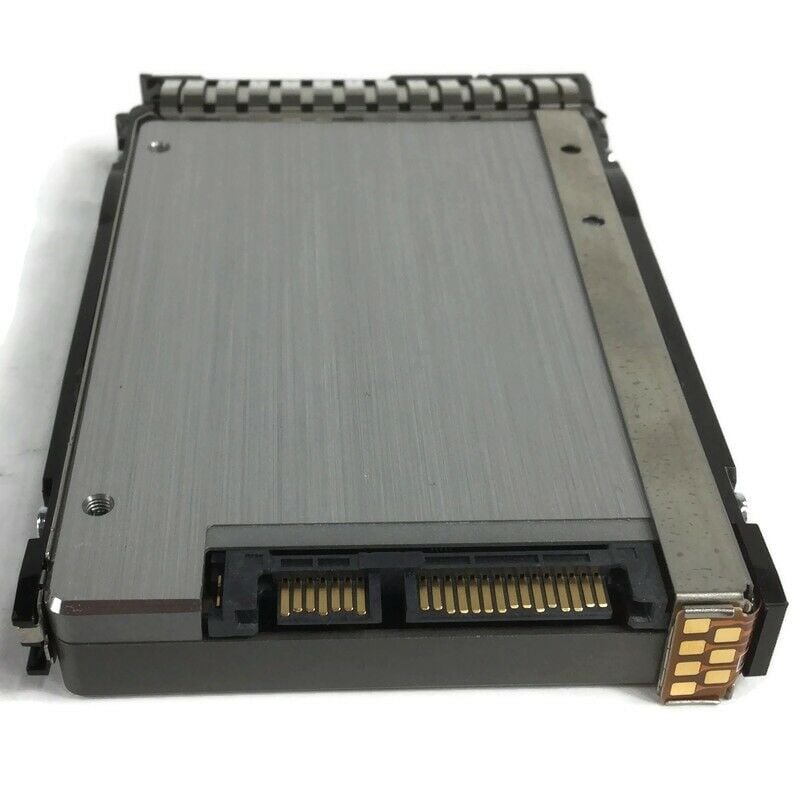

The P23489-H21 HPE 3.84TB SATA-6GBPS Read Optimized Solid State Drive is designed for use in high-performance data center environments. It offers both secure scalability and accessibility, which are critical factors for organizations that are looking to store and manage large amounts of data.
Secure scalability refers to the ability of a storage solution to accommodate an increasing amount of data in a secure and manageable way. The P23489-H21 drive provides secure scalability by supporting encryption and authentication mechanisms that help to protect the data stored on it. This ensures that sensitive data remains confidential and secure even as the amount of data grows.
Accessibility refers to the ease with which data can be retrieved and used by authorized users. The P23489-H21 drive provides high accessibility by offering fast read performance and low latency, allowing users to quickly and efficiently access the data they need. The SATA-6GBPS interface also provides a reliable and high-speed connection to the host system, which helps to ensure that data can be accessed quickly and reliably.
Facilities of SATA SSD
SATA (Serial Advanced Technology Attachment) is a computer bus interface used for connecting host bus adapters to mass storage devices such as hard disk drives and solid state drives. SATA provides a number of facilities, including:
- High-speed data transfer: SATA supports a maximum data transfer rate of 6 Gbps, which is significantly higher than its predecessor, IDE (Integrated Drive Electronics).
- Easy cable management: SATA cables are thin, flexible and have a much smaller form factor compared to IDE cables, making them easier to manage in tight spaces.
- Hot-swapping: SATA supports hot-swapping, which allows users to replace or add new storage devices without having to restart the computer.
- Native Command Queuing (NCQ): SATA supports NCQ, which enables storage devices to reorder commands, resulting in improved overall system performance.
- Legacy support: SATA provides backward compatibility with IDE devices, allowing users to continue to use their existing storage devices.
- Improved error handling: SATA provides improved error handling, including cyclic redundancy check (CRC) and automatic error recovery.
- Power management: SATA supports power management, reducing power consumption and increasing efficiency.
- Scalability: SATA supports scalability, allowing users to add or replace storage devices as needed.
Backup & Restore Facilities
The HPE 3.84TB SATA-6GBPS Read Optimized Solid State Drive (P23489-H21) does not have built-in backup and restore facilities. However, there are several ways to backup and restore data on this drive:
- Using operating system backup and restore: Most operating systems, such as Windows and Linux, have built-in backup and restore facilities that allow users to backup and restore data on the drive.
- Using third-party backup software: There are many third-party backup software programs available that allow users to backup and restore data on the drive. These programs provide additional features such as incremental backups, compression, encryption, and the ability to schedule backups.
- Using cloud backup services: Cloud backup services, such as Google Drive, Dropbox, and Amazon S3, allow users to backup and restore data on the drive by uploading and downloading data from the cloud.
Regardless of the method used, it is important to regularly backup important data to ensure that it is safe and secure in the event of hardware failure or data loss.
Detail Features of HPE P23489-H21
- Brand Name: HPE
- Model Number or SKU # P23489-H21
- Device Type: Solid State Drive – Hot-Swap
- Capacity: 3.84 TB
- NAND Flash Memory Type: Quad-Level Cell (QLC)
- Connectivity: Single Port
- Form Factor: 2.5 inch SFF
- Interface: SATA 6Gbps
- Plug Type: Hot Pluggable
- Carrier Type: Smart Carrier (SC)
- Workload Type: Very Read Optimized
- Features: Digitally Signed Firmware
- Bundled with: HPE Smart Carrier
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 7 mm
Performance of HPE P23489-H21 3.84 SSD
- Lifetime Writes: 630
- Endurance DWPD (Drive Writes Per Day): 0.09
- Drive Transfer Rate: 6 Gb/sec (external)
- MAX Seq. Reads Throughput (MiB/s): 490
- MAX Seq. Writes Throughput (MiB/s): 330
- Random Read Average Latency uSec (4KiB,Q1): 175
- Random Write Average Latency uSec (4KiB,Q1): 141
- Random Read IOPS (4KiB, Q=16): 53000
- Random Write IOPS (4KiB, Q=16): 7000
- Max Random Read IOPS (4KiB): 65000@Q32
- Max Random Write IOPS (4KiB): 7100@Q1
Expansion & Connectivity of HPE 3.84TB SATA-6GBPS SSD
- Interfaces: 1 x SATA 6 GB/s
- Compatible Bay: 2.5 Inch SFF
Power Consumption
- Idle Time: 1.70 Watt
- Random Read: 2.20 Watt
- Random Write: 2.20 Watt
- Sequential Read: 3.29 Watt
- Sequential Write: 5.30 Watt
- Random Read/Write: 2.20 Watt
- Power MAX: 5.30 Watt
Product Dimensions & Weight
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 lbs
Compatibility Information of HPE Very Read Optimized SSD
Designed for
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (2.5inch), Medium Solution with HPE ProLiant DL325 Gen10 Plus (2.5inch), Medium Solution with HPE ProLiant DL360 Gen10 (2.5inch), Small Solution with HPE ProLiant DL360 Gen10 (2.5inch)
- HPE ProLiant DL Series: DL180 Gen10 Base (2.5inch), DL180 Gen10 Entry (2.5inch), DL180 Gen10 SMB (2.5inch), DL20 Gen10 (2.5inch), DL20 Gen10 Entry (2.5inch), DL20 Gen10 Performance (2.5inch), DL20 Gen10 solution (2.5inch), DL325 Gen10 (2.5inch), DL325 Gen10 Base (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (2.5inch), DL325 Gen10 Plus for Weka Expansion Tracking (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 All Flash Server for Weka (2.5inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance for Cohesity DataPlatform (2.5inch), DL360 Gen10 Premium (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Special Server (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for SAP HANA Compute Block (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5inch), DL380 Gen10 Server for CTERA (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 Plus (2.5inch), DL385 Gen10 Plus Entry (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL388 Gen10 (2.5inch), DL560 Gen10 for SAP HANA Compute Block (2.5inch)
- HPE ProLiant ML Series: ML30 Gen10 (2.5inch), ML30 Gen10 Entry (2.5inch), ML30 Gen10 Performance (2.5inch), ML30 Gen10 Solution (2.5inch), ML350 Gen10 High Performance (2.5inch), ML350 Gen10 SMB (2.5inch), ML350 Gen10 Special Server (2.5inch)
- HPE Synergy 480 Gen10 Plus Base Compute Module (2.5inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
