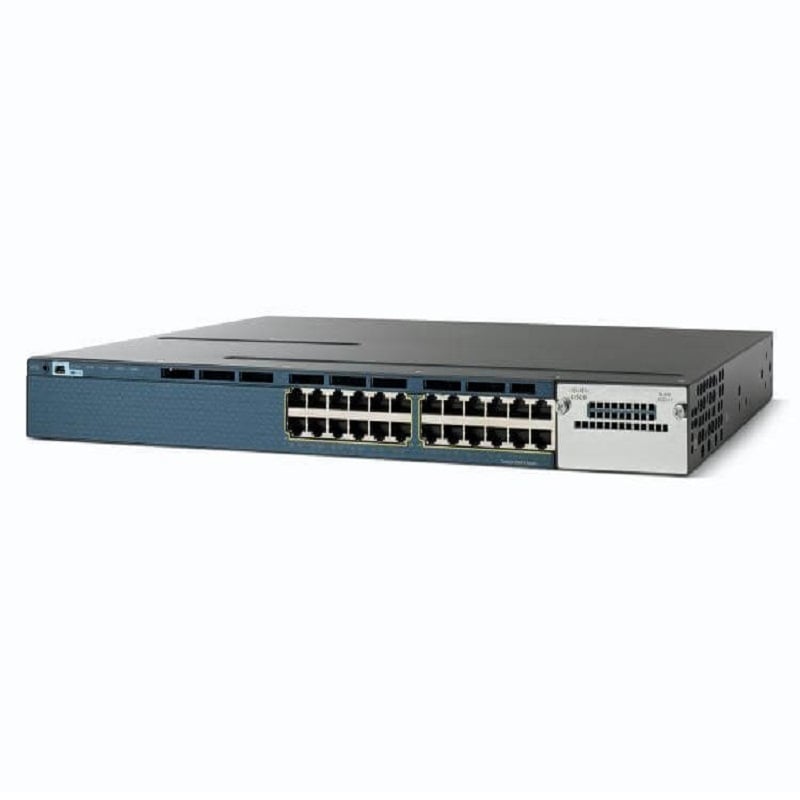

Product Overview of the Cisco WS-C3560X-24P-S Manageable Switch
The Cisco WS-C3560X-24P-S is part of the Catalyst 3560-X Series, designed to meet the demands of modern networking environments. As a 24-port Ethernet switch, it provides a comprehensive solution for organizations seeking high-performance networking capabilities. The Cisco WS-C3560X-24P-S is a member of the Catalyst 3560-X Series, renowned for its robust performance and advanced features. As a 24-port Ethernet switch, it is designed to meet the demands of modern network environments, offering a seamless blend of speed, power, and manageability.
24 Ports and Speed
One of the defining features of the Cisco WS-C3560X-24P-S is its 24-Ports 10/100/1000Base-TX RJ-45, offering versatile connectivity options. These ports support Gigabit Ethernet speeds, ensuring fast and reliable data transfer within the network. This configuration makes the switch suitable for a wide range of applications, from basic office networking to more demanding tasks in data-intensive environments.
Power Over Ethernet Plus (PoE+)
A notable aspect of the Cisco WS-C3560X-24P-S is its Power Over Ethernet Plus (PoE+) capability. PoE+ enables the switch to deliver both data and electrical power over the Ethernet cables to connected devices such as IP cameras, VoIP phones, and wireless access points. This eliminates the need for additional power sources and simplifies the deployment of devices in locations where power outlets may be scarce.
Manageability and Layer 2 Functionality
The Cisco WS-C3560X-24P-S is equipped with advanced manageability features, making it a versatile solution for network administrators. It operates at Layer 2 of the OSI model, providing fundamental switching functions and facilitating efficient traffic management within a local network. Administrators can configure and monitor the switch easily, ensuring optimal performance and security.
Rack-Mountable Design
Designed for easy integration into existing network setups, the Cisco WS-C3560X-24P-S boasts a rack-mountable form factor. Its 1U size makes it a space-efficient solution, allowing organizations to maximize their rack space while enjoying the benefits of a high-density and high-performance switch. The rack-mountable design also simplifies installation and maintenance, contributing to the overall efficiency of network operations.
Performance and Throughput
In terms of performance, the Cisco WS-C3560X-24P-S is engineered to deliver impressive throughput and reliability. With Gigabit Ethernet support, the switch ensures that data can be transferred at high speeds, meeting the demands of bandwidth-intensive applications. Its architecture is designed to handle heavy workloads, making it suitable for networks with diverse traffic patterns.
Security Features
Security is a top priority in modern networking, and the Cisco WS-C3560X-24P-S addresses this concern with a range of robust security features. The switch supports features such as port security, Access Control Lists (ACLs), and advanced threat detection mechanisms. These security measures help in safeguarding the network against unauthorized access, ensuring the confidentiality and integrity of sensitive data.
Scalability and Flexibility
As businesses grow, so do their networking requirements. The Cisco WS-C3560X-24P-S is designed with scalability in mind. It can seamlessly integrate into larger network infrastructures, allowing organizations to expand their operations without compromising on performance. Additionally, the switch’s flexibility ensures compatibility with a variety of network architectures and topologies.
Energy Efficiency
In an era where environmental sustainability is a key consideration, the Cisco WS-C3560X-24P-S incorporates energy-efficient technologies. It comes with features such as Energy Efficient Ethernet (EEE) and Cisco’s innovative Power Efficient Technology, contributing to reduced power consumption without compromising on performance. This not only aligns with eco-friendly practices but also translates into cost savings for businesses.
Reliability and Redundancy
Network downtime can have significant consequences for businesses. The Cisco WS-C3560X-24P-S addresses this concern by incorporating reliability and redundancy features. These include redundant power supplies and hot-swappable fans, ensuring that the switch can continue to operate seamlessly even in the event of a component failure. This high level of reliability is crucial for mission-critical applications and 24/7 business operations.
Benefits for Network AdministratorsSimplified Deployment and Management
The combination of PoE+ and advanced manageability features simplifies the deployment and ongoing management of the network. With reduced dependency on external power sources and comprehensive management capabilities, administrators can optimize resource allocation and respond promptly to evolving network requirements.
Enhanced Security
The VLAN support and MAC address learning features contribute to a more secure network environment. VLAN segmentation prevents unauthorized access between different segments of the network, while MAC address learning ensures that data frames are forwarded accurately to their intended destinations.
Flexible and Scalable Design
The 24-port configuration, rack-mountable design, and support for numerous VLANs make the WS-C3560X-24P-S a flexible and scalable solution. Organizations can adapt the switch to their evolving needs, whether expanding the network, reconfiguring VLANs, or accommodating new devices.
Reliable Performance
The Layer 2 functionality of the switch, coupled with its efficient data frame switching, ensures reliable and low-latency performance. This is crucial for applications that demand quick data transfer, such as video conferencing, voice-over IP (VoIP), and real-time data processing.
High Performance
The WS-C3560X-24P-S Cisco Catalyst 3560-X Series 24 Ports Switch is a high-performance network switch designed for use in enterprise environments. This switch is part of the 3560-X series, which is known for its high-speed data transfer capabilities, advanced security features, and easy management.
The switch has 24 Gigabit Ethernet ports, which can be used to connect a variety of devices such as servers, workstations, and storage devices. These ports are designed to support high-bandwidth applications such as video streaming and virtualization, making them ideal for use in data centers and other demanding environments.
The switch also features advanced security features such as Access Control Lists (ACLs) and Secure Shell (SSH) protocol, which help to protect the network against unauthorized access and malicious attacks. Additionally, the switch is equipped with an easy-to-use web-based management interface, which allows administrators to easily monitor and configure the switch.
Compliant Standards
allowing for a more efficient and cost-effective network deployment.
- IEEE 802.1Q: This standard defines the Virtual LAN (VLAN) tagging protocol, which allows for the creation of multiple virtual networks on a single physical network. The switch is compliant with IEEE 802.1Q, allowing for the creation and management of VLANs to segment and secure the network.
- IEEE 802.1D: This standard defines the Spanning Tree Protocol (STP), which is used to prevent network loops and ensure a loop-free topology in a network. The switch is compliant with IEEE 802.1D, which allows for the automatic detection and prevention of network loops.
- IEEE 802.1X: This standard defines the Authentication, Authorization, and Accounting (AAA) framework for network access control. The switch is compliant with IEEE 802.1X, which allows for secure and controlled access to the network based on user authentication.
- SNMPv3: This standard defines the Simple Network Management Protocol version 3, which is used for managing and monitoring network devices. The switch is compliant with SNMPv3, allowing for easy integration with network management systems and tools.
General Information about this Cisco WS-C3560X-24P-S Ethernet Switch
- Manufacturer: Cisco
- Part Number or SKU# WS-C3560X-24P-S
- Product Line: Catalyst
- Product Series: 3560-X
- Product Type: Ethernet Switch
Technical Information
- Total Ports: 24
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- PoE Ports: 24 (RJ-45)
I/O Expansions
- Total Expansion Slots: 2
- Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
- Ethernet Technology: Gigabit Ethernet, Fast Ethernet
- Network Technology: 10/100/1000Base-T
Network Support
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
- Protocols: CLI, DHCP, VLAN, QoS, SNMP v1,2c,3, RMON
Networking
- Virtual Interfaces (VLANs): 1005
- Jumbo Frame Support: 9216 bytes
- Routing Protocol: RIP-1, RIP-2, HSRP, static IP routing, RIPng
- Remote Management Protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
- Authentication Methods: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Compliant Standards: IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.1ae
Expansion / Connectivity
- Interfaces: 24 x 10Base-T/100Base-TX/1000Base-T (RJ-45), 1 x USB Type A, 1 x console – mini-USB Type B management, 1 x RS-232 – RJ-45 management, 1 x 10Base-T/100Base-TX – RJ-45 management
- Expansion Slots: 1 (total) / 1 (free) x expansion slot
Memory
- Standard Memory: 256 MB
- Memory Technology: DRAM
- Flash Memory: 128 MB
Power Description
- PoE (RJ-45) Port: Yes
- Power Source: Power Supply
- Power Redundancy: Optional
- Voltage Required: AC 120/230 V
- Frequency Required: 50/60 Hz
- Redundant Power Supply Supported: Yes
Environmental Parameters
- Min Operating Temperature: 23 °F
- Humidity Range Operating: 5 – 95% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
Outline, the Cisco WS-C3560X-24P-S Catalyst 3560-X Series Ethernet Switch stands out as a versatile and high-performance solution for modern networking needs. With its robust design, PoE+ capability, manageability features, and advanced security measures, it caters to the requirements of diverse industries. The switch’s scalability, energy efficiency, and reliability make it a valuable asset for businesses aiming to build resilient and efficient network infrastructures. Whether deployed in small offices or large enterprises, the Cisco WS-C3560X-24P-S proves to be a reliable and future-ready networking solution.
