Description

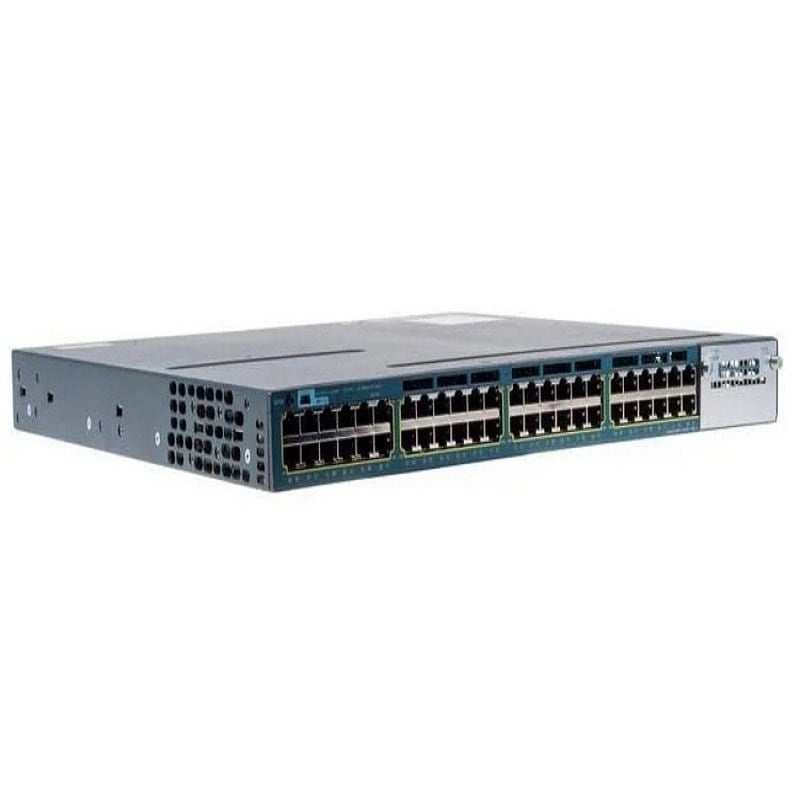

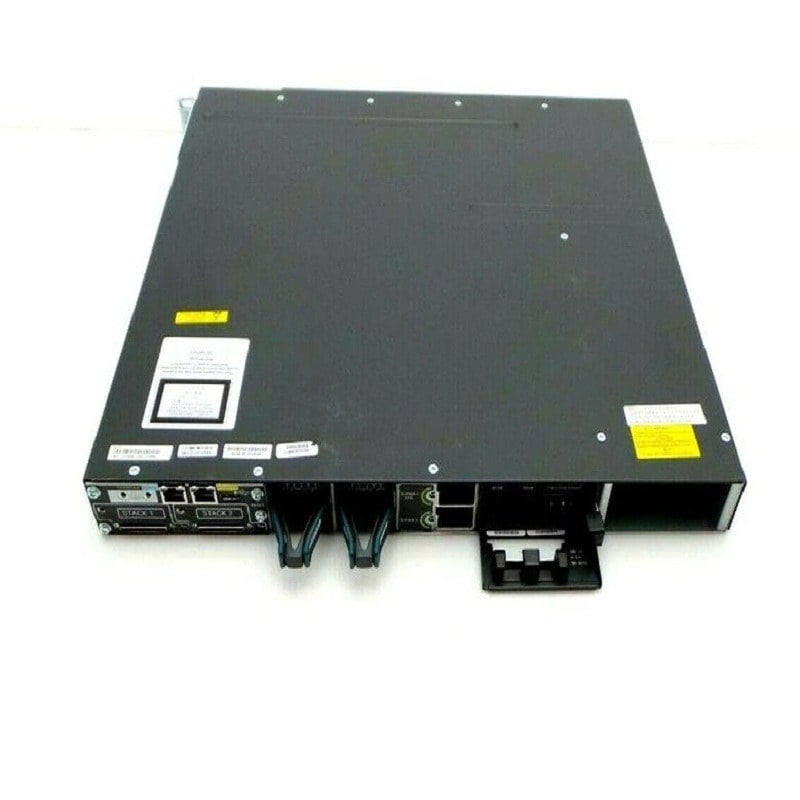

Understanding the WS-C3560X-48T-L Catalyst Switch
The WS-C3560X-48T-L Catalyst switch is a powerful networking device designed to meet the demands of modern business environments. In this detailed explanation, we will delve into the various features and specifications of this switch, breaking down its capabilities. Whether you’re a seasoned IT professional or someone looking to understand the basics of networking equipment, this description aims to provide comprehensive insights.
Key Features of Cisco WS-C3560X-48T-L Catalyst 48 Ports Switch Port Configuration
The WS-C3560X-48T-L is equipped with 48 ports, offering flexibility in connecting various devices to the network. These ports support 10-100-1000Base-T RJ-45 connections, allowing for seamless integration of devices with different speed requirements.
USB 2 Expansion Slot
The inclusion of a USB 2 expansion slot enhances the switch’s capabilities by enabling additional connectivity options. This slot can be used for various purposes, such as connecting external storage devices or adding supplementary interfaces to meet specific network needs.
10G Uplink
With data transfer requirements escalating in modern networks, the WS-C3560X-48T-L addresses this demand with its 10G uplink capabilities. This high-speed uplink ensures swift data transfer between switches and facilitates the efficient handling of large volumes of data.
LAN Base Layer 2
The switch operates on a LAN Base Layer 2, providing fundamental functionalities for local area network operations. This includes features like VLAN support, spanning tree protocols, and multicast routing, enhancing the overall efficiency and organization of network traffic.
Rack-Mountable 1U Design
Designed with practicality in mind, the WS-C3560X-48T-L comes in a compact rack-mountable 1U form factor. This space-saving design is ideal for data centers and network cabinets where optimizing space is crucial. The rack-mountable nature also simplifies installation and maintenance.
Ethernet Manageability
Ethernet manageability is a cornerstone feature of the WS-C3560X-48T-L. This allows network administrators to have precise control over the switch’s configurations, ensuring that it aligns with the specific requirements of the network. This manageability is crucial for maintaining a secure and efficient network environment.
Data Management Capabilities
The WS-C3560X-48T-L is not just a conduit for data transfer but a robust data management tool. Its features include Quality of Service (QoS) settings, which prioritize certain types of data for a smoother and more efficient network experience. Additionally, the switch supports features like port mirroring and access control lists, contributing to enhanced data control and security.
Use CasesEnterprise Networks
In large enterprises where a multitude of devices needs to be interconnected, the WS-C3560X-48T-L proves its worth. The abundance of ports, coupled with a high-speed 10G uplink, ensures that the switch can handle the data traffic efficiently. Its Ethernet manageability further allows network administrators to fine-tune configurations to meet the specific needs of the enterprise network.
Data Centers
Data centers demand reliability, speed, and efficient space utilization. The WS-C3560X-48T-L, with its rack-mountable 1U design, addresses these requirements effectively. The switch’s 10G uplink is especially beneficial in data centers where large volumes of data need to be transferred swiftly between servers and storage units.
Educational Institutions
In educational settings, where a diverse range of devices, from computers to multimedia equipment, need to be connected to a network, the WS-C3560X-48T-L excels. Its LAN Base Layer 2 ensures a well-organized network, and the abundance of ports caters to the varied connectivity needs of educational institutions.
Small to Medium Businesses (SMBs)
For SMBs, the WS-C3560X-48T-L strikes a balance between performance and scalability. Its 48 ports offer ample connectivity for growing businesses, and the USB 2 expansion slot provides flexibility for future expansion. The switch’s Ethernet manageability is an added advantage for SMBs with limited IT resources.
High-Performance
The WS-C3560X-48T-L is a high-performance, reliable switch from the Cisco Catalyst 3650X series.
In terms of performance, the switch offers 48 Gigabit Ethernet ports and 4 x 10 Gigabit Ethernet uplinks. This provides high-speed network connectivity for enterprise, mid-sized, and branch offices. It also supports advanced Quality of Service (QoS) features, such as per-user rate limiting and traffic shaping, to help ensure optimal performance for time-sensitive applications like voice and video.
Additionally, it can stack up to 9 switches together using Cisco StackWise-160 technology and reach a stack bandwidth of 40 Gbps which will help to improve the data transfer between the switches.
In terms of reliability, the switch supports advanced security features, including access control lists (ACLs) and Cisco Identity-Based Networking Services (IBNS). The switch also supports features like EnergyWise which will help to monitor and control the energy consumption of the switch and can help to reduce energy costs and Network-wide visibility and control for both wired and wireless devices through the Cisco DNA center which will help to monitor and troubleshoot the network easily.
It also supports redundant power supply options, which helps to ensure continuous power to the switch even in the event of a power failure, which will help to improve the overall reliability of the network.
All these features will help to improve the network performance and reliability for the model Cisco Catalyst 3650X 48 Ports Ethernet Switch.
Resiliency and High Availability
Resiliency and high availability refer to the ability of a network to continue operating even in the event of component failures or other disruptions. The WS-C3560X-48T-L Cisco Catalyst 3650X 48-port Ethernet switch is designed to provide resiliency and high availability through some features and technologies.
One of the key features for resiliency and high availability is the support for Cisco StackWise-160 and StackPower technology. StackWise-160 allows for up to 9 switches to be connected in a ring topology with 40 Gbps of Stack bandwidth, this allows for a single management domain and fast convergence. StackPower provides power sharing among all the switches in the stack, this allows for a power redundancy, to minimize the impact of a power supply failure.
Another feature that enhances resiliency and high availability is the support for Redundant Power Supply (RPS), which allows to connection of an additional power supply to the switch as a backup in case the primary power supply fails. In addition, the switch supports advanced security features like access control lists (ACLs) and Cisco Identity-Based Networking Services (IBNS) to protect the network from unauthorized access and to improve the overall security of the network.
The switch also supports advanced Quality of Service (QoS) features, such as per-user rate limiting and traffic shaping, which can help to ensure optimal performance for time-sensitive applications like voice and video. This can help to minimize the impact of network congestion or other performance issues on these types of applications.
Finally, the switch supports EnergyWise technology which helps to monitor and control energy consumption of your network devices and can help you reduce energy costs and extend the life of the device.
Altogether, these features and technologies help to ensure that the model Cisco Catalyst 3650X 48-port Ethernet switch provides a resilient and highly available network that can continue to operate even in the face of component failures or other disruptions.
General Information about the Cisco WS-C3560X-48T-L 48 Ports Switch
- Manufacturer: Cisco
- Model Number or SKU# WS-C3560X-48T-L
- Product Line Catalyst
- Product Series 3560-X
- Product Type: Ethernet Switch
Interfaces/Ports for 48 Ports Ethernet Switch
- Total Number of Network Ports: 48
- Number of PoE (RJ-45) Ports: 48
- Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
Performance of Managed Switch
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Switching capacity: 160 GBPS
- Forwarding Rate: 101.2 Mpps
- Jumbo Frames: 9216 Byte
- VLAN IDs: 4000
- Max VLANs: 1005
- Max SVIs: 1000
I/O Expansions Catalyst Layer 2 Switch
- Number of Total Expansion Slots: 2
- Expansion Slot Details: (s) 1 (total) / 1 (free) x Expansion Slot
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
- Spanning tree protocol: Yes
- Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
Memory
- Standard Memory: 256 MB
- Flash Memory: 64 MB Flash
- Memory Technology: DRAM
Power Description
- Input Voltage: 110 V AC
- Input Voltage: 220 V AC
- Input Current: 4-2 A
- Output Rating -56V-6.25A
- Power Device Type: AC Power Supply
- Output Power: 350W
Environment Parameter
- Operating temperature (T-T): -5 – 40 °C
- Storage temperature (T-T): -40 – 70 °C
- Operating relative humidity (H-H): 5 – 95%
- Operating altitude: 0 – 3000 m
- Non-operating altitude: 0 – 4000 m
Miscellaneous
- Electromagnetic compatibility: FCC, EN 55022B, VCCI, AS/NZS 3548, KCC, CE, GOST
- MTBF 186,778 hour(s)
- Compliant Standards: CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
In summary, the WS-C3560X-48T-L Catalyst Switch is a robust and versatile solution for modern networking needs. With its array of features, including 48 ports, a 10G uplink, a USB 2 expansion slot, and Ethernet manageability, this switch caters to a wide range of applications. From enterprise networks to data centers and educational institutions, the WS-C3560X-48T-L provides the performance and flexibility required in today’s dynamic and data-intensive environments. Its ease of installation and ongoing manageability make it a practical choice for organizations looking to enhance their network infrastructure.
